Product Details:
|
| Product Name: | Ultrasonic Welding Horn | Material: | Ultrasonic Welding Horn |
|---|---|---|---|
| Size: | 145*15mm | Voltage: | 220V 50Hz |
| Welding Area: | 6-8mm | Usage: | Ultrasonic Horn Sonotrode |
| Weight: | 0.5kg | Function: | Ultrasonic Welding |
| High Light: | SKD11 Steel Ultrasonic Welding Horn,145*15mm Ultrasonic Welding Horn,1.5kg Ultrasonic Welding Horn |
||

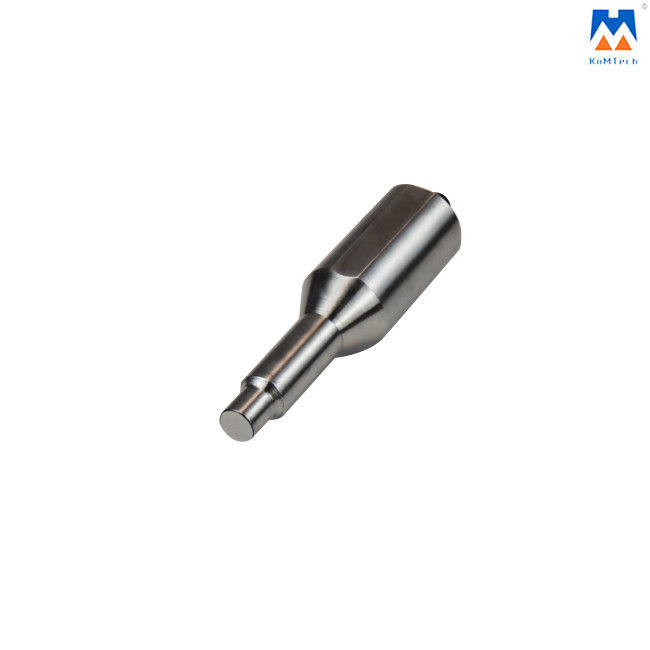

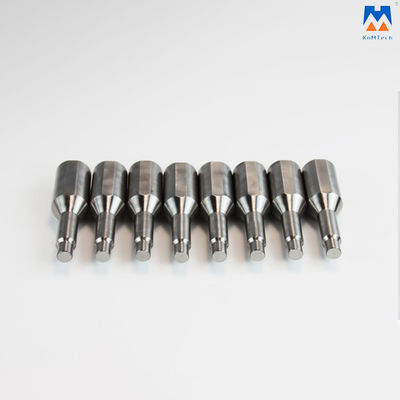

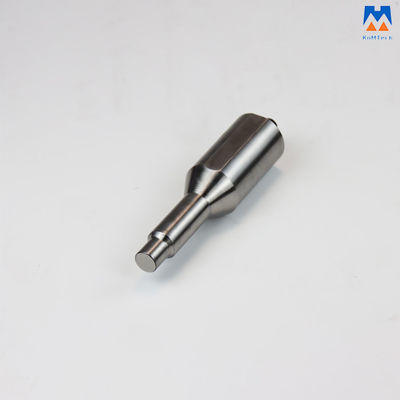

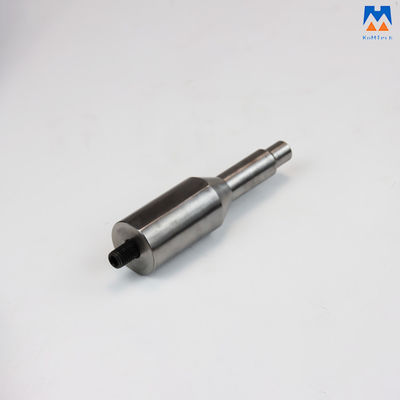

SKD11 steel Ultrasonic Welding Horn, Ultrasonic Tooling
Technical parameters:
| Product Name | 20KHz Ultrasonic Welding Horn |
| Voltage | 220V 50Hz |
| Frequency | 20KHz |
| size | 145*15mm |
| Welding Area | 6-8mm |
| Weight | 0.5kg |
| Function | for ultrasonic welding, sealing |
| Color | Metal Color |
| Usage | Ultrasonic Horn Sonotrode |
When the ultrasonic wave acts on a thermoplastic parts contact surface, it will produce tens of thousands of high-frequency vibration per second. This high-frequency vibration reaches a certain amplitude, and the ultrasonic energy is transmitted to the welding area through the upper welding horn/mold. Due to the large acoustic resistance at the interface of the two welding parts, a local high temperature will be generated.
Due to the poor thermal conductivity of the plastic, the temperature can't timely send out for a while, it gathered in the welding area, making two plastic contact rapidly melting, coupled with a certain pressure, making them merging into one. When ultrasonic stop function, and keep the pressure for a few seconds, make them solidification molding, forming a strong chain, then achieve the purpose of welding, the welding strength can close to the raw material strength.
We are making various kinds of ultrasonic welding horns or sonotrodes as it is so-called, to accomplish the welding task in various conditions. Aluminum, steel, titanium are the most popular materials we use for making horns.
There are three common horn materials:
A. Titanium
high price, excellent performance good toughness and low loss, difficult to be processed;
Its amplitude can reach 60mm.
B. Aluminum
low price, fast loss, easy to be processed;
Its highest amplitude of less than 300mm.
C. Steel
too hard to be made as horn;
its highest amplitude less than 25mm;
It is suitable for cutting but the blowpipe needs to be added in for its cooling.
FAQ:
1.How about MOQ?
Customers can order according to demand
2. How about your delivery time of the ultrasonic sonotrode?
From 3 to 15 days depending on the material to be used and the processing technologies.
3.What is your payment method for the ultrasonic welding horns?
100% T/T will be paid in one lump sum before delivery.
