Product Details:
|
| Product Name: | 20kHz Ultrasonic Welding Transducer | Frequency: | 20KHz |
|---|---|---|---|
| Frequency Range: | 19.7-20KHz | Input Power: | 2500W |
| Resistance Range: | <15 | Capacitance Range: | 11-12 |
| Welding Area: | Customize | Keyword: | Ultrasonic Welding Machine |
| Condition: | New | Usage: | Plastic Welding |
| High Light: | Ultrasonic Welding Transducer,piezo ultrasonic transducer |
||

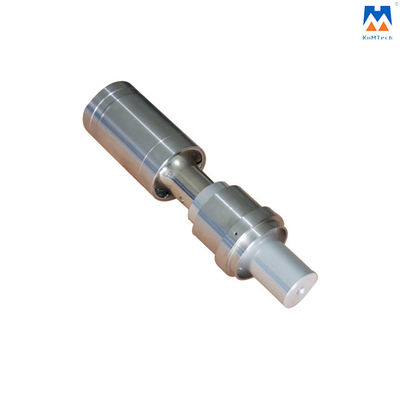

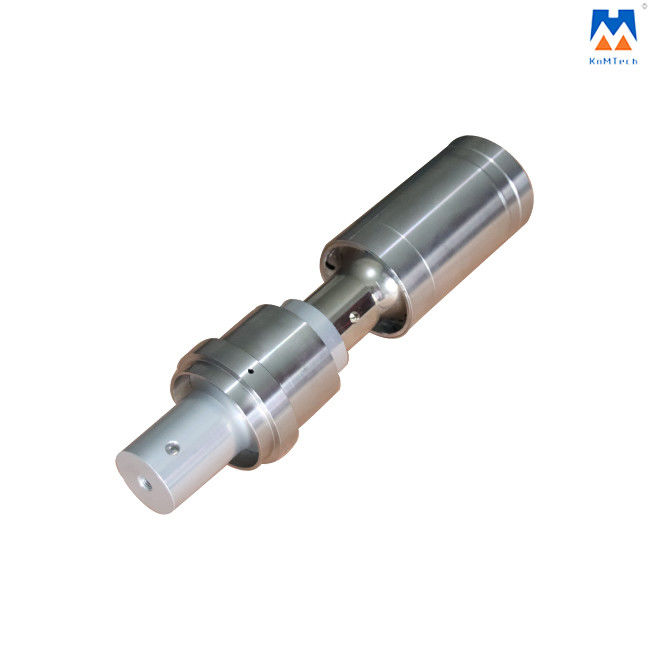

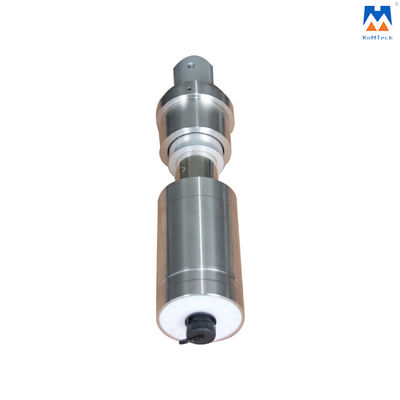

The ultrasonic converter is the core component of the ultrasonic vibration system, it converts the high-frequency electrical energy generated by the ultrasonic generator into mechanical vibration energy, and via booster, it amplifies the amplitude and energy accumulation, and finally reaches to we welding horn so as to finish the plastic welding purpose.
There are mainly two types of ultrasonic converter, the converter we are using is the type of piezoelectric ceramic, the converter material is aluminum, and the booster could be titanium or aluminum, using an American-style screw. The ultrasonic converter K&M tech provides could be used for the replacement of the Brandson type converter, and they are very popular with European & American clients.
Technical parameters:
| Product Name | 2500W Ultrasonic Welding Transducer |
| Frequency | 20KHz |
| Frequency Range | 19.7-20KHz |
| Input Power | 2500W |
| Material | Stainless Steel |
| Material of Booster | Aluminum alloy |
| Resistance Range | <15 |
| Capacitance Range | 11.0-12.0 |
| Transducer shape | Poured horn |
| Working Environment Temperature | -10 ~ 60 ºC |
| Size of Screw | M3/8-M12 |
| Diameter of Ceramic | 50mm |
| Chip Color | Yellow |
Features:
1. Using Piezo ceramics transducer, which is with stable output;
2. With an excellent circuit, easy to operate;
3. With handle style, less capacity, less occupation;
4. With various welding techniques in riveting, point welding, circular point;
5. With a full set of excellent components;
FAQ:
1.What's your MOQ?
Usually, we don't limit a MOQ for testing, just decide the QTY by yourself.
2. How about your delivery time?
Usually, we have some stock for trial or small orders, so just deliver them within 7 days, while, 15-25 days for large order and customized production line.
1-2 units we could send by EXPRESS(DHL, UPS, FedEx, TNT, EMS), for weight more than 50kg, we suggest to use sea freight LCL or by air
3. How can I get your price and catalog?
Please E-mail us or call us to give your contact information(your name, email address, company name and website)
4. Can we agent your transducers in our country or city?
Of course. We are looking for a sole agent in the Country who has the willingness to cooperate with us for long business term.
5. How about payment?
100%T/T in advance before shipment.
Detailed Photos:
