Product Details:
|
| Product Name: | 20KHz 3000W Ultrasonic Welding Transducer Converter Booster | Frequency: | 20KHz |
|---|---|---|---|
| Input Power: | 3000W | Frequency Range: | 19.7-20KHz |
| Quantity Of Ceramic: | 4 | Resistance Range: | <15 |
| Capacitance: | 22-23.5NF | ||
| High Light: | 3KW Ultrasonic Welding Converter,ultrasonic 20khz converter,3KW 20 khz ultrasonic transducer |
||
20kHz ultrasonic transducer for plastic welding good quality
The application of ultrasonic transducer is very wide, per the different industry, it could be divided into the application in agriculture, transportation, life, medical treatment, and military, etc. According to the functions of the realization of ultrasonic processing, it could be divided into ultrasonic cleaning, ultrasonic detection, monitoring, telemetry, remote control, and so on; Per the working environment, it could then be divided into liquid, gas, organism, etc., By nature, it could be divided into power ultrasonic, ultrasonic detection, ultrasonic imaging and more.
In terms of welding material, Ultrasonic welding has mainly two categories: ultrasonic metal welding and ultrasonic plastic welding. Among them, ultrasonic plastic welding technology has been more widely used with more maturity. It uses the ultrasonic vibration generated by the transducer to transfer the ultrasonic vibration energy to the welding area through the upper welding parts. Due to the large acoustic resistance at the junction of the two welds, high temperature will be generated between the two plastic joints, adding some pressure, the plastic parts melt into each other. Ultrasonic plastic welding has realized the welding purpose where other welding methods can not reach. In addition, it also saves the expensive mold cost of plastic products, shortens the processing time, improves production efficiency, etc.
Technical parameters:
| Product Name | 3KW Ultrasonic Welding Transducer |
| Frequency | 20KHz |
| Frequency Range | 19.7-20KHz |
| Input Power | 3000W |
| Material | Stainless Steel |
| Material of Booster | Aluminum alloy |
| Resistance Range | <15 |
| Capacitance Range | 19-21NF |
| Working Environment Temperature | -10 ~ 60 ºC |
| Size of Screw | M12 |
| Diameter of Ceramic | 50mm |
| Chip Color | Yellow |
Features:
1. High-quality piezoceramics are used to make stable output;
2. Unique design for high performance.

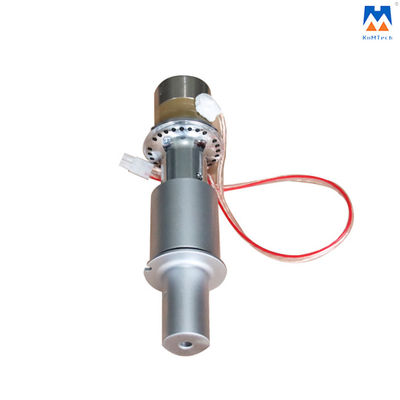

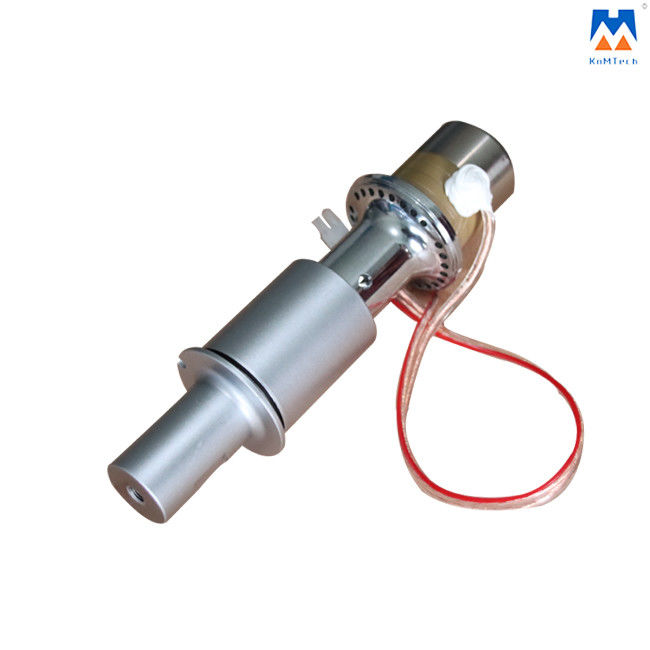

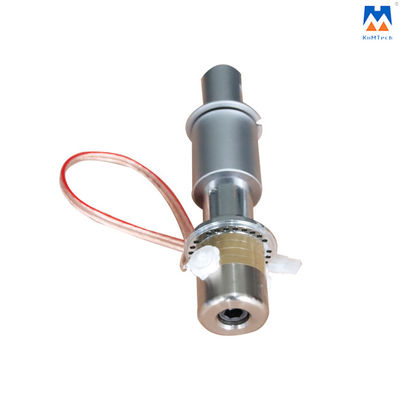

Detailed Photos:
