Product Details:
|
| Product Name: | 20KHz 3000W Ultrasonic Transducer | Frequency: | 20KHz |
|---|---|---|---|
| Input Power: | 3000W | Quantity Of Ceramic: | 6 |
| Diameter Of Ceramic: | 50mm | Size Of Screw: | M12 |
| Usage: | Plastic Welding | After-sales Service Provided: | Video Technical Support |
| Keyword: | Ultrasonic Welding Machine | Condition: | New |
| High Light: | 6 Ceramics ultrasonic piezoelectric transducer,3000 Watt ultrasonic piezoelectric transducer,M12 ultrasonic welding transducer |
||
20kHz ultrasonic transducer with high power and efficiency 3000W
Ultrasonic technology has become an internationally recognized high-tech field. With the development of science and technology, ultrasonic technology will play a more and more important role in the national economic construction of the whole world country, ultrasonic transducer is an important part of ultrasonic technology, its research and development level directly determines the development of ultrasonic technology and the extent of extensive application.
The research of ultrasonic transducer is a comprehensive technology, and its development is closely related to modern science and technology. Electronic technology, automatic control technology, computer technology, and new material technology are some important high and new technologies that affect the development level of the ultrasonic transducer.
The design of ultrasonic transducer includes (1) acoustic index design; (2) Production process design; (3) Reliability design; (4) Stability design; (5) Consistent design. The main technical indexes of ultrasonic transducer include working frequency band, transmitting voltage sensitivity, receiving voltage sensitivity, directivity opening angle, insulation resistance, and working frequency point impedance. These technical parameters affect each other, so an optimal point must be found during its designing progress.
Technical parameters:
| Product Name | 3000W Ultrasonic Piezoelectric Transducer |
| Resonant Frequency: | 20KHz |
| Input Power | 3000W |
| Maximum Amplitude: | This parameter is related to the power of the transducer, the shape of the horn and the tool head; |
| Working Mode: | continuous working or pause working. |
| Humidity Of Working Environment: | relative humidity ≤85% (non-condensing) |
| Working Environment Temperature: | -10 ~ 60 ºC |
| Material: | stainless steel |
| Diameter of Ceramic | 50 |
| quantity of ceramic | 6 |
| Size of Screw | M12 |
| Dimensions: | It depends on the customer's application environment and actual needs. |
| Weight: | 4kg |
FAQ:
1.What's your delivery term
Usually with EXW, FOB, CFR, CIF
2. How can I get your price and catalog?
Please contact us directly for product price and catalog.
3. Can we agent your transducers in our country or city?
Yes, it will be much welcomed, just contact us directly.
4. How about payment?
100%T/T in advance for small orders;50%T/T in advance as a deposit;50%T/T paid before shipment.
5. How about the quality?
Quality and after-sales service are the two things that we are proud of, we are a verified supplier on Made in China platform since 2018, been in the ultrasonic business since 2015, so we are trustworthy.

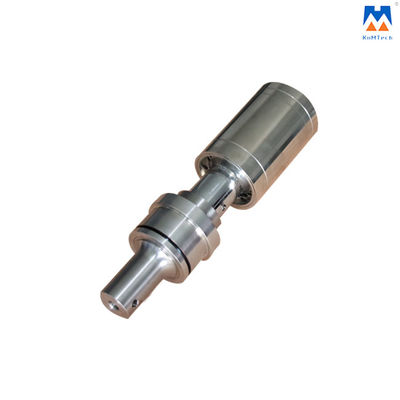

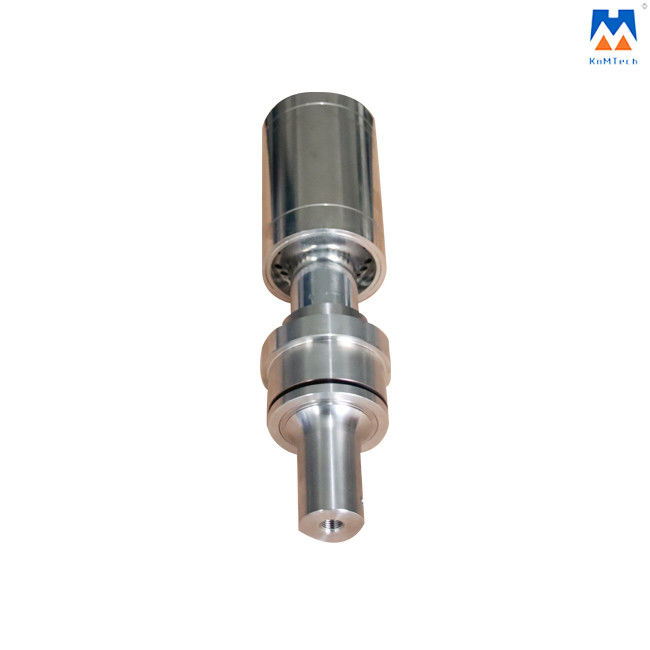

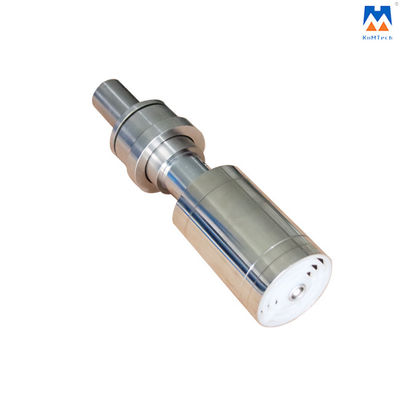

Detailed Photos:
