Product Details:
|
| Product Name: | Ultrasonic Mould For Ultrasonic Welding Machine | Frequency: | 15KHz |
|---|---|---|---|
| Material: | SKD11 Steel | Size Of Screw: | M16 |
| Weight: | 4kg | Usage: | Ultrasonic Welding,Sealing Machine |
| Welding Size: | 120*25mm | Function: | Ultrasonic Fabric Welding,plastic Welding |
| High Light: | 15Khz Stainless Steel Ultrasonic Tooling,120*25mm Ultrasonic Tooling,M16 ultrasonic welding horn |
||
15Khz SKD11 Steel Ultrasonic Tooling, Ultrasonic Horn, Ultrasonic Mould For Ultrasonic Welding Machine
Ultrasonic welding horn is the general name of all ultrasonic transmitters, it is used to couple the ultrasonic waves generated by the transducer to the processed. As the horn generates ultrasonic waves, the horn also resonates, the natural resonance frequency of the horn should match the vibrator. What's more, the amplitude should be uniform, and the shape of the end face should be suitable for the shape of the tool being welded.
Technical parameters:
| Product Name | 15Khz Stainless Steel Ultrasonic Tooling |
| Frequency | 15KHz |
| Welding size | 120*25 |
| Size of screw | M16 |
| Material | SKD11 Steel |
| Usage | for ultrasonic welding, sealing |
| Color | Black |
The material we can provide:
Aluminum alloy: this material has extremely high strength. high hardness, good heat conduction performance. it's the ideal ultrasonic mold manufacturing material.
SKD11 steel: applied in ultrasonic steel horn manufacturing, it's mainly used in the ultrasonic cutting field.
Titanium Alloy: applied in continuous vibration machines. with high tenacity, good heat conduction performance, but with extremely high production cost.

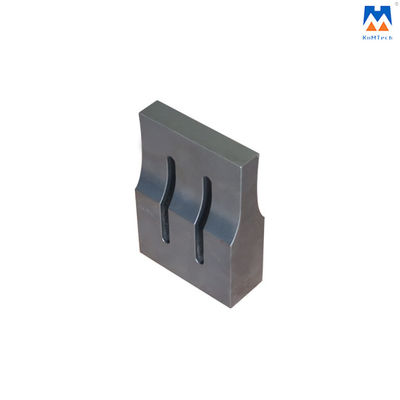

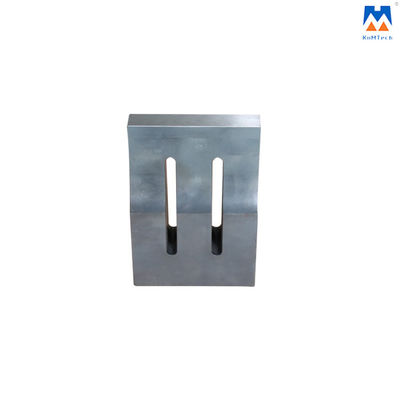

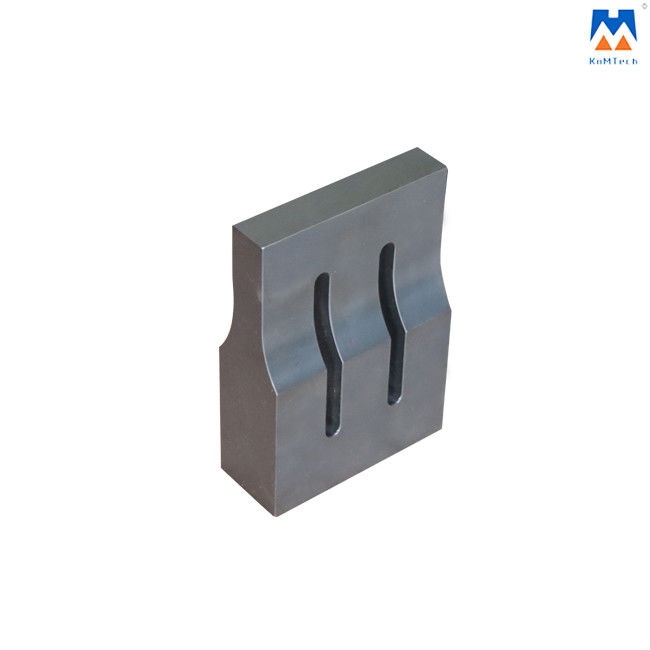

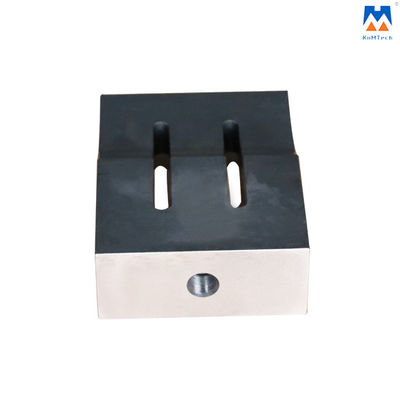

Detailed Photos:
Warehouse:
Packing:
