Product Details:
|
| Product Name: | 15KHz 4200W Digital Ultrasonic Generator | Frequency: | 15KHz |
|---|---|---|---|
| Input Power: | 4200W | Capacitance: | 21nf |
| Power Fluctuation: | ≤ 5% | Warranty: | 1 Year |
| Usage: | Plastic Welding,ultrasonic Welding | Voltage: | AC220V |
| Welding Area: | Customized | Color: | As Picture Or Customized |
| High Light: | 4200W Ultrasonic Power Supply,15KHz Ultrasonic Power Supply,21NF ultrasonic power generator |
||
15KHz 4200W Digital Ultrasonic Welding Generator, Ultrasonic Power For Plastic Welding
Our ultrasonic generators adopt an all-digital circuit design, automatic frequency tracking, no need to adjust the frequency when changing the horn, the internal circuit of the generator automatically matches the ultrasonic system frequency, power, frequency, current, energy LCD screen display. The ultrasonic output amplitude is 50% 100% step-less adjustable, suitable for different welding needs. The ultrasonic generator system is equipped with a clock scanning monitoring system to monitor the working state of the ultrasonic at all times and make corresponding adjustments.
Technical parameters:
| Product Name | 15KHz 4200W Ultrasonic Power Supply |
| working frequency | 15KHZ |
| rated power | 4200W |
| Frequency Range | 14.40-15.20KHz |
| Capacitance | 21nf |
| Operating Voltage | 220V+-10% |
| Gas source | Standard/program control/switch/long vibration |
| System language | Chinese /English |
| weight | 6.5KG |
Features:
1. Welding amplitude 10%-100% adjustable (1% accuracy)
2. Amplitude compensation
3. Mold impedance analysis + protection
4. Overload protection
5. Voltage protection (input)
6. Transducer voltage protection
7. 485 communication
8. 4-core 32-bit processor
Application:
Nonwoven machinery, such as nonwoven bag making machine, nonwoven surgical cap making machine, nonwoven bouffant cap making machine, nonwoven face mask making machine, ultrasonic plastic welding machine, Three layers bag making machines, plastic bag making machine, stationery, machinery, automation equipment, auto welding, etc.
FAQ:
1.How about your delivery time?
Generally,3-7 days after receiving your payment, delivery time depends for large orders.
2.How do you guarantee your production quality?
We take the delivery tests with our professional QC team before shipment.
3.Can I have my LOGO on my products?
Yes, we can offer LOGO silk-screen, LOGO fee could be free while order quantity reaches the requirement.
4.How long is your warranty?
Generators last for 12 months.
5.How about the package?
Foam, paper box, and wooden box to protect products.
6.How could I make the payment?
Paypal, T/T, Western Union are the most popular methods.

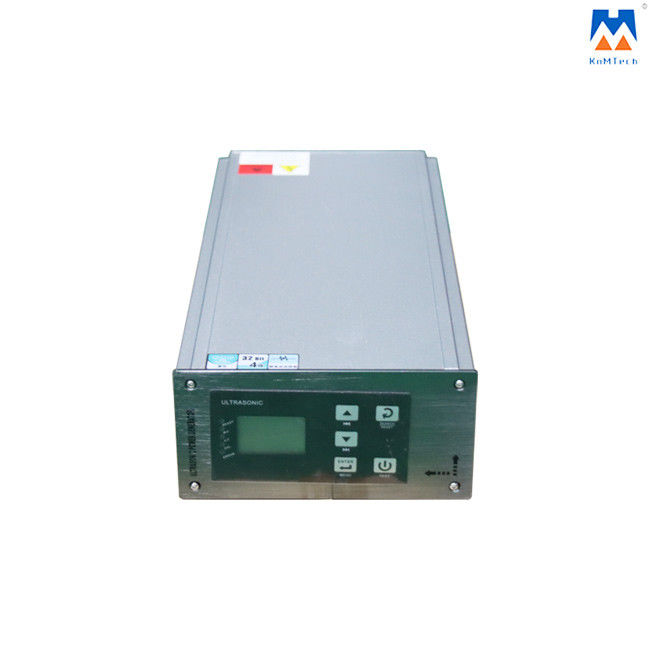

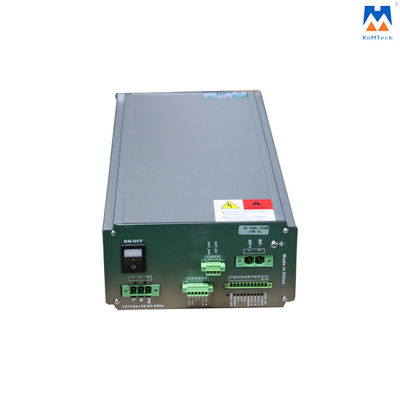

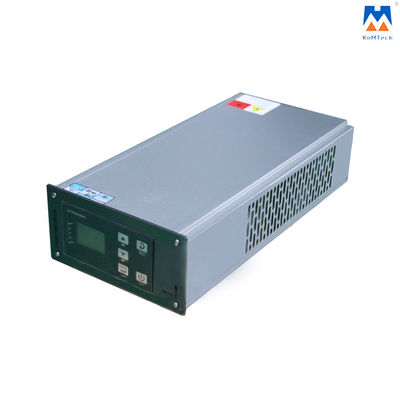

Detailed Photos:
Packing:
