Product Details:
|
| Product Name: | 2000W Ultrasonic Welding Generator | Frequency: | 20KHz |
|---|---|---|---|
| Input Power: | 2000W | Power Supply: | AC220V 50Hz |
| Power Fluctuation: | ≤ 5% | Warranty: | 1 Year |
| High Light: | AC220V 50Hz Ultrasonic Welding Generator,16NF Ultrasonic Welding Generator,2000W ultrasonic vibration generator |
||
20KHz 2000W 16NF Ultrasonic Welding Generator Ultrasonic Power For Ultrasonic Welding Machine
Ultrasonic welding is based on an application of the ultrasonic vibration (sound waves) vibration transmitted to the plastic welding joint, the process of friction heat production leads to material melt adhesive. Standard ultrasonic welding system includes a generator (power source) and a set of triple pieces (one transducer, one booster(amplitude modulator), and a welding horn/mold). The ultrasonic generator box provides the correct electrical signals to the transducer, and is responsible for the process control, while the transducer converts the power signal into mechanical longitudinal vibrations, which are transmitted to the welding horn/mold and ultimately to the welding material.
The ultrasonic generator is equipped with a clock scanning monitoring system which will monitor the working state of the ultrasonic at all times and make corresponding adjustments automatically. With multiple protections of current frequency, temperature and phase, the protection function is sensitive and reliable. The 20KHz 2000W ultrasonic welding generator has three working modes, you can adjust the setting according to different products.
Technical parameters:
| Product Name | 2000W Ultrasonic Welding Generator |
| Frequency | 20KHz |
| Trigger mode | delay |
| Power | 2000W |
| Steady output | 200-240VAC |
| Welding modes | time, energy, and grounding |
| Capacitance | 16NF |
| Dimension | 47*26*16.5 |
| Weight | 6.5kg |
Features:
1. Automatic frequency tracking system
2. Ultrasonic constant amplitude output
3. The ultrasonic welding generator has an overload protection system
4. LCD visual output displays multiple parameters for the timely understanding of welding status
5. Multiple splicing modes and monitoring window (optional function)
6. Adopts imported electronic components, hardcover.
7. Chinese/English languages are available.
For more details, welcome to visit our generators catalog below:
Catalog of KnmTech Ultrasonic Generators.pdf
Application:
FAQ:
1.What's your MOQ?
Usually, we don't limit a MOQ for testing, just decide the QTY by yourself.
2. What's the warranty of your ultrasonic welding generators?
One-year Warranty with no human damage.
3. How can I get your price and catalog?
Please E-mail us or call us to give your contact information(your name, email address, company name, and website)
4. Can we agent your ultrasonic generators in our country or city?
Of course. We are looking for sole agents who are willing to cooperate with us for the long business term.

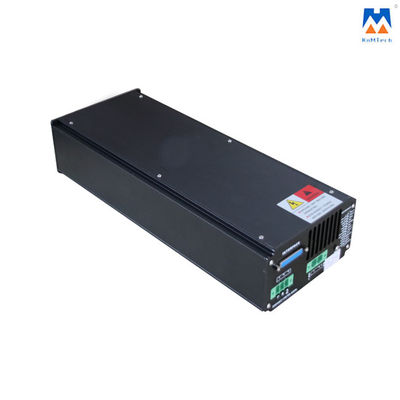

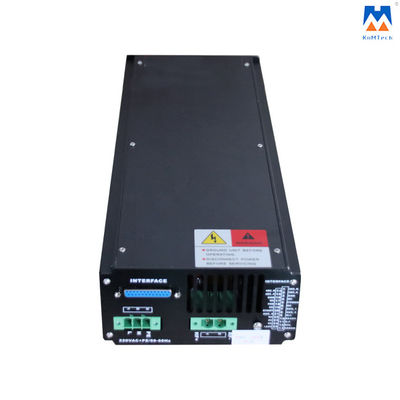

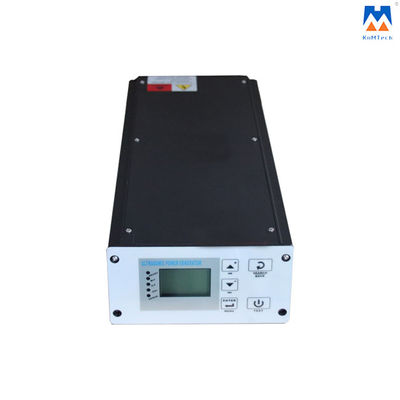

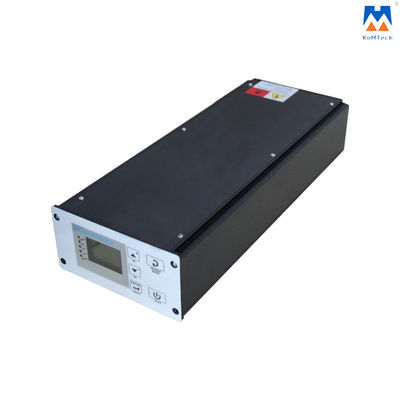

Detailed Photos:
