Product Details:
|
| Product Name: | Standard Digital Ultrasonic Generator | Output Power: | 0-2500w |
|---|---|---|---|
| Power Supply: | AC220V 50Hz | Usage: | Plastic Welding,Ultrasonic Plasitc Welder For ABS PP PE PC Material,ultrasonic Welding |
| Frequency: | 20KHz | After-sales Service Provided: | Online Support,Video Technical Support |
| Weight: | 6.5kg | Dimention: | 47*26*16.5cm |
| High Light: | 20khz ultrasonic generator,2500W 20khz ultrasonic generator,2500w Digital Ultrasonic Generator |
||

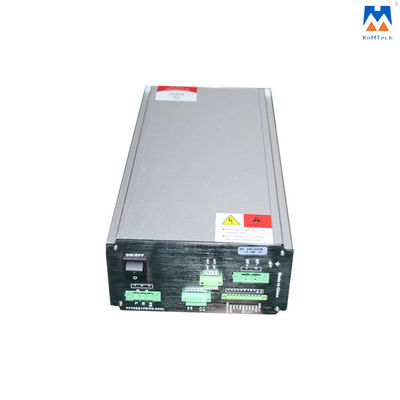

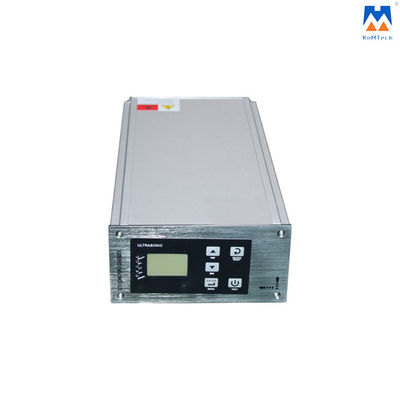

20khz 2500w standard horizontal type digital ultrasonic generator power supply
This is the 20khz 2500w standard horizontal type digital ultrasonic generator. The ultrasonic generator is designed for convenient use in customized welding or food cutting machines. The generator has the auto-tuning function and amplitude compensation function. It has three welding modes: time, energy, and grounding which is designed for different applications. The warranty of the ultrasonic generator is one year.
Technical parameters:
| Product Name | Digital Ultrasonic Generator |
| Frequency | 20KHz |
| Trigger mode | delay |
| Power | 2500W |
| Steady output | 200-240VAC |
| Welding modes | time, energy, and grounding |
| 4-core 32-bit processor | |
| Segmented amplitude function is available | |
| Welding amplitude 10-100% adjustable (1% accuracy) | |
* Real-time frequency automatic tracking function.
* Welding modes: time, energy, and grounding.
* Amplitude division function. Welding amplitude 10-100% adjustable (1% accuracy)
* Mold impedance analysis+protection
* Overload protection.
* 485 communication port.
* 4-core 32-bit processor.
Usage:
| Automotive: | Auto and motorcycle plastic parts, car mats welding, automotive bumper repair welding, cotton insulation doors, seat wipers, engine cover, radiator cap spot, etc |
| Electronics: | Recording, audiotape boxes and core wheel, disk enclosure, switches and sockets, remote control, electronic swatter, etc |
| Home appliances: | Balance ring, electronic clock, steam iron water tank, electric kettle air-Hsiang, etc |
| Toy: | plastic toys, aquatic life video game, plastic gifts, etc |
| Packaging: | Plastic pallet, hollow crate welding, etc |
| Medical: | Surgical Instruments, filters,I-V units, insulated trays, etc. |
Warehouse:
Packing:
