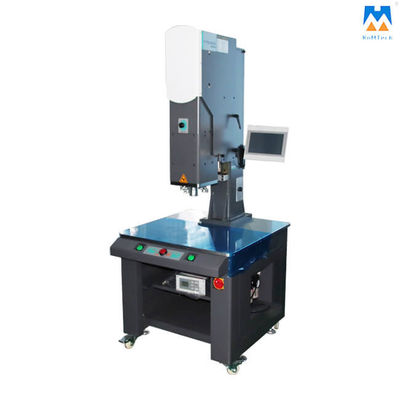

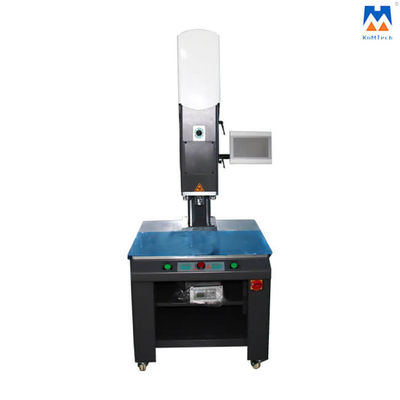

High Presicion Plastic Ultrasonic Welding Machine Ultrasound Welder PTS2000 Series

High Presicion Plastic Ultrasonic Welding Machine Ultrasound Welder PTS2000 Series
High Presicion Plastic Ultrasonic Welding Machine Ultrasound Welder PTS2000 Series
High Presicion Plastic Ultrasonic Welding Machine Ultrasound Welder PTS2000 Series High Presicion Plastic Ultrasonic Welding Machine Ultrasound Welder PTS2000 Series High Presicion Plastic Ultrasonic Welding Machine Ultrasound Welder PTS2000 Series High Presicion Plastic Ultrasonic Welding Machine Ultrasound Welder PTS2000 Series High Presicion Plastic Ultrasonic Welding Machine Ultrasound Welder PTS2000 Series

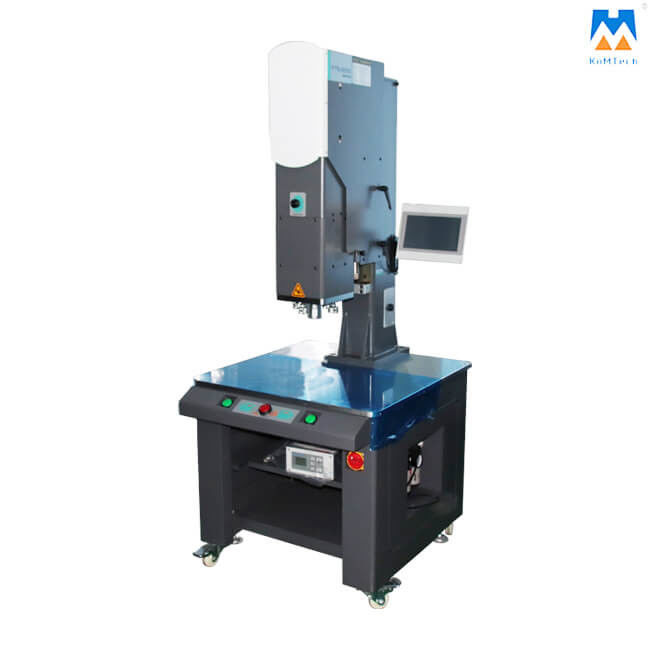

Large Image :  High Presicion Plastic Ultrasonic Welding Machine Ultrasound Welder PTS2000 Series

Product Details:
Place of Origin: China
Brand Name: KnMTech
Model Number: KM-PTS2000-1542
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: wood carton
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 sets per month

High Presicion Plastic Ultrasonic Welding Machine Ultrasound Welder PTS2000 Series

Description
Product Name: 4200W Ultrasonic Plastic Welder Frequency: 15KHz
Air Pressure Rate: 0.2-0.7MPa Power: 4200W
Cooling Way: Air Cooling Lift Mode: Electrical Control
Horizontal Adjustment Board: L800*W900 Welding Mode: Time ,energy,grounding
High Light:

PTS2000 Ultrasound Welder

,

4200W sonic welding plastic

,

0.7MPa Ultrasonic welding Machine

15KHz 4200W Ultrasonic Plastic Welding Machine For Plastic Welding PTS2000 Series



Description:



As the backbone of the ultrasonic welding machine products, this series of products integrate a variety of precision control techniques, including welding machine balancing system/horizontal adjustment system, linear slide rail lifting system, micrometer positioning system, mechanical pressure sensors, to meet the requirements of the complex welding work environment and diverse needs of customers.



At the same time, this series of full-system standards are equipped with a new generation of digital ultrasonic generators, 7-inch outside touch screens, electronic lifting systems, to achieve a higher cost performance.



Technical parameters:

Product Name Ultrasound Plastic Welder PTS2000

Voltage

AC 220V 50/60HZ

Dimensions (WxHxD) [mm]

700*880*2000

Weight [kg]

280KG

Operating frequencies* [kHz]

15KHZ

Welding head operating stroke [mm]

100mm

Air pressure rate[MPa]

0.2-0.7MPa

Power [W]

4200W

Processor

4-core, 32-bit processor

Time Mode

0.001-9.999 Seconds

Welding amplitude

10%-100% adjustable(1% accuracy)

Welding mode

Time, Energy, grounding

Energy Mode

Integrated

Temperature

-10ºC--40ºC



Different models are available:



Frequency Power Work Stroke Lifting Mode Voltage Air Source
15kHz 2600W 75MM electric control 220V±10% 2kgf-8kgf
15khz 3200W 75MM
15khz 4200W 100MM
20kHz 2500w 75MM
20kHz 3000w 75MM
30KHz 1200W 75MM
35KHz 1200W 75MM
40KHz 800W 75MM

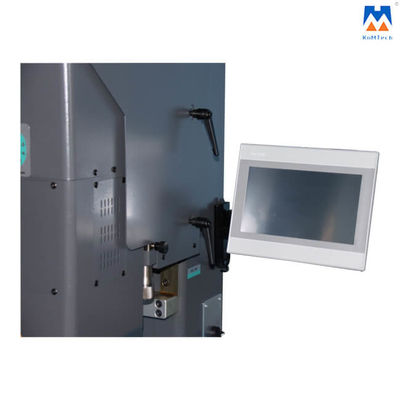

Operation interface:7 inches touch screen


Features:



1.  The ultrasound welder has three welding modes: time, energy, grounding;

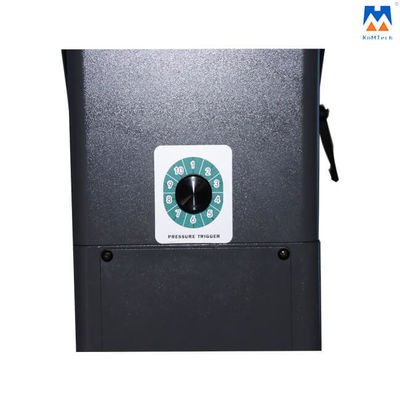

2.  With two trigger Modes: delay, pressure;

3.  Three Amplitude managements: staged amplitude, adjusted amplitude, compensated amplitude;

4.  Quality management: time, energy;

5.  Safety managements: power overload protection, supply voltage protection, transducer voltage protection;

6.  This ultrasonic plastic welding machine is stable with high performance.



Application:



Electronic industry The gum case of watch, nylon watch band, calculator, sound box wraps hull, cell phone battery etc.
Toy industry Such as toy gun, water gun, telephone and rag baby etc.
Automotive industry Car light, automotive interior parts etc.
Packing industry Disguise box, PVC packing box, toothpaste tube etc.
General business ware The inkjet cartridge, video cassette rack, tape box, computer disk etc.
Medical industry Widely used in the medical industry due to the fast,clean,efficient of ultrasonic welding machine.


For more details about our ultrasonic plastic welders, welcome to click the catalog below:



Catalog of Ultrasonic Welding Press.pdf





Detailed Photos:


High Presicion Plastic Ultrasonic Welding Machine Ultrasound Welder PTS2000 Series 0

Warehouse:
High Presicion Plastic Ultrasonic Welding Machine Ultrasound Welder PTS2000 Series 1
Packing:
High Presicion Plastic Ultrasonic Welding Machine Ultrasound Welder PTS2000 Series 2
