Product Details:
|
| Product Name: | 2800W Ultrasonic Converter | External Dimension: | 44cm(L)X32CM(w)X15cm(H) |
|---|---|---|---|
| Max Output Power: | 2800w | Operating Ambient Temperature: | +5°C To +50°C |
| Sine Harmonic Parameters: | ≥97% | Working Frequency: | 20khz |
| Working Power Supply: | AC220V 50Hz | Automatic Frequency Precision: | ±5HZ |
| High Light: | 2800W Ultrasonic Power Transducer,20khz ceramic ultrasonic transducer,2800W piezoelectric ultrasonic transducer |
||

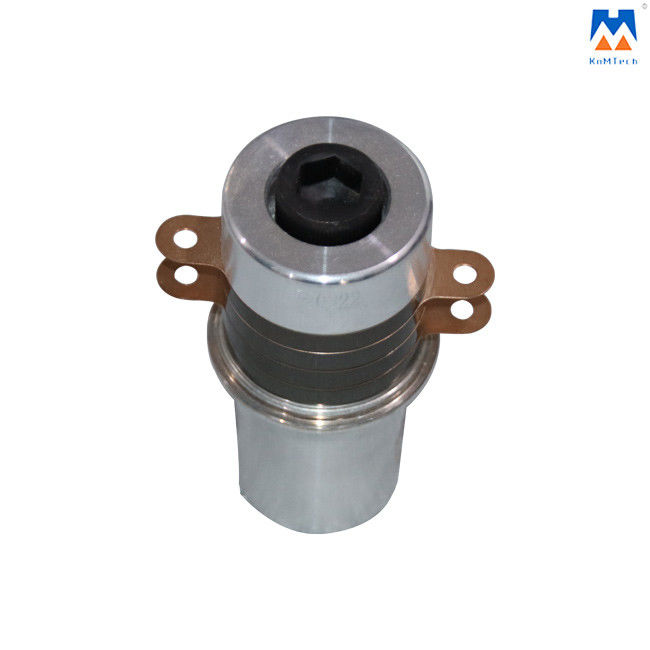

2800W ultrasonic converter 4 ceramics low impedance high efficiency.
The ultrasonic converter from K&M tech is of high quality and high efficiency. However, during the use of the converter, there are some parameter need to pay attention to:
Impedance: a good matching of impedance is required before any ultrasonic welding action, The purpose of impedance matching is to ensure signal integrity, colloquially speaking, it is to prevent the deformation of waveform generation and transmission. If impedance matching is not carried out and the sender sends a sine wave, the receiver may not receive a sine wave anymore, so that the waveform will be distorted in the time domain or the overall amplitude will change.
For piezoelectric ceramic materials, as long as the waveform has a certain peak value, it can vibrate and send out the energy, but in theory, the sinusoidal wave has the highest energy transfer efficiency, if the waveform distorts, the energy transfer efficiency of the system shall be reduced.
Frequency: The ultrasonic converters can only work at its own resonance frequency, so the ultrasonic power box, welding sonotrode should all work at the same frequency. Generally speaking, this difference should be no more than ±0.1kHz, the smaller, the better matching.
Technical parameters:
| Product Name | 2800W Ultrasonic converter |
| External dimension | 44cm(L)X32CM(w)X15cm(H) |
| Max Output power | 2800w |
| operating ambient temperature | +5°C to +50°C |
| Sine harmonic parameters | ≥97% |
| INPUT POWER FACTOR | ≥80% |
| working frequency | 20khz |
| working power supply | AC220V 50Hz |
| Mould frequency range | ±400HZ |
| Automatic frequency precision | ±5HZ |
| power stability | ≤ 5% |
| Remote terminals dynamic response | ≤10ms |
| current curoff | 15A |
| Over-current protection | 100ms |
| Temperature of overheating protection | 85℃ |
| PLC connecting | YES |
Features:
1. This type of converter has high stability;
2. Automatic frequency tracking;
3. With strong output ;
4. Amplitude adjustment;
5. Fault protection warns and fault alarm warns;
6. Maintain constant amplitude output;
7. Two welding modes are available;
8. Chinese and English Languages are available.
FAQ:
1. What is your payment method?
T/T or Paypal 100% prepayment.
2. How can I get your price and catalog?
Please contact our sales directly for catalog or price details.
3. Do you provide samples? is it free or extra?
Yes, we could offer the sample at a cost, if place big order later, we could return this fee.
4. Could you make it according to our special requirements?
Of course, please tell us your requirements and we will see if we could match.
5. How about the quality?
We have exported our converters to many other customers from all over the world with good feedback, quality ranks first in our company as well as our after-sales service.
Detailed Photos:
