Product Details:
|
| Product Name: | 15KHz Digital Ultrasonic Welding Machine | Frequency: | 15KHz |
|---|---|---|---|
| Power: | 3200W | Working Stroke: | 100mm |
| Weight: | 85kg | Welding Mode: | Time, Energy, Contact Shut-off, Absolute Depth, Relative Depth,pressure Trigger |
| Trigger Mode: | Delay,pressure,depth | Air Pressure Rate: | 0.2-0.7MPa |
| High Light: | 15KHz 3200W Ultrasonic Welding Machine,Automotive Ultrasonic Welding Machine,Real Time Tracking Ultrasonic Plastic Welder |
||

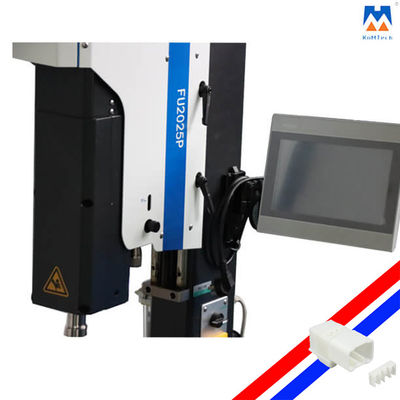

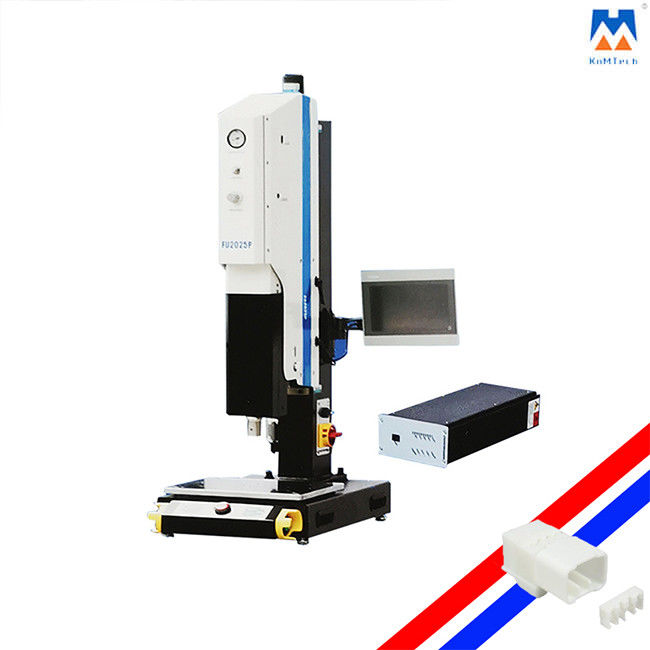

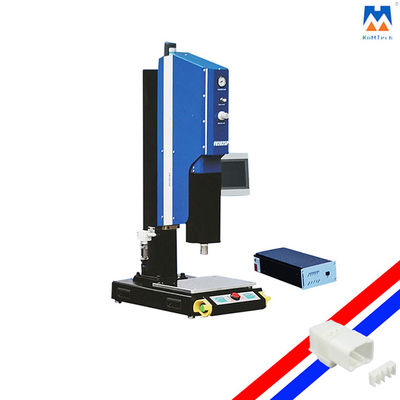

15KHz 3200W FU2025 Digital Ultrasonic Welding Machine, Ultrasonic Welding Machine For Plastic Welding
The new generation excellent series have powerful innovation ability of ultrasonic technology, realizing high adaptability, high expansibility, and high intelligence, and reaching the international standard of similar products in terms of performance and quality.
This machine has a standard intelligent circuit system, pressure sensor, 10 inches outer touch screen; Equipped with welding table balance system, micrometer-scale positioning system, linear sliding rail lifting system, grating ruler measurement positioning system; With more powerful welding management and data management system, the whole process control before, middle and after welding can be realized.
It is fully qualified for the welding task of more complex and precise welding parts in the current manufacturing field and can meet the diverse needs of customers.
Technical parameters:
| Product Name | High Precision Pneumatic Ultrasonic Welder | |
| Frequency | 15/20/35Khz | |
| Power | 1200~3200W | |
| Language | Chinese/English | |
| Work Stroke | 100mm | |
| Voltage | 200-240VAC stable output | |
| Welding amplitude | 10~100% adjustable (1% accuracy) | |
| Standardized configuration for this model | Pressure-trigger mode | |
| Standardized configuration for this model |
Depth Check (0.01mm precision) Reinforced Steel Profile for Press Structure |
|
| Linear guide blocks are used for welding movement and horn adjustment | ||
| Ports | Enough connection terminal ports for easy automation control | |
| Interface | 10-inch Human-machine interface | |
| Mode | Welding mode: | Time, Energy, Contact shut-off, Absolute Depth, Relative Depth,pressure trigger |
| Trigger mode: | Delay, Pressure, Depth | |
| Air-pressure mode | ||
| No fault power | ||
| 4-core 32-bit processor | ||
| 485 communications | ||
Features:
1. The high precision ultrasonic welding machine has a reinforced steel frame, full series standard depth detection;
2. Real-time automatic tracking and locking frequency;
3. Welding rise and fall, Mould adjustment rise and fall adopt linear guide rail slider;
4. With rich interface, this ultrasonic welder is easy to automatic control;
5. Six welding modes:time,energy,grounding,absolute depth,relative depth,pressure trigger;
6. Quality management:time mode,energy mode,absolute depth and relative depth can test each other;
7. Powerful function, excellent quality, high welding stability.
Application:
The ultrasonic welder can be used for automotive, electronics, home appliances, industrial components, electrical wiring components, lighters, toys, gadgets, medical, personal appliances and more.
For more details about our ultrasonic plastic welding machine, welcome to click the catalog below:
Catalog of Ultrasonic Welding Press.pdf
Detailed Photos:
Warehouse:
Packing:
