Product Details:
|
| Product Name: | 15KHz Ultrasonic Plastic Welding Machine PTS2000 | Air Pressure Rate: | 0.2-0.7MPa |
|---|---|---|---|
| Power: | 3200W | Weight: | 280kg |
| Quality Management: | Time, Energy | Horizontal Adjustment Board: | L800*W900 |
| Welding Mode: | Time ,energy,grounding | Trigger Modes: | Delay, Pressure |
| Application: | Plastic Welding | ||
| High Light: | 3200W Ultrasonic Welding Machine,Overload Protection Ultrasonic Welding Machine,3200W Ultrasonic Welder |
||
PTS2000 15KHz 3200W Ultrasonic Plastic Welding Machine, Ultrasound Welder For Plastic Welding
The high-frequency ultrasonic welder conducts ultrasonic waves to the plastic parts through the welding horn, so that the two plastic parts are subjected to ultrasonic waves to produce violent friction, and the friction heat melts the plastic parts to complete the welding. This technology is with fast speed and firm welding seams, Also, it can automate the production and processing of plastic products.
As the backbone of the ultrasonic welding machine products, this series of products integrate a variety of precision control techniques, including
* welding machine balancing system,
* Horizontal adjustment system,
* linear slide rail lifting system,
* micrometer positioning system,
* mechanical pressure sensors
to meet the requirements of the complex welding work environment and diverse needs of customers.
| Product Name | Ultrasound Welder PTS-2000 For Plastic Welding |
|
Voltage |
AC 220V 50/60HZ |
|
Dimensions (WxHxD) [mm] |
700*880*2000 |
|
Weight [kg] |
280KG |
|
Operating frequencies* [kHz] |
15KHZ |
|
Welding head operating stroke [mm] |
75/100mm |
|
Air pressure rate[MPa] |
0.2-0.7MPa |
|
Power [W] |
3200W |
|
Processor |
4-core, 32-bit processor |
|
Time Mode |
0.005-9.999 Seconds |
|
Welding amplitude |
10%-100% adjustable(1% accuracy) |
|
Welding mode |
Time, Energy, grounding |
|
Energy Mode |
Integrated |
|
Temperature |
-10ºC--40ºC |
1. The ultrasonic welder has three welding modes: time, energy, grounding;

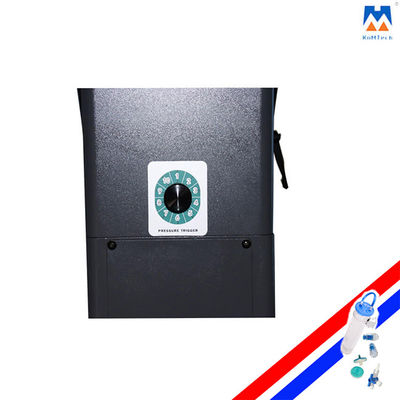

2. With two trigger modes: delay, pressure;
3. Three Amplitude managements: staged amplitude, adjusted amplitude, compensated amplitude;
4. Quality management: time, energy;
5. Safety managements: power overload protection, supply voltage protection, transducer voltage protection;
6. This ultrasonic plastic welding machine is stable and with high performance.
For more details about our ultrasonic plastic welders, welcome to click the catalog below:
Catalog of Ultrasonic Welding Press.pdf

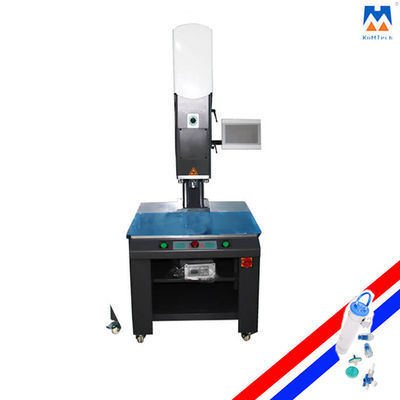

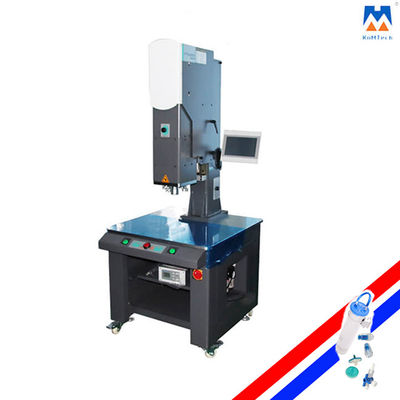

Detailed Photos:
