Product Details:
|
| Product Name: | 15KHz Ultrasonic Welding Generator KM-SS | Output Power:: | 0-2600W |
|---|---|---|---|
| Power Supply:: | AC220V 50Hz | Weight: | 4kg |
| Output Voltage:: | 0-3000V AC | Ambient Temperature:: | +5°C - +50°C |
| Dimension:: | L340mm×W210mm×H94mm | Usage: | Intermittent Welding |
| High Light: | 15kHz Digital Ultrasonic Welding Generator,Nonwoven Ultrasonic Welding Generator,Intermittent Welding Ultrasonic Generator |
||
15KHz 2600W Ultrasonic Welding Generator Power Supply for Ultrasonic Welder
This generator is designed for the productions of non-woven fabrics, the target market is the big volume fabric cutting and welding market. This type of generator is used to replace the traditional old model fabric welding generators used in the lace welders, the mask welders,non-woven clothes welders, etc.
The ultrasonic generator is economical, powerful, and high-adaptable for fabric continuous welding application. This generator can compete with internationally famous brands in quality, and the price is very competitive compared with other famous brands in the world.
Technical parameters:
| Product Name: | 2600W Ultrasonic Plastic Welding Digital Generator |
| Dimension: | L320mm×W210mm×H90mm |
| Net Weight: | 4Kg |
| Output power: | 0-2000W |
| Output voltage: | 0-3000V AC |
| Ambient temperature: | +5°C - +50°C |
| Harmonic Sinusoidal rate ≥97% | |
| Input power factor ≥80% | |
| Working frequency: | 15 kHz |
| Power supply: | AC220V 50Hz |
| Horn frequency scope: | ±400HZ(take 15KHZ as an example, the horn frequency can be 14.40-15.20KHZ, auto-tuning) |
| Auto-tuning accuracy: | ±5HZ |
| Power fluctuation: | ≤ 5% |
| Remote terminal dynamic response time: | ≤10ms |
| Over-current protection: | 15A |
Features:
1. The ultrasonic generator has a real-time frequency automatic tracking function which is easy to operate;
2. Welding modes of the generator: time, outer control, and spot welding;
3. Over-load circuit is equipped for protection (voltage, current, phase, temperature, and force)
4. The generator also has the auto-compensating amplitude function.
Usage:
Widely applied for toys, electrical appliances, automobile industries, and daily necessities industries, etc.
For more details about our ultrasonic generators, welcome to click the catalog below:
Catalog of KnmTech Ultrasonic Generators.pdf

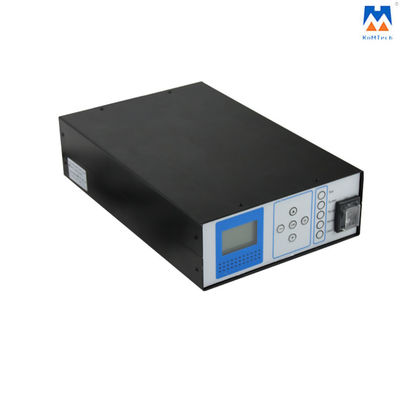

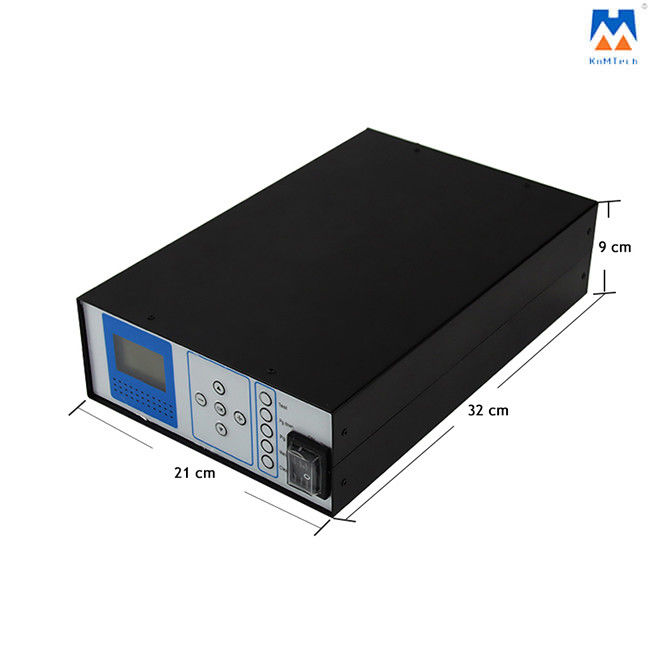

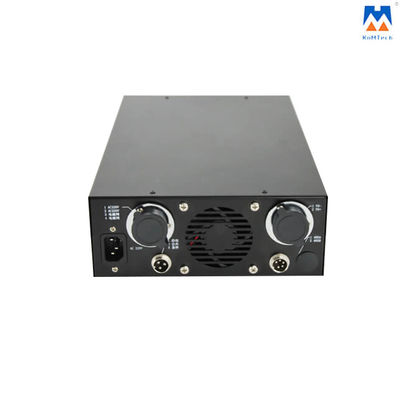

Detailed Photos:
