Product Details:
|
| Product Name: | Ultrasonic Plastic Welding Machine KM-DS300 | Operating Frequency: | 20KHz |
|---|---|---|---|
| Power: | 800-2500W | Time Mode: | 0.001s-9.999 Seconds |
| Voltage: | AC 220V 50/60Hz | Weight: | <=85kg |
| After-sales Service Provided: | Video Technical Support,Online Support | Application: | Ultrasonic Plastic Welding |
| Highlight: | 20kHz Ultrasonic Welding Machine,Economical Ultrasonic Pvc Welding Machine,20kHz Ultrasonic Welder |
||

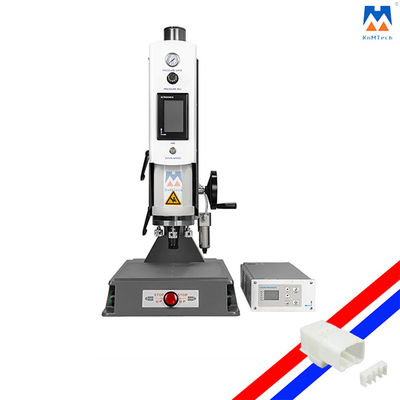

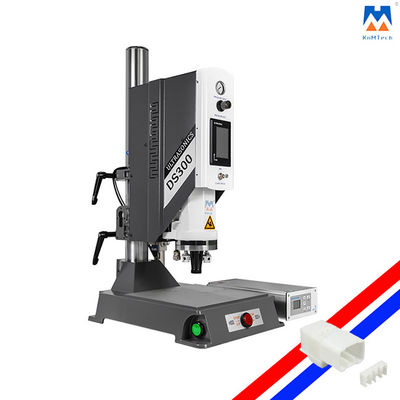

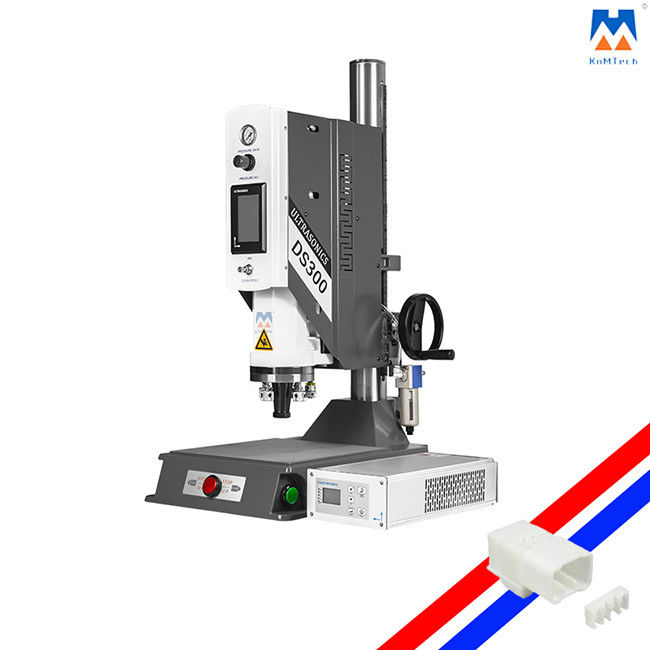

20kHz 2500w Digital Ultrasonic Plastic Welding Press Plastic Welding Machine
Ultrasonic welding machine components and How they work
The ultrasonic welding machine consists of an ultrasonic generator, a transducer, a welding horn/mould, a flange, a welding machine rack and a welding table. The ultrasonic welding generator converts power frequency single-phase or three-phase AC to high-frequency AC Electricity, to provide electrical energy for the transducer, and the transducer (converter and booster) converts the high-frequency AC signal output by the ultrasonic generator into a mechanical vibration signal of the same frequency, while the welding horn further amplifies the vibration amplitude and transfer energy to the welding area to join the two parts together, which reaches the target of welding.
KM-DS300s Series
Ultrasonic welding entry-level products, since the launch in 2015, the KM-DS300s have experienced several upgrades, which are widely praised by the market. The ultrasonic welder has auto-tuning frequency tracking function, it has three welding modes: time, energy, grounding, and Four intelligent managements: amplitude, quality, data, safety, with Rich models and accessories, frequency range: 15kHz-40kHz power range: 800W-4200W. The ultrasonic plastic welding processing is fast, clean, economical, and environmentally friendly.
Technical specifications:
| Product name | 2500W Digital Ultrasonic Welding Press | |
| Voltage | AC 220V 50/60Hz | |
| Dimensions (LxWxH) [mm] | 390*630*1050 | |
| Weight [kg] | 85KG | |
| Operating frequencies* [kHz] | 20kHz | 15kHz |
| Welding head operating stroke [mm] | 100mm-300mm | |
| Air pressure rate[MPa] | 0-0.6MPa | |
| Power [W] | 2500W | 2600W |
| Amplitude Internal | 60-100 at 5% steps | |
| Time Mode | 0.005-9.999 Seconds | |
| Input | 22-28V DC/7mA | |
| Output | 22-26V DC/250mA | |
| Energy Mode | Integrated | |
| Temperature | -10ºC--40ºC | |
Features:
* Universal applications in all industries
* Ultrasonic welding, sealing, cutting, stamping, riveting, and embossing of thermoplastics
* Intuitive touchscreen control
* Possible to exchange ultrasonic components and change application frequencies
* Extremely high degree of process reliability and quality
Application:
The ultrasonic welder can be used for automotive, electronics, home appliances, industrial components, electrical wiring components, lighters, toys, gadgets, medical, personal appliances, and more.
For more details about our ultrasonic plastic welders, welcome to click the catalog below:
Catalog of Ultrasonic Welding Press.pdf
Detailed Photos:
Warehouse:
Packing:
