Product Details:
|
| Product Name: | Piezoelectric Ceramic Ring | Dimention: | 50*20*5 |
|---|---|---|---|
| Thickness: | 5mm | Weight(1 Package): | 7.5kg |
| Pieces Of One Package: | 108 Pieces | Sensitivity: | High |
| Usage: | Ceramic Discs For Ultrasonic Welding Convertor | Dimension Of The Package: | 30*30*26 Cm |
| High Light: | Thickness 5mm Piezo Ceramic Ring,High Sensitivity Piezo Ceramic Ring,Thickness 5mm Piezoelectric Ceramic Ring |
||
Rsp50 Pzt8 50*20*5 Piezoelectric Ceramic Ring for 20KHz Ultrasonic Transducer
Piezoelectric Ceramics (PZT) materials are categorized as functional ceramics. In sensors, they make it possible to convert forces, and pressures into electrical signals, and in ultrasonic transducers and actuators they convert electric voltages into ultrasonic vibrations or deformations of the ultrasonic piezoelectric ceramics. Piezoelectric Ceramics materials are classified according to their chemical composition on the one hand, and by the specific application conditions on the other.
Piezoelectric materials of piezoelectric ceramic discs: PZT4, PZT5, PZT8, or other required piezoelectric materials.
Pzt8 piezoelectric ceramic rings can also be customized, If you need other sizes of piezoelectric ceramic rings, feel free to contact us.
Technical parameters:
| Product Name | PZT8 Piezoelectric Ceramic Discs |
| Capacitance | ±2950 |
| Outer Dimension | 50mm |
| Inner Dimension | 20mm |
| Thickness | 5mm |
| Sensitivity | High |
| Weight(1 package) | 7.5kg |
| Pieces of one package | 108 pieces |
| Measuring Medium | Solid |
| Usage | ceramic discs for ultrasonic welding convertor |
Other Models are available:
| Model | Capacitance | Loss | Resonant Frequency | Coupling factors | Mechanical quality factor |
| CT(pF) | tgδ(%) | Fs(kHz) | Kp(%) | Qm | |
| RSP-82-Φ10×Φ5×2 | 265 | 0.3 | 154.7 | 53 | 800 |
| RSP-82-Φ13×Φ5.3×2.2 | 455 | 0.3 | 126.8 | 53 | 800 |
| RSP-82-Φ15×Φ6×2 | 670 | 0.3 | 110 | 53 | 800 |
| RSP-82-Φ18×Φ8×7 | 265 | 0.3 | 89 | 53 | 800 |
| RSP-82-Φ20×Φ8×6 | 400 | 0.3 | 82.9 | 53 | 800 |
| RSP-82-Φ20×Φ10×5 | 425 | 0.3 | 77.3 | 53 | 800 |
| RSP-82-Φ25×Φ10×5 | 750 | 0.3 | 66.3 | 53 | 800 |
| RSP-82-Φ25×Φ12×5 | 690 | 0.3 | 62.7 | 53 | 800 |
| RSP-82-Φ30×Φ10×5 | 1140 | 0.3 | 58 | 53 | 800 |
| RSP-82-Φ30×Φ12×5 | 1075 | 0.3 | 55 | 53 | 800 |
| RSP-82-Φ32×Φ12×5 | 1255 | 0.3 | 52.7 | 53 | 800 |
| RSP-82-Φ35×Φ15×5 | 1425 | 0.3 | 46.4 | 53 | 800 |
| RSP-82-Φ38×Φ15×5 | 1735 | 0.3 | 43.8 | 53 | 800 |
| RSP-82-Φ40×Φ12×5 | 2075 | 0.3 | 44.6 | 53 | 800 |
| RSP-82-Φ40×Φ15×5 | 1960 | 0.3 | 42.2 | 53 | 800 |
| RSP-82-Φ45×Φ15×5 | 2565 | 0.3 | 38.7 | 53 | 800 |
| Model | Capacitance | Loss | Resonant Frequency | Coupling factors | Mechanical quality factor |
| CT(pF) | tgδ(%) | Fs(kHz) | Kp(%) | Qm | |
| RSP-82-Φ45×Φ17×5 | 2475 | 0.3 | 37.4 | 53 | 800 |
| RSP-82-Φ49×Φ23×6 | 2225 | 0.3 | 32.2 | 53 | 800 |
| RSP-82-Φ50×Φ17×5 | 3150 | 0.3 | 34.6 | 53 | 800 |
| RSP-82-Φ50×Φ17×6.5 | 2425 | 0.3 | 34.6 | 53 | 800 |
| RSP-82-Φ50×Φ17×7.5 | 2100 | 0.3 | 34.6 | 53 | 800 |
| RSP-82-Φ50×Φ20×6 | 2495 | 0.3 | 33.1 | 53 | 800 |
| RSP-82-Φ50×Φ20×7 | 2135 | 0.3 | 33.1 | 53 | 800 |
| RSP-82-Φ50×Φ23×6 | 2340 | 0.3 | 31.8 | 53 | 800 |
| RSP-82-Φ50×Φ23×6.5 | 2170 | 0.3 | 31.8 | 53 | 800 |
| RSP-82-Φ50×Φ23×7 | 2005 | 0.3 | 31.8 | 53 | 800 |
| RSP-82-Φ55×Φ20×8 | 2340 | 0.3 | 30.9 | 53 | 800 |
| RSP-82-Φ55×Φ26×7 | 2390 | 0.3 | 28.6 | 53 | 800 |
| RSP-82-Φ60×Φ30×10 | 1925 | 0.3 | 25.8 | 53 | 800 |
| RSP-82-Φ69×Φ33×11 | 2380 | 0.3 | 22.7 | 53 | 800 |
| RSP-82-Φ70×Φ30×10 | 2850 | 0.3 | 22.7 | 53 | 800 |
| RSP-82-Φ100×1.4-200 | 52000 | 0.3 | 23 | 53 | 800 |
Features:
* Good stability
* High sensitivity
* Low heat
* High vibration efficiency
Some Application of Piezo Ceramic:
1. ultrasonic cleaning transducer
2. ultrasonic welding transducer
3. ultrasonic beauty transducer
4. ultrasonic underwater transducer
5. ultrasonic immersible transucer
6. ultrasonic screening transducer
7. ultrasonic cutting transducer
8. ultrasonic atomization transducer
9. ultrasonic emulsifier
If you need other sizes of piezoelectric ceramic discs, feel free to contact us.

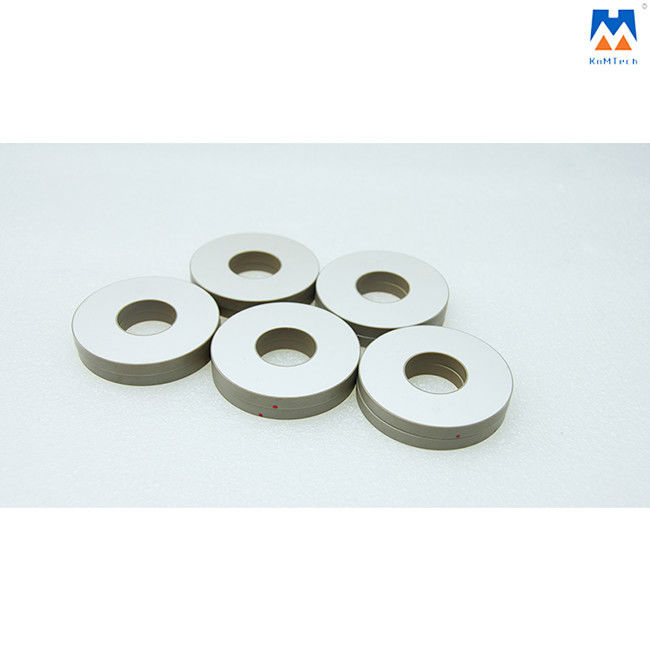

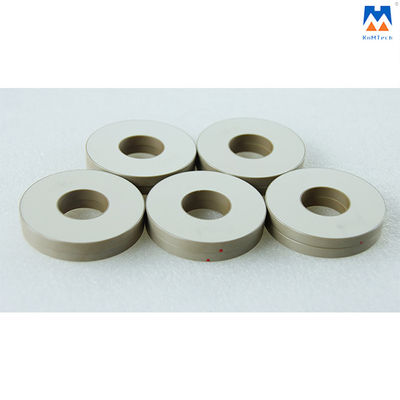

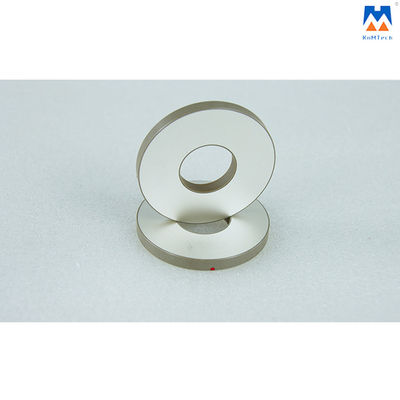

Detailed Photos:
