Product Details:
|
| Product Name: | Ultrasonic Impedance Analyzer | Dimention: | 24*19*10cm |
|---|---|---|---|
| Power: | 30W | Power Supply: | AC220V-250V |
| Usage: | Ultrasonic Impedance Analyze | Weight: | 1.95kg |
| High Light: | 7.8in Screen Ultrasonic Measuring Instrument,30W Ultrasonic Measuring Instrument,7.8in Screen Ultrasonic Impedance Analyzer |
||
Ultrasonic Measuring Instrument Wide Range Transducer Impedance Analyzer
Technical Parameters:
| Product Name | Ultrasonic Impedance Analyzer | ||
| Model | KM-PV520A | ||
| Features | Portable, full-screen touch screen, 7.8 inches screen | ||
| Size | 24*19*10cm | ||
| Measurement index | All parameters or graphs | ||
| Basic accuracy | <0.1% | ||
| Test speed | 1 pc/5 sec (1000 points scan) | ||
| Frequency accuracy | ±10ppm | ||
| Phase resolution | 0.15 degree | ||
| Environment temp | 10-40℃ | ||
| Impedance range | 1Ω～1MΩ | ||
| Frequency step | 0.1Hz～any random no. | ||
| Power supply | AC100V～AC250V,50～60Hz, 30W | ||
Features:
1. The size is only 24cm*14cm*(10cm after the first 5cm), and the weight is only 1.95kg.
The most portable ultrasonic impedance analyzer in the world.
2. Oversized touch screen, no physical button is needed to display all parameters and graphics at one time, which is more intuitive.
3. Superfast test speed, a test of 1000 points only takes 5 seconds.
4. It can also be connected to a computer, and the software is fully compatible with PV70A/80A.
5. The maximum test frequency is up to 5MHz.
6. The only physical button on the instrument is also a "start" function, located at the back of the instrument panel
Application:
The ultrasonic impedance analyzer can be used for ultrasonic device measurement, including ultrasonic transducer, ultrasonic horn, ultrasonic horn (tool head), piezoelectric ceramics, ultrasonic cleaning machine, ultrasonic welding machine, ultrasonic crushers, ultrasonic atomization, phacoemulsification, ultrasonic descaling, and other devices and machine that use ultrasonic sound.

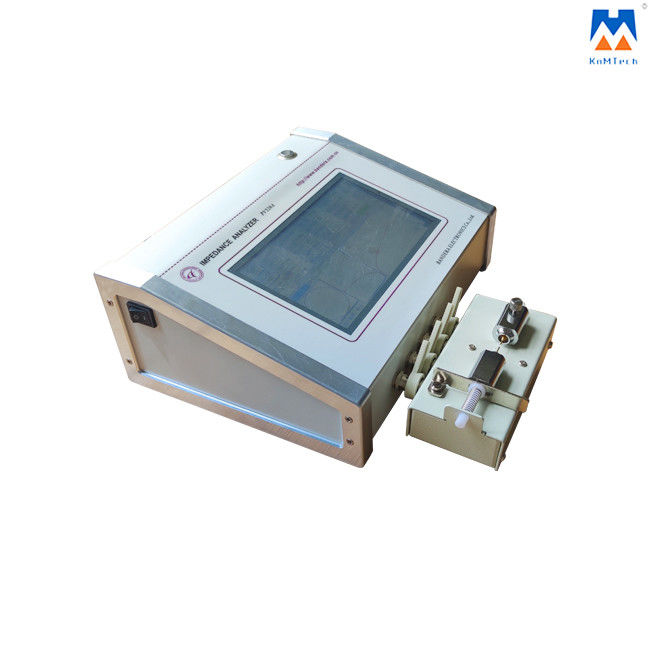

Detailed Photos:
