Product Details:
|
| Product Name: | Ultrasonic High Frequency Impedance Analyzer | Keyword: | Impedance Analyzer |
|---|---|---|---|
| Weight: | 1.95kg | Dimention: | 24*19*10cm |
| Power Supply: | AC220V-250V | Power: | 30W |
| Usage: | Ultrasonic Impedance Analyze | After-sales Service: | Online Support ,videos Support |
| High Light: | 30Watt Ultrasonic Impedance Analyzer,AC 250V High Frequency Impedance Analyzer,7.8 Inches Screen Ultrasonic Impedance Analyzer |
||
High Frequency Impedance Analyzer Horn Analyzer Transducer Impedance Analyzer
High Frequency Impedance Analyzer Transducer Impedance Analyzer
Technical Parameters:
| Product Name | Ultrasonic Impedance Analyzer | ||
| Model | KM-PV520A | ||
| Features | Portable, full-screen touch screen, 7.8 inches screen | ||
| Size | 24*19*10cm | ||
| Measurement index | All parameters or graphs | ||
| Basic accuracy | <0.1% | ||
| Test speed | 1 pc/5 sec (1000 points scan) | ||
| Frequency accuracy | ±10ppm | ||
| Phase resolution | 0.15 degree | ||
| Environment temp | 10-40℃ | ||
| Impedance range | 1Ω～1MΩ | ||
| Frequency step | 0.1Hz～any random no. | ||
| Power supply | AC100V～AC250V,50～60Hz, 30W | ||
Impedance analyzer is mainly used for the detection of piezoelectric devices (such as a single piezoelectric ceramic plate, or a single transducer, or transducer + amplitude modulator/welding head). Through the impedance analyzer, we can get some technical indicators that can not be seen directly, but have an important impact on product quality, which can guide production. Impedance analyzer, as the name implies, is to test the impedance characteristics of all kinds of piezoelectric devices, suitable for the development and production of all kinds of ultrasonic equipment.
Features:
1. The size is only 24cm * 14cm *(front 5cm, back 10cm), and the weight is only 1.95kg.
The world's most portable ultrasonic impedance analyzer.
2. Large touch screen, no need for physical buttons, all parameters and graphics display at the same time, more intuitive.
3. The test speed is super fast, it only takes 5 seconds to test 1000 points.
4. Can also be connected to the computer, software is fully compatible with PV70A / 80A.
5. Maximum test frequency up to 5MHz.

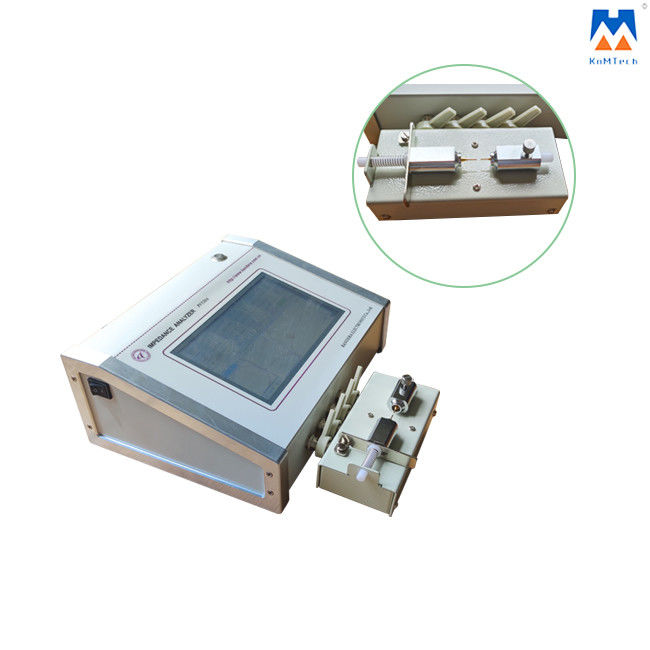

Detailed Photos:
