Product Details:
|
| Product Name: | Ultrasonic Handhold Welder 35kHz | Frequency: | 35kHz |
|---|---|---|---|
| Maximum Output Power: | 800W | Input Power: | AC220V±10V, 50/60Hz |
| Max Current: | 20A | Ambient Temperature: | -10ºC~40ºC |
| Hand Gun Material: | Nylon Plus 30% Glass Fiber | Weight: | 5.5KG |
| Dimension: | 285*222*105mm | Usage: | Plastic Spot Welding |
| High Light: | Digital HandHeld Ultrasonic Welder,Ultrasonic Handheld Welder 35kHz,800W Hand Held Ultrasonic Welder |
||
35kHz Digital Hand Held Ultrasonic Welder For Plastic Toys Welding 800W
Portable Intelligent Ultrasonic Plastic Spot Welding Machine 35kHz
Technical parameters:
| Product Name | Digital Ultrasonic Hand held Spot Welder |
| Model | KM-RY-HW3508 |
| Maximum output power | 800W |
| Input power | AC220V±10V, 50/60Hz |
| Basic frequency | 35Khz |
| Ambient temperature | -10ºC~40ºC |
| Max current | 20A |
| Weight | 5.5KG |
| Handgun material | Nylon plus 30% glass fiber |
| Dimension | 285*222*105mm |
Compared with the traditional technology (bonding, electric heating or screw fastening, etc.), ultrasonic spot welding has the advantages of high production efficiency, good welding quality, environmental protection and energy saving. Hand-held ultrasonic welding machine can also be used for thermoplastic products of welding, riveting, metal parts and plastic parts between the inlay and pressing technology. The ultrasonic welding has completely replaced the organic melting point adhesive process,and is with low energy consumption, high efficiency, no deformation, no pollution, solid welding, easy to operate and so on.
Application:
Ultrasonic plastic spot welder application:
1. Plastic toys: aquarium game machines, children's dolls, plastic gifts, etc.
2, electronic products: recording, tape cassette and core wheel, disk shell, cell phone panels, and rectifier transformers, switch sockets, remote control, electronic mosquito bat, fake bottle caps, etc.
3. Household appliances: electronic clock, electric blower, steam iron water tank, electric heater, computer, etc.
4. Stationery and daily necessities: stationery case, aquarium scale, folder seaming and shell, pen holder, cosmetic box shell, toothpaste tube sealing, makeup mirror, thermos cup, lighter, seasoning bottle, and other sealed containers.
5, cars, motorcycles: battery, front lamp, rear lamp, instrument, reflector, etc.
6, sports industry applications: table tennis, table tennis, badminton racket, tennis racket, golf clubs, billiard tables, treadmill roller rope skipping handle Treadmills, running machine accessories, vaulting box, gymnastics MATS boxing sandbags, sanda, boxing gloves, protective devices, path ShiYiPai, X exhibition shelf and other sports equipment widely used in ultrasonic plastic welding machine for plastic welding.

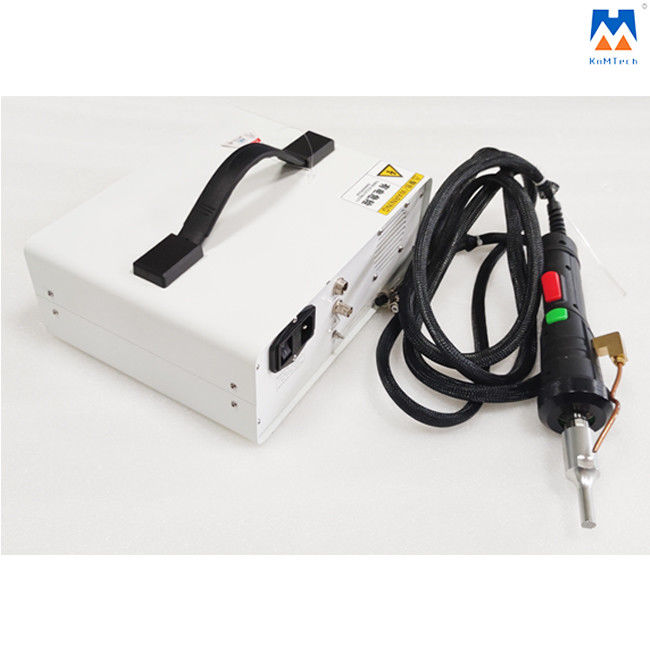

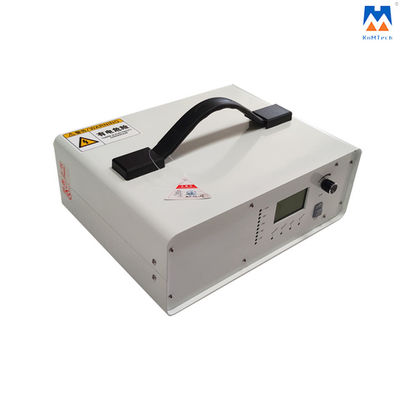

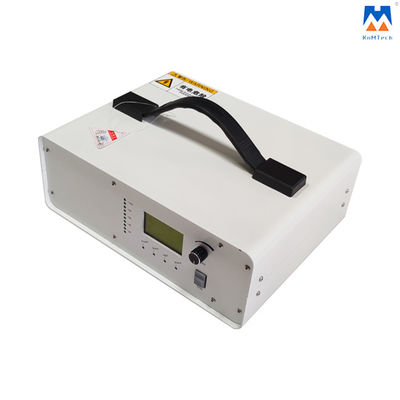

Detailed Photo:
