Product Details:
|
| Product Name: | Welding Ultrasonic Machine For PP PA PVC Communication Equipment | Frequency: | 15KHz |
|---|---|---|---|
| Power: | 2600W | Voltage: | 220V |
| Warranty: | 1 Year | After-sales Service Provided: | Video Technical Support,Online Support |
| Welding Mode: | Time,energy,ground | Trigger Mode: | Delay |
| High Light: | Ultrasonic Welding Machine 15KHz,Communication Equipment Ultrasound Welder,Communication Equipment Ultrasonic Welding Machine |
||

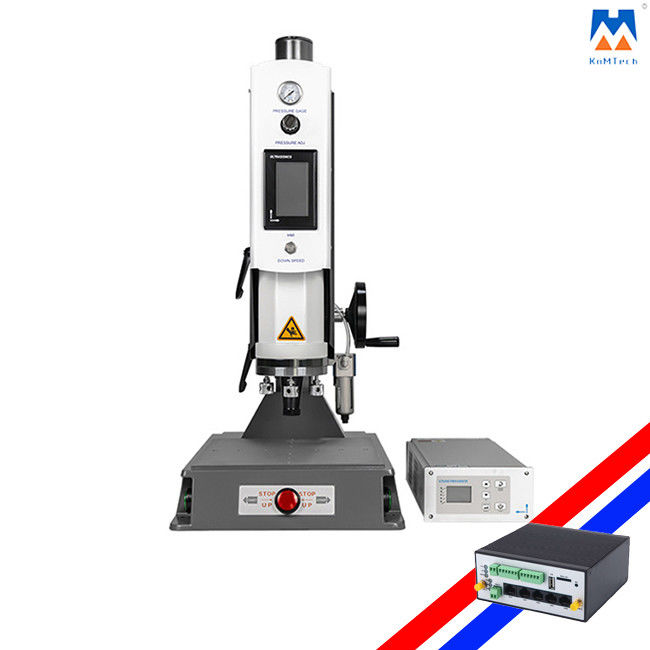

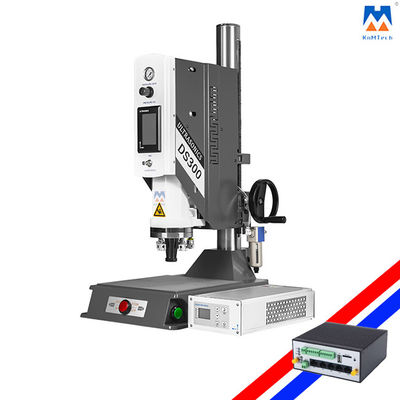

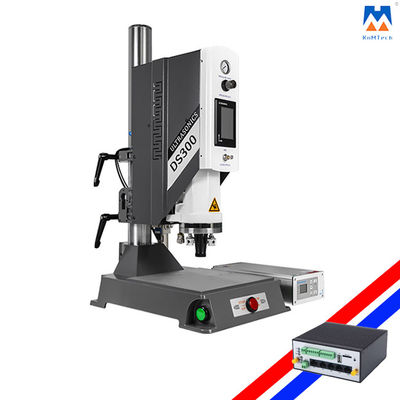

Welding Ultrasonic Machine For PP PA PVC Communication Equipment
Technical specifications:
| Product name | Welding Ultrasonic Machine |
| Voltage | AC 220V 50/60Hz |
| Dimensions (WxHxD) [mm] | 670*400*1160 |
| Weight [kg] | 85KG |
| Operating frequencies* [kHz] | 15KHz |
| Welding head operating stroke [mm] | 75mm |
| Air pressure rate[MPa] | 0-0.6MPa |
| Power [W] | 2600W |
| Amplitude Internal | 60-100 at 5% steps |
| Time Mode | 0.005-9.999 Seconds |
| Input | 22-28V DC/7mA |
| Output | 22-26V DC/250mA |
| Energy Mode | Integrated |
| Temperature | -10ºC--40ºC |
Different Models Available:
| Frequency | Power | Work Stroke | Voltage |
| 15kHz | 2600W | 75MM | 220V±10% |
| 15khz | 3200W | 75MM | |
| 15khz | 4200W | 100MM | |
| 20kHz | 2500w | 75MM | |
| 20kHz | 3000w | 75MM | |
| 28kHz | 1200W | 75MM | |
| 30kHz | 1200W | 75MM | |
| 35kHz | 1200W | 75MM | |
| 40kHz | 800W | 75MM |
Ultrasonic Welding Plastic Materials:
Ultrasonic plastic welding machine: Suitable for ABS, PP, PE, PC, PUC, PMMA, PS, PPS, PBT, PETG and other plastic material welding, plastic sheet welding, plastic box welding, plastic shell welding, Also used in plastic, electronics, electrical appliances, motors, auto parts, packaging, environmental protection, medical equipment, non-woven clothing, stationery, daily necessities, plastic toys, sports goods, food industry, communication equipment and other industries.
