Product Details:
|
| Product Name: | Ultrasonic TPU PC ABS Welding Machine For Phone Shell | Frequency: | 30KHz |
|---|---|---|---|
| Working Trip: | 75mm | Lift Mode: | By Crank Handle |
| Welding Mode: | Time,energy | Weight: | 85kg |
| Air Pressure Rate: | 0.2-0.7MPa | Application: | Plastic Welding ABS,PVC |
| Highlight: | 1200 Watt Ultrasonic Plastic Welder,Phone Shell Ultrasonic Plastic Welder,Phone Shell Ultrasonic Welding Machine |
||
Ultrasonic TPU PC ABS Welding Machine For Phone Shell
Technical specifications:
| Product name | 1200W Ultrasonic Plastic Welder |
| Voltage | AC 220V 50/60Hz |
| Frequency | 30KHz |
| Dimensions (WxHxD) [mm] | 670*400*1160 |
| Weight [kg] | 85KG |
| Welding head operating stroke [mm] | 75mm |
| Air pressure rate[MPa] | 0-0.6MPa |
| Amplitude Internal | 60-100 at 5% steps |
| Time Mode | 0.001-9.999 Seconds |
| Input | 22-28V DC/7mA |
| Output | 22-26V DC/250mA |
| Energy Mode | Integrated |
| Temperature | -10ºC--40ºC |
Different models are available:
| Frequency | Power | Work Stroke | Voltage | Air Source |
| 15kHz | 2600W | 75MM | 220V±10% | 2kgf-8kgf |
| 15khz | 3200W | 75MM | ||
| 15khz | 4200W | 100MM | ||
| 20kHz | 2500w | 75MM | ||
| 20kHz | 3000w | 75MM | ||
| 28KHz | 1200W | 75MM | ||
| 30KHz | 1200W | 75MM | ||
| 35KHz | 1200W | 75MM | ||
| 40KHz | 800W | 75MM |
Features:
1) Fast welding speed and high efficiency. Ultrasonic welding can be completed within 0.1 ~ 0.5 s;
2) Low cost. Ultrasonic welding is a very economical way to assemble plastic parts because of its high efficiency, low labor cost, and the use of a lot of fixtures, adhesives, or mechanical fasteners are eliminated.
3) High strength. Ultrasonic welding can almost reach more than 80% of the strength of plastic parts;
4) Reasonable plastic parts design can make ultrasonic welding to achieve waterproof effect;
5) Good surface quality, beautiful solder joints, can achieve seamless welding;
6) Simple process, simple operation, can realize automatic welding;
7) Stable quality, stable and reliable product quality, suitable for mass production;
8) Ultrasonic welding process is clean, stable, reliable, and low energy consumption.
Application:
| Toy industry | plastic toys, water guns, aquatic life video game, children dolls, plastic gifts, etc |
| Electronic products | core wheel, disk enclosure, board of mobile phone batteries and rectifier transformers, switches and sockets, remote control, electronic swatter, pseudo-imitation caps, etc |
| Household appliances | electronic clock, electric trumpeter hairdryer, steam iron water tank, electric kettle air-Hsiang, computer, etc |
| Stationery | daily necessities stationery, aquarium ruler, the raphe folder and shell, pen stand, cosmetics box shell, the end of the toothpaste tube seal, mirror, insulated cup, lighter, seasoning bottles sealed container |
| Car industry | motorcycle battery, front corner lamp, rear tail light, instrument, reflectors, automotive manual welding jacket, the car door welded baffle welding, automobile, car mats welding, automotive bumper repair welding |
| Sports industry | table tennis, table tennis bats, badminton rackets, tennis rackets, golf clubs, pool table, treadmill roller rope skipping handle stepper, treadmill accessories, box jumps, gymnastics mats, etc. |
For more details about our ultrasonic plastic welders, welcome to click the catalog below:
Catalog of Ultrasonic Welding Press.pdf

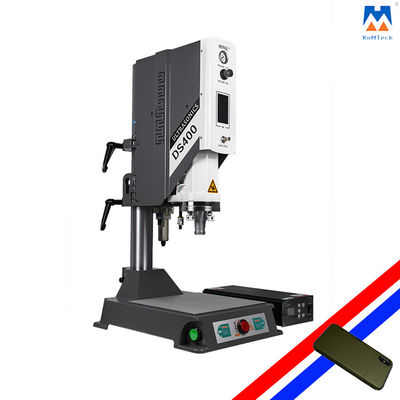

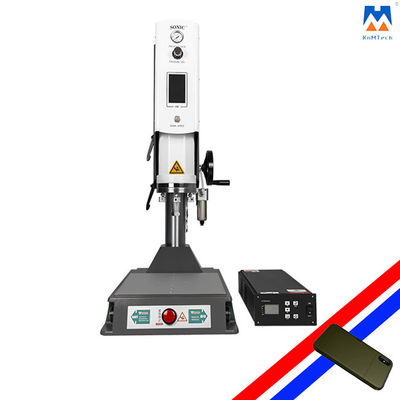

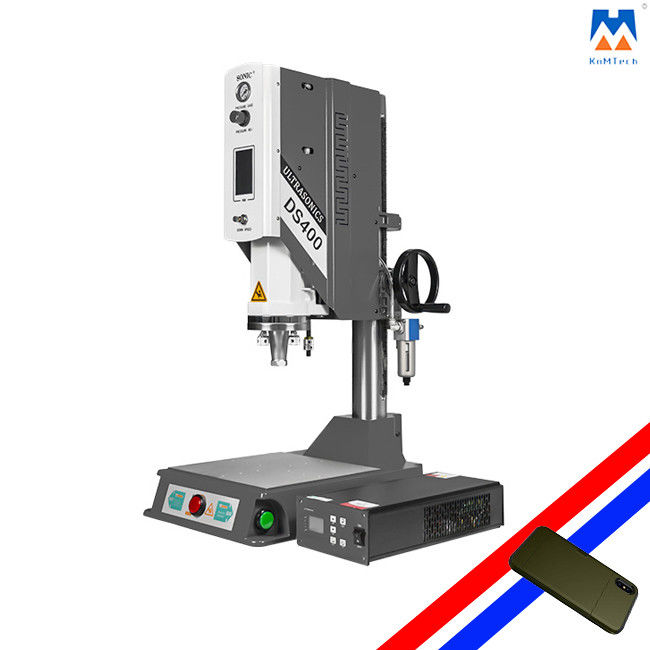

Detailed Photos:
