Product Details:
|
| Product Name: | Fast High Freqeuncy Ultrasonic Plastic Welder For Disguise Box | Frequency: | 20KHz |
|---|---|---|---|
| Working Trip: | 75mm | Lift Mode: | By Crank Handle |
| Welding Mode: | Time,energy | Weight: | 85kg |
| Air Pressure Rate: | 0.2-0.7MPa | Application: | Plastic Welding ABS,PVC |
| High Light: | ABS Ultrasonic Plastic Welder,Disguise Box Ultrasonic Plastic Welder,Disguise Box Ultrasound Welder |
||

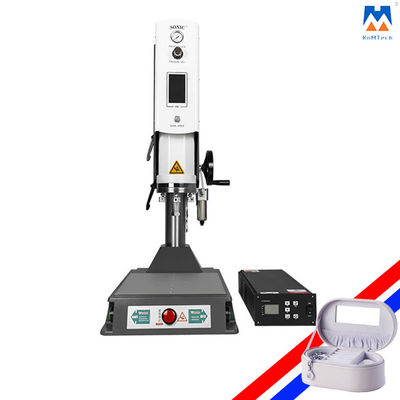

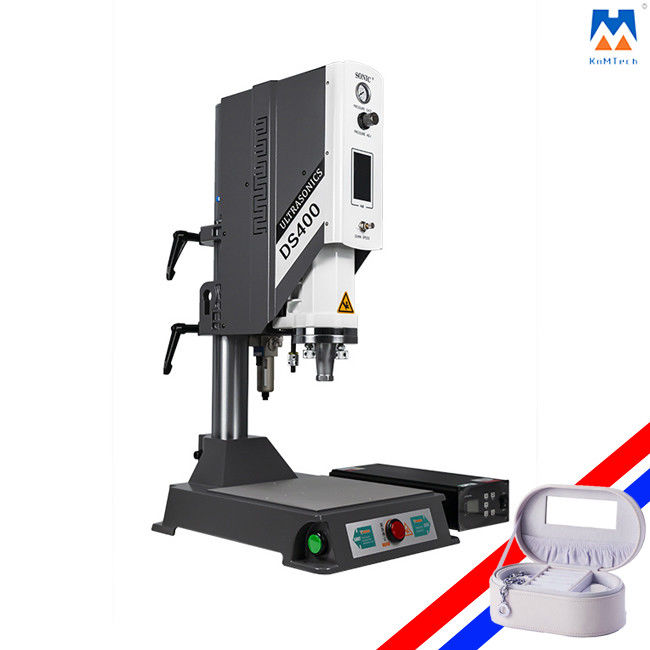

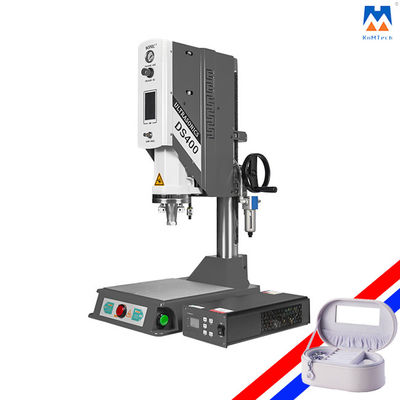

Fast High Frequency Ultrasonic Plastic Welder For Disguise Box
Fast High-Frequency Ultrasonic Plastic Welder For Disguise Box
Ultrasonic Welding Principles & Theory
Ultrasonic welding is a high-tech technology for melting and bonding plastic products. As the application of this technology can replace the past production of flux, binder, buckle, or other mechanical fixation methods, thus increasing production efficiency and reducing costs. The principle of ultrasonic welding is to convert high-frequency electrical energy into high-frequency mechanical movement through the ultrasonic generator, ultrasonic transducer, and then the mechanical movement is transmitted to the welding head through a set of amplitude-modulator devices that can change the amplitude(ultrasonic booster). The welding head transmits the received vibration energy to the joint of the part to be welded, where the vibration energy is converted into heat energy by friction to melt the plastic.
Technical specifications:
| Product name | Fast High-Frequency Ultrasonic Plastic Welder For Disguise Box |
| Voltage | AC 220V 50/60Hz |
| Dimensions (WxHxD) [mm] | 670*400*1160 |
| Weight [kg] | 85KG |
| Welding head operating stroke [mm] | 75mm |
| Air pressure rate[MPa] | 0-0.6MPa |
| Amplitude Internal | 60-100 at 5% steps |
| Time Mode | 0.001-9.999 Seconds |
| Input | 22-28V DC/7mA |
| Output | 22-26V DC/250mA |
| Energy Mode | Integrated |
| Temperature | -10ºC--40ºC |
Different models are available:
| Frequency | Power | Work Stroke | Voltage | Air Source |
| 15kHz | 2600W | 75MM | 220V±10% | 2kgf-8kgf |
| 15khz | 3200W | 75MM | ||
| 15khz | 4200W | 100MM | ||
| 20kHz | 2500w | 75MM | ||
| 20kHz | 3000w | 75MM | ||
| 28KHz | 1200W | 75MM | ||
| 30KHz | 1200W | 75MM | ||
| 35KHz | 1200W | 75MM | ||
| 40KHz | 800W | 75MM |
Advantage of ultrasonic welding machine:
1. High welding efficiency, short time, batch processing of plastic parts to be welded.
2. Do not need any auxiliary materials, chemical solution, so there is no impact on human health.
3. Strong bonding, no deformation, no impact on the appearance, no damage to the welding.
4. To ensure the airtightness and water tightness of the welding objects.
5. Strong and stable output of the piezoelectric ceramic transducer.
6. Touch screen, digital welding parameter setting, intuitive and accurate.
7. Simple process, simple operation, can realize automatic welding;
8. Stable quality, stable and reliable product quality, suitable for mass production;
9. Ultrasonic welding process is clean, stable, reliable, and low energy consumption.
For more details about our ultrasonic plastic welders, welcome to click the catalog below:
Catalog of Ultrasonic Welding Press.pdf
Application:
Detailed Photos:
Warehouse:
