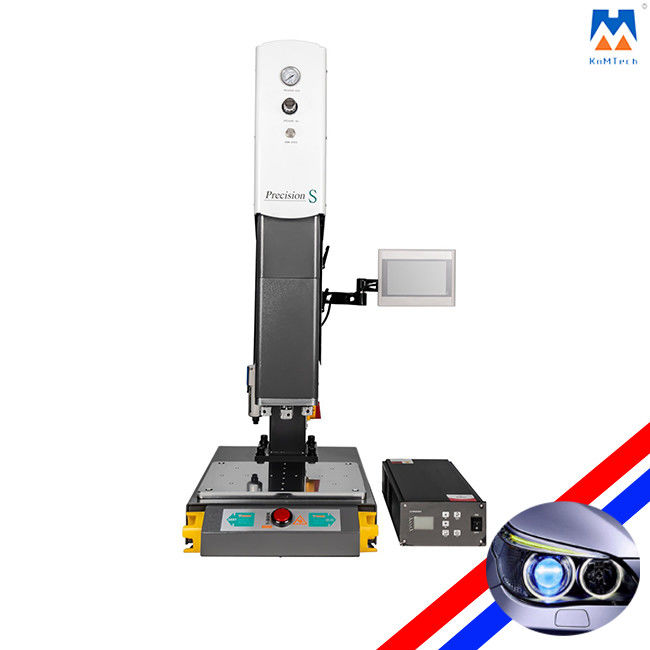

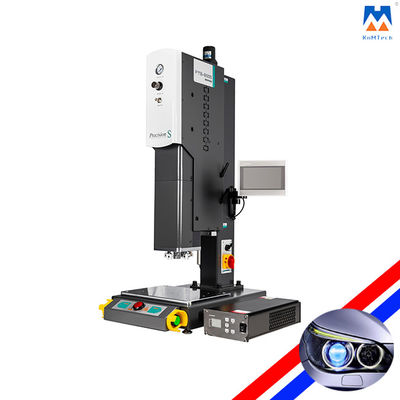

15KHz Ultrasonic Plastic Welding Equipment For Automative Car Light

Ultrasonic Welding Equipment Plastic For Automative Car Lights

Ultrasonic welding is a fast, clean and reliable assembly process, with the following advantages:

1) Fast welding speed and high efficiency. Ultrasonic welding can be completed within 0.1 ~ 0.5 s.
2) Low cost. Ultrasonic welding is a very economical way to assemble plastic parts because of its high efficiency, low labor cost, and the use of a lot of fixtures, adhesives, or mechanical fasteners are eliminated.
3) High strength. Ultrasonic welding can almost reach more than 80% of the strength of plastic parts;
4) Reasonable plastic parts design can make ultrasonic welding to achieve waterproof effect;
5) Good surface quality, beautiful solder joints, can achieve seamless welding;
6) Simple process, simple operation, can realize automatic welding;
7) Stable quality, stable and reliable product quality, suitable for mass production;
8) Ultrasonic welding process is clean, stable, reliable, and low energy consumption.

Product Name	Ultrasonic Welding Equipment Plastic PTS2000
Voltage	AC 220V 50/60HZ
Dimensions (WxHxD) [mm]	700*880*2000
Weight [kg]	280KG
Operating frequencies* [kHz]	15KHZ
Welding head operating stroke [mm]	100mm
Air pressure rate[MPa]	0.2-0.7MPa
Power [W]	2600W
Processor	4-core, 32-bit processor
Time Mode	0.001-9.999 Seconds
Welding amplitude	10%-100% adjustable(1% accuracy)
Welding mode	Time, Energy, grounding
Energy Mode	Integrated
Temperature	-10ºC--40ºC



Different models are available:



Frequency	Power	Work Stroke	Lifting Mode	Voltage	Air Source
15kHz	2600W	75MM	electric control	220V±10%	2kgf-8kgf
15khz	3200W	75MM
15khz	4200W	100MM
20kHz	2500w	75MM
20kHz	3000w	75MM
30KHz	1200W	75MM
35KHz	1200W	75MM
40KHz	800W	75MM
Operation interface:7 inches touch screen



As the backbone of the ultrasonic welding machine products, this series of products integrate a variety of precision control techniques, including welding machine balancing system/Horizontal adjustment system, linear slide rail lifting system, micrometer positioning system, mechanical pressure sensors, to meet the requirements of the complex welding work environment and diverse needs of customers.



Features:



1.  The ultrasound welder has three welding modes: time, energy, grounding;

2.  With two trigger Modes: delay, pressure;

3.  Three Amplitude managements: staged amplitude, adjusted amplitude, compensated amplitude;

4.  Quality management: time, energy;

5.  Safety managements: power overload protection, supply voltage protection, transducer voltage protection;

6.  This ultrasonic plastic welding machine is stable with high performance.



For more details about our ultrasonic plastic welders, welcome to click the catalog below:



Catalog of Ultrasonic Welding Press.pdf
