Product Details:
|
| Product Name: | Portable Ultrasonic Welder | Output Interface: | 7" Color Touch Screen |
|---|---|---|---|
| Control Ststem: | IQS Operating System | Frequency(KHz): | 20KHz |
| Power(W): | 2000W | Max Welding Time(S): | ≤6S |
| Cooling System: | Vortex Cooling | Generator Alert: | Frequency Error/Over Current/Power Overload |
| Relative Humidity: | 30% - 95%, Condensate Free | Voltage(V): | AC220V±5% 50/60Hz |
| High Light: | 20khz Portable Ultrasonic Spot Welding Machine,Digital Portable Ultrasonic Spot Welding Machine,Ultrasonic Spot Welder Portable |
||

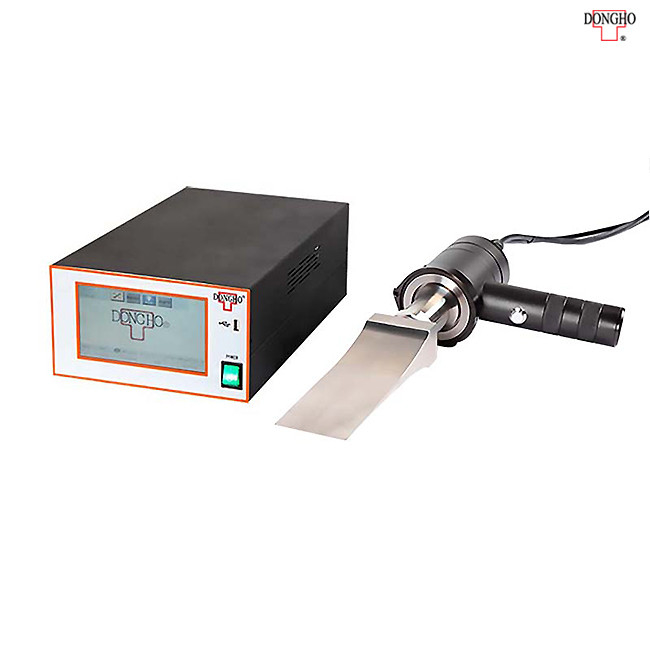

20khz Digital Portable Ultrasonic Spot Welding Machine For Plastic Welding

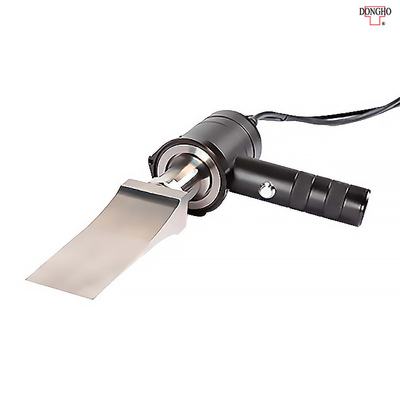

The GSH series is a manual handheld ultrasonic spot welding machine designed for flexible deployment in the plastic welding field.
The ultrasonic spot welder can be equipped with different versions for specific applications with extremely low weight and ergonomically designed handles, including compressed air cooling in the converter, suitable for applications requiring standard or customized machines with maximum physical flexibility, it can be used in combination with digital generator technology, the commonly used frequency is 20 and 35kHz with 1000W, 2000W power output.
Technical Parameters:
| Hardware | |
| Output interface | 7" color touch screen |
| Control System | iQS operating system |
| Frequency(kHz) | 20KHz |
| Power(W) | 2000W |
| Frequency adjustment | IGBT Automatic frequency chasing |
| Max Welding time(S) | ≤6S |
| Cooling system | Vortex cooling |
| Generator alert | Frequency Error/Over current/Power overload |
| Relative humidity | 30% - 95%, condensate free |
| Operation temperature | +5℃ - +55℃ |
| Voltage(V) | AC220V±5% 50/60Hz |
| Dimension(L*W*H)mm | 68*152*180mm |
| Weight(kg) | 6KG |
| Controler | |
| Language(icon) | 1) Chinese 2) English |
| Welding method | Time/Energy |
| Power range(W) | ≤2000W |
| Amplitude control | Single-stage amplitude(10~100%) |
| Quality control | Time/Energy |
| Parameter management | 99 sets |
| Transducer | |
| Warranty | 1 year |
| Brand | DONGHO |
| Transduction ratio | 90% < real ratio < 100% |
| Horn | |
| Frequency precision(kHz) | 19.80KHz-20.20KHz |
| Welding area(φmm) | Depends on material/shape, usually within 100mm |
| Product size | Depends on material/shape, usually within 100mm |
| Data collection | |
| System data display | welding data section |
| Product identification | Barcode/QR code |
| Barcode scanner supported | Honewell/Code Reader/Datalogic/Infoscan |
| Memory capacity | 1500strokes/cycle |
| Transfer memory data | USB saving/reading |
Features:
* Portable, compact design;
* With digital ultrasonic generator technology;
* Low weight, ergonomically designed handle;
* 20kHz,35kHz available;
* Easy to use by reducing the operations.
Application:
| Field | Specific Application |
| Apparel | Clothing fabric, underwear spot welding, etc. |
| Label | Logo, woven labels, marks welding or spot welding, etc. |
| Shoe material | TPU vamp positioning spot welding, smoothen shoe head wrinkles, etc. |
| Poultry | Chicken manure belt, egg conveyor belt welding, etc. |
| Automobile | Automotive trim wrapping, trim riveting, steering wheel dustproof sleeve welding, etc. |
| Electronic | Plastic parts, rubber column riveting, soundbox covering cloth welding, etc. |
| Packaging | PVC spot welding, plastic box sealing welding, etc. |
| Non-woven | Face mask, non-woven bag welding, etc. |
| Ribbon | Ribbon, elastic belt welding |
| Filter net or bag | Velcro welding, film welding, etc. |
