Product Details:
|
| Product Name: | Handheld Ultrasonic Welding Machine | Frequency(KHz): | 20KHz |
|---|---|---|---|
| Power(W): | 2000W | Max Welding Time(S): | ≤6S |
| Output Interface: | 7" Color Touch Screen | Control Ststem: | IQS Operating System |
| Cooling System: | Vortex Cooling | Voltage(V): | AC220V±5% 50/60Hz |
| Welding Method: | Time/Energy | Generator Alert: | Frequency Error/Over Current/Power Overload |
| High Light: | 20KHz Handheld Ultrasonic Welding Machine,Handheld Ultrasonic Spot Welding Machine,Vortex Cooling Ultrasonic Welding Machine |
||

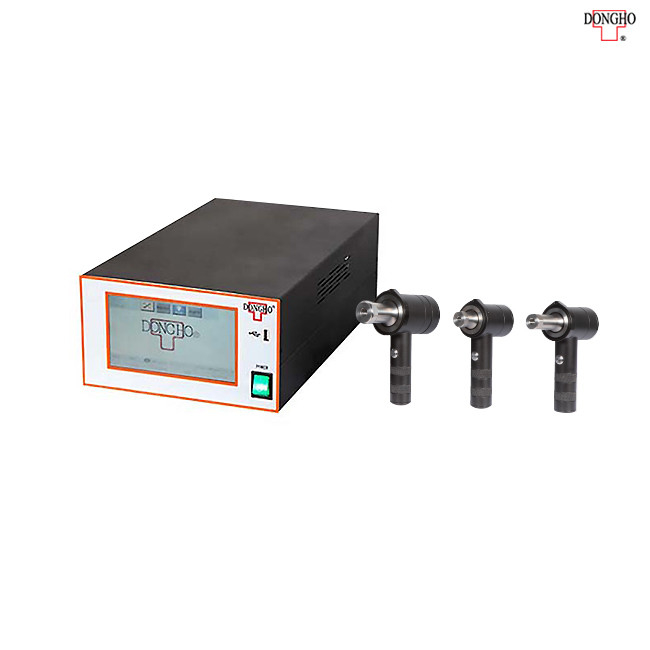

20KHz Handheld Ultrasonic Welding Machine For Plastic Welding
20khz Digital Portable Ultrasonic Spot Welding Machine For Plastic Welding

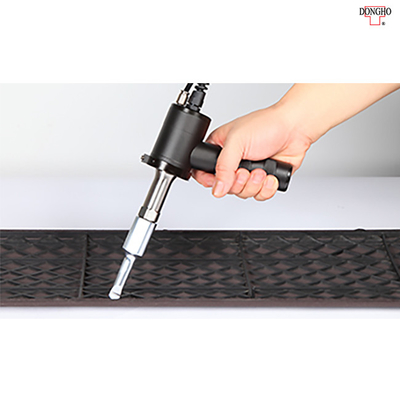

The GSH series is a manual handheld ultrasonic spot welding machine designed for flexible deployment in the plastic welding field.
The ultrasonic welding equipment can be configured as an independent, single-station, or integrated into automated systems. Hand welders are perfect for handling and repairing single materials and small series of materials, it is the ideal application for spot welding, edging, riveting or small spaces cutting, etc.
Technical Parameters:
| Product Name | ultrasonic plastic welding handheld |
| Output interface | 7" color touch screen |
| Control System | iQS operating system |
| Frequency(kHz) | 20KHz |
| Power(W) | 2000W |
| Max Welding time(S) | ≤6S |
| Cooling system | Vortex cooling |
| Operation temperature | +5℃ - +55℃ |
| Voltage(V) | AC220V±5% 50/60Hz |
| Dimension(L*W*H)mm | 68*152*180mm |
| Weight(kg) | 6KG |
| Welding method | Time/Energy |
| Power range(W) | ≤2000W |
| Amplitude control | Single-stage amplitude(10~100%) |
| Quality control | Time/Energy |
| Parameter management | 99 sets |
| Warranty | 1 year |
| Brand | DONGHO |
| Transduction ratio | 90% < real ratio < 100% |
| Frequency precision(kHz) | 19.80KHz-20.20KHz |
| Welding area(φmm) | Depends on material/shape, usually within 100mm |
| Product size | Depends on material/shape, usually within 100mm |
Features:
* Portable, compact design;
* With digital ultrasonic generator technology;
* Low weight, ergonomically designed handle;
* 20kHz,35kHz available;
* Easy to use by reducing the operations.
Application:
The ultrasonic spot welding machine can be used in different areas such as Apparel, Label, Shoes, Poultry, Automobile, Electronic, Packaging, Non-woven, Ribbon, Filter bag, etc. The ultrasonic spot welder can weld many things like clothing fabric, underwear spot welding, logo, woven labels, marks welding or spot welding, TPU vamp positioning spot welding, smoothen shoe head wrinkles, Chicken manure belt, egg conveyor belt welding, Automotive trim wrapping, trim riveting, steering wheel dustproof sleeve welding, Plastic parts, rubber column riveting, soundbox covering cloth, PVC spot welding, plastic box sealing, Face mask, non-woven bag, Ribbon, elastic belt, Velcro, film, etc.
Our Services:
1. Response within 24 hours! All the contacts and emails will be nicely responded to within 30 minutes;
2. From the perspective of customers to help customers analyze and choose suitable products for customers;
3. All after-sales service information will get feedback within 24 hours;
4. On-line technical training and online service are available;
