Product Details:
|
| Product Name: | Ultrasonic Spot Welder 30kHz | Frequency: | 30khz |
|---|---|---|---|
| Power Range: | <=1200W | Voltage: | 220V+-10% 50/60Hz |
| Key Word: | 30kHz Ultrasonic Welding Machine,ultrasonic Handheld Welder | After-sales Service Provided: | Video Technical Support,Online Support |
| High Light: | Ultrasonic Spot Welder 30kHz,30kHz Ultrasonic Plastic Spot Welder,1200 Watt Ultrasonic Spot Welder |
||

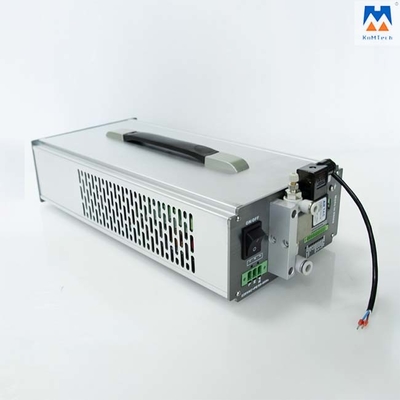

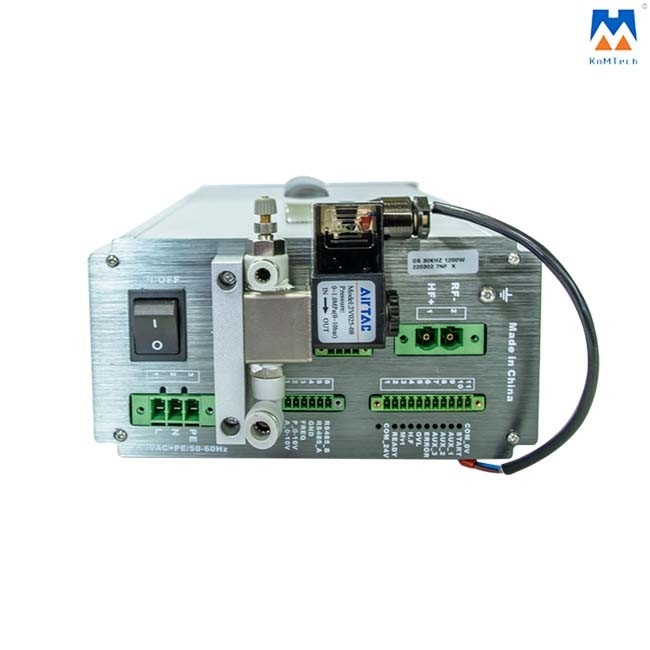

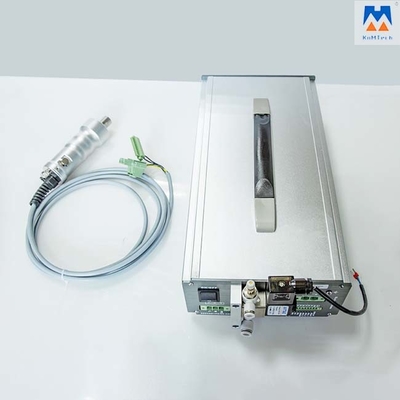

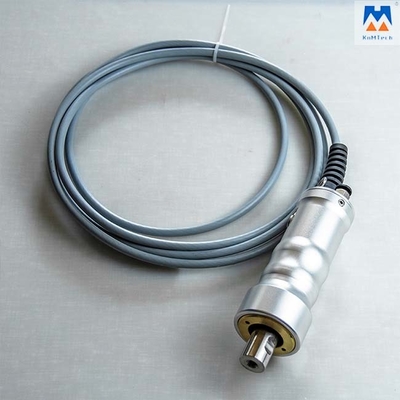

30kHz 1200W Ultrasonic Spot Welder For Plastic Parts Welding
Ultrasonic is an innovative technology with many different applications in various areas. Because of its technical advantages, ultrasound is replacing many established technologies.
Ultrasonic technologies are not only quick and efficient but also extremely eco-friendly for processing thermoplastics, films, and fabrics. The principle of the technology is based on the generation of internal heat (molecular friction) by ultrasound and the boundary friction in the join or separation zones of thermoplastics.
Technical parameters:
| Frequency | 30kHz |
| Power | 1200W |
| Frequency Range | 29.30-30.30Khz |
| Voltage | 220V+-10% |
| Air Source | compressed air |
Features:
| * Real-time frequency automatic tracking function. |
| * Welding time is adjustable |
| * Cooling time is adjustable |
| * Welding amplitude adjustable 10%-100% (1% accuracy) |
| * Amplitude compensation |
| * Welding electrode impedance analysis +protection |
| * Overload protection |
| * Voltage protection |
| * Transducer voltage protection |
Application:
Our 30KHz auto-tuning ultrasonic hand welder can be used for Welding, Joint, Embedding, Spot-welding, Cutting.Welding materials such as acrylonitrile-butadiene-styrene (ABS), polystyrene(PS), SNA, non-woven fabrics, nylon, polyester, paper, leather, PVC, pp, etc.
