Product Details:
|
| Product Name: | Ultrasonic Sealing Device | Frequency: | 35khz |
|---|---|---|---|
| Power Range: | <=300W | Keyword: | Ultrasonic Handheld Joining Machine |
| Working Mode: | External Control/Spot Welding | Welding Gun Weight: | 300g |
| Frequency Accuracy: | 0.1Hz | Generator Weight(kg): | 1.5kg |
| High Light: | Ultrasonic Spot Welder 35KHz,300W Ultrasonic Spot Welder |
||
35KHz Ultrasonic Spot Welder Handheld Sealing Machine 300W For Packaging Welding

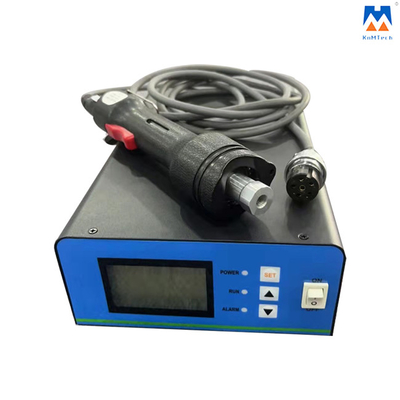

35KHz Handheld Ultrasonic Spot Welder for Packaging Welding

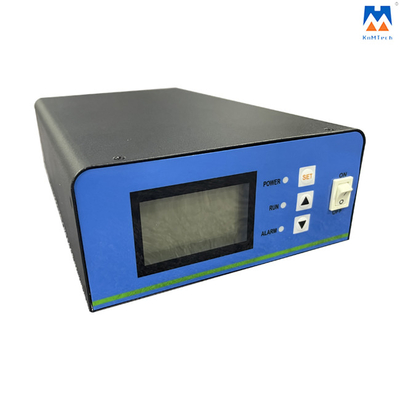

This digital ultrasonic spot welder has a digital ultrasonic power supply that is easy to use with many functions for you to use. The ultrasonic generator has a real-time frequency tracking function, and the welding time is adjustable. The machine core adopts an STM32 high-performance processing chip to realize high-speed communication and real-time parameter calculation to maintain stable operation. The digital generator frequency accuracy can reach 0.1Hz, and it has two welding modes: outer control and spot welding, you can switch working modes between them.
Technical parameters:
| Product Name | Ultrasonic Spot Welder | |
| Model | 28KHz 300W | 35KHz 300W |
| Working mode | External control/Spot welding | |
| Frequency Accuracy | 0.1HZ | |
| Application | Clothing, packaging, food, non-woven fabric, production equipment | |
|

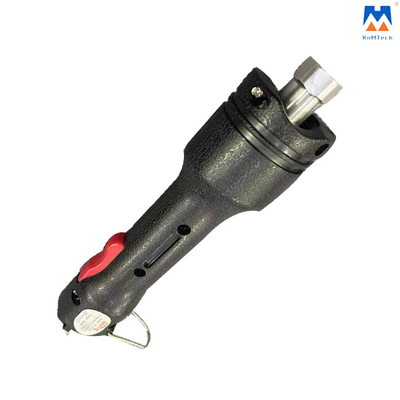

Welding Gun Weight |
300g | |
| Generator Weight | 1500g | |
Features:
1. Larger LCD screen displaying intuitive parameters
2. Automatic tracking and matching the welding horns frequency of various types
3. Self-innovated patented three-stage automatic frequency tracking function
4. Strong & fast power output
5. The bandwidth phenomenon caused by the transducer/horn can also be tracked accurately in real-time
6. Can continue to work in the best state when transducer/horn appears with resonance frequency deviation
7. Light and compact body weighs about 1.5kg to save space
Application:
| Field | Specific Application |
| Apparel | Clothing fabric, underwear spot welding, etc. |
| Label | Logo, woven labels, marks welding or spot welding, etc. |
| Shoe material | TPU vamp positioning spot welding, smoothen shoe head wrinkles, etc. |
| Poultry | Chicken manure belt, egg conveyor belt welding, etc. |
| Packaging | PVC spot welding, plastic box sealing welding, etc. |
| Non-woven | Face mask, non-woven bag welding, etc. |
| Ribbon | Ribbon, elastic belt welding |
| Filter net or bag | Velcro welding, film welding, etc. |
