Product Details:
|
| Product Name: | Multiple Station Ultrasonic Joining Machine | Frequency: | 20KHz |
|---|---|---|---|
| Power: | 3200W | Voltage: | AC220V |
| Warranty: | 1 Year | After-sales Service Provided: | Video Technical Support,Online Support |
| High Light: | 3200W Ultrasound Welder,Multiple Station Ultrasound Welder,Multiple Station Ultrasonic Welder |
||
3200W Ultrasound Welder Multiple Station Ultrasonic Rotary Welding Machine For Plastic Parts

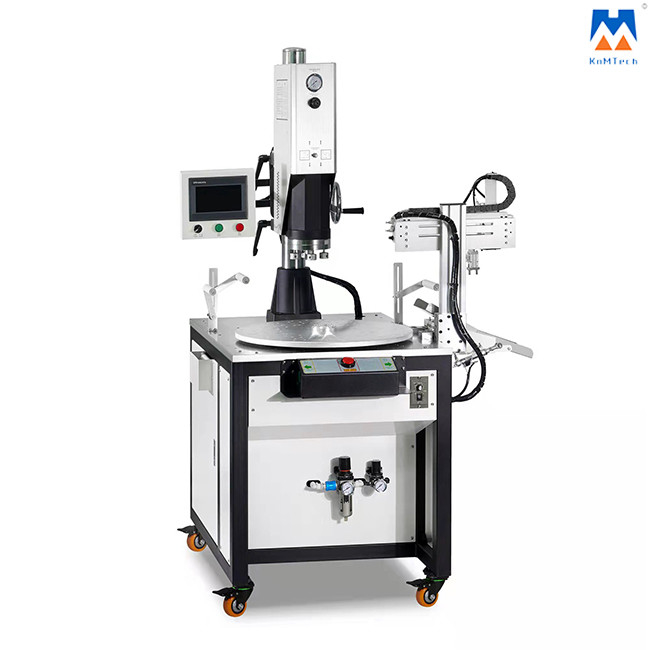

3200W Multiple Station Rotary Ultrasonic Welding Machine

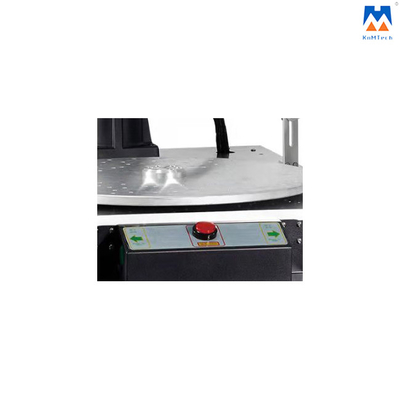

3200W Multiple Station ultrasonic welding machine is customized according to the client's request. Working station numbers are depending on product size and productivity. The index plate is used to host the fixture of the products to be welded, which is controlled by a motor, or servo motor for more precise control. Customize is available, you can tell us your specific application.
The 3200W multiple station rotary ultrasonic welding equipment is strong and with high speed, and the processing is automatic which can reduce the production time.
Technical parameters of the ultrasonic welder:
| Frequency Range | 15K,20K |
| Power Range | 0-3200W |
| Welding mode | time,energy,outer control |
| Horizontal adjustment | Horizontal flange adjustment |
| Capacity | 2400pcs/H |
| Welding Head Lift Way | Manual lifting |
| Voltage | AC220V |
| Working Pressure | 0.15-0.6MPa |
| Dimension(mm) | L1070*W950*H1750 |
| Net Weight(kg) | 300kg |
Configuration:
1. Use Aerdeke, Stars brand pneumatic parts, and well-known brand electrical control parts;
2. Optional automatic film winding mechanism;
3. High-performance precision divider, stable and durable;

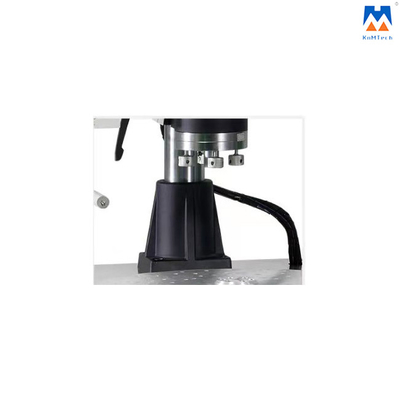

4. Round column or square column is available for the welding head;

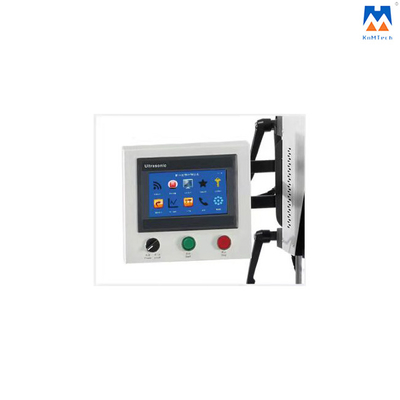

5. Standard 7-inch touch screen, centralized control generator, and PLC, simple and efficient operation; Support welding power curve display. Quality control, welding record saving, and export; Display screen custom editing;
6. Built-in LED working lamp, precise mold adjustment more detailed.

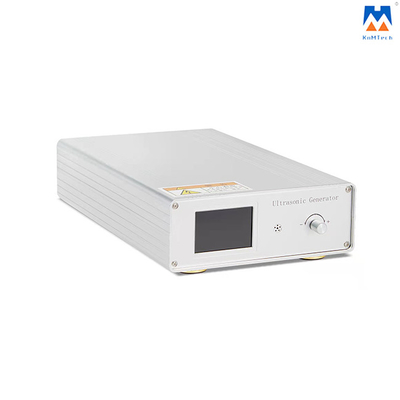

Technical Parameters of the Ultrasonic Generator:
| Auto-tuning Accuracy | 0.1Hz |
| Power Range | 0-6000W |
| Frequency Range | 15K,20K,28K,30K,35K,40K,customized available |
| Working Mode | outer control,spot welding,time,energy |
| Dimension(mm) | L360*W245*H95(small size), L410*W245*H95(big size) |
| Net Weight(kg) | 5.6kg |
Applications:
| Application Industry | Application Products |
| Automotive: | the car door welded baffle welding, automobile, car mats welding, automotive bumper repair welding, cotton insulation doors, seat wipers, engine cover, radiator cap spot, etc |
| Consumer Products: | daily necessities, stationery, filter, folder and shell, pen stand, cosmetics box shell, the end of the toothpaste tube seal, mirror, insulated cup, lighter. |
| Electronics: | recording, audiotape boxes and core wheel, disk enclosure, the board of mobile phone batteries and rectifier transformers, switches and sockets, remote control, |
| Home appliances: | Balance ring, electronic clock, electric trumpeter hairdryer, steam iron water tank, |
| Toy: | plastic toys, water guns, aquatic life video games, children dolls, plastic gifts, etc |
| Film & Fabric: | Filters, Shower Curtains, Biodegradable bags, Non-Woven Face Mark,..etc. |
