Product Details:
|
| Product Name: | Piezoelectric Ceramic Discs For Ultrasonic Convertor | Dimention: | D50x20x6mm/D50x20x5mm |
|---|---|---|---|
| Cone: | Rubber-edge | Thickness: | 6mm/5mm |
| Style: | In-ear | Measuring Medium: | Solid |
| Sensitivity: | High | Usage: | Ceramic Discs For Ultrasonic Welding Convertor |
| High Light: | RSP50 Piezoelectric Ceramic Ring,PZT8 Piezoelectric Ceramic Ring,Rubber edge Piezoelectric Ceramic Ring |
||
RSP50 PZT8 Piezoelectric Ceramic Discs for Ultrasonic Welding Convertor
RSP50 pzt8 piezoelectric ceramic discs for ultrasonic welding, D50*20*6/D50*20*5 for 20KHz ultrasonic welding transducer and converter.
Piezoelectric materials of piezoelectric ceramic discs: PZT4, PZT5, PZT8, or other required piezoelectric materials.
Technical parameters:
| Product Name | 20KHz PZT8 Piezoelectric Ceramic Discs |
| Frequency | 20KHz |
| Outer Dimension | 50mm |
| Inner Dimension | 20mm |
| Thickness | 6mm/5mm |
| Sensitivity | High |
| Measuring Medium | Solid |
| Usage |
ceramic discs for ultrasonic welding convertor |
Features:
* Good stability
* High sensitivity
* Low heat
* High vibration efficiency
Before shipment, we always test each ceramic disc one by one to make sure it can pass the quality control, and every ceramic disc has its testing report as shown:

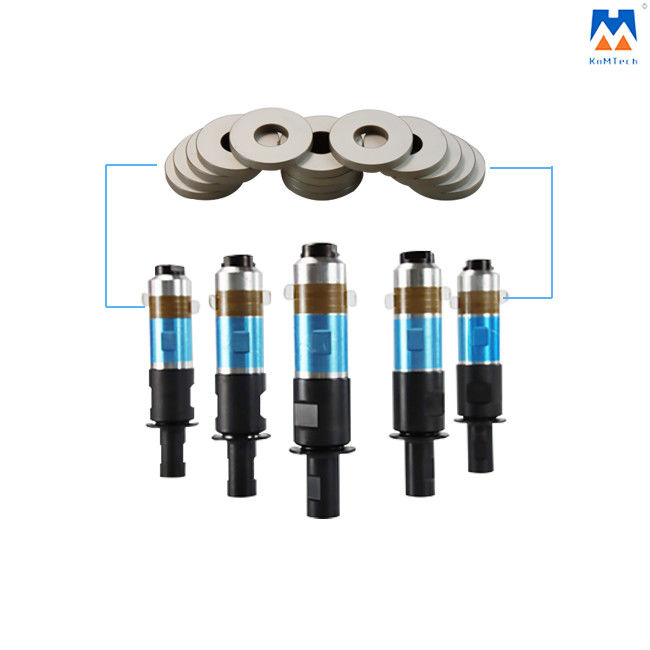

Piezoelectric ceramic discs can be used for ultrasonic welding transducers, ultrasonic cutting transducers. ultrasonic cleaning transducers and so on.
If you need other sizes of piezoelectric ceramic discs, feel free to contact us.

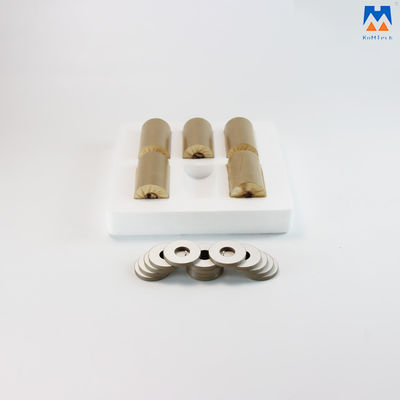

Detailed Photos:
