Product Details:
|
| Product Name: | Ultrasonic Piezoelectric Ceramic Discs | Dimention: | D60*30*10 |
|---|---|---|---|
| Thickness: | 10mm | Pieces Of One Package: | 64 Pieces |
| Weight(one Package): | 11.5kg | Measuring Medium: | Solid |
| Usage: | Ceramic Discs For Ultrasonic Welding Convertor | ||
| High Light: | Ultrasonic Piezo Ceramic Element,PZT8 Piezo Ceramic Element,10mm Piezoelectric Disc |
||

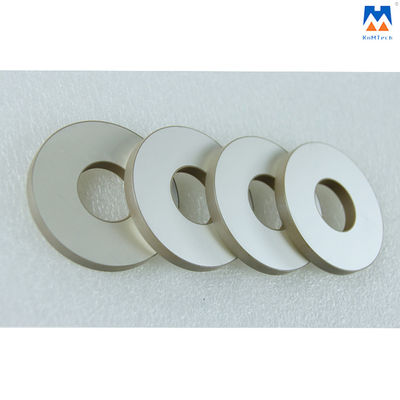

Rsp60 Piezoelectric Disc Pzt Material 60*30*10 Ultrasonic Ceramic Piezo Elements
Technical parameters:
| Product Name | PZT8 Piezoelectric Ceramic Discs |
| Weight(one package) | 11.5kg |
| Pieces of one package | 64 pieces |
| The dimension of the package | 30*30*26cm |

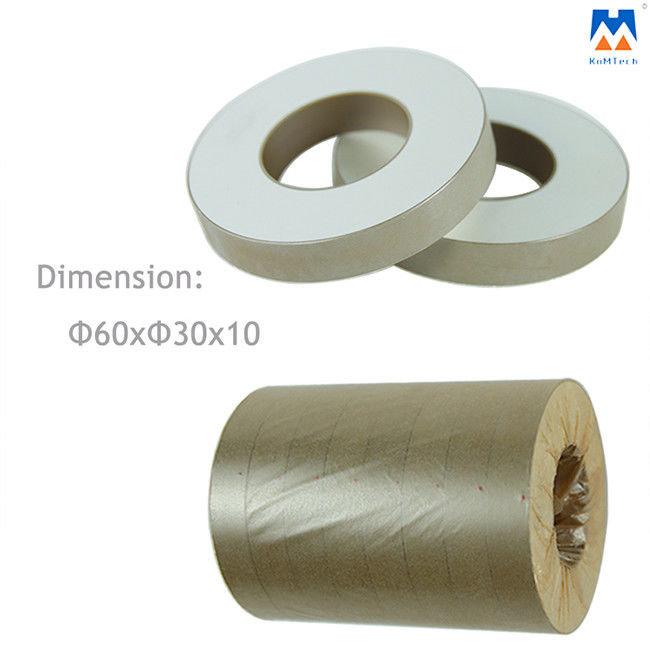

| Outer Dimension | 60mm |
| Inner Dimension | 30mm |
| Thickness | 10mm |
| Sensitivity | High |
| Measuring Medium | Solid |
| Usage |
ceramic discs for ultrasonic welding convertor |
If you need other sizes of piezoelectric ceramic discs, feel free to contact us.
Features:
* Good stability
* High sensitivity
* Low heat
* High vibration efficiency
Piezoelectric ceramic is a kind of information functional ceramic material that can convert mechanical energy and electrical energy into each other - piezoelectric effect.
The working principle of piezoelectric ceramics is energy conversion. Applying pressure to the piezoelectric ceramics to deform the piezoelectric ceramics will generate electricity at both ends of the ceramics. This can let ceramics convert mechanical energy into electrical energy; While applying a changing electric field to piezoelectric ceramics will make a continuous deformation on the ceramics which forms a vibration effect, that is to convert electricity into mechanical energy.
piezoelectric ceramics are mainly used in the manufacture of ultrasonic transducer Underwater acoustic transducer Electroacoustic transducer ceramic filter transformer ceramic discriminator High voltage generator infrared detector surface acoustic wave devices electro-optic devices Ignition detonating device and piezoelectric gyroscope, in addition to the high-tech field.
Piezoelectric materials of piezoelectric ceramic discs: PZT4, PZT5, PZT8, or other required piezoelectric materials.
Piezoelectric ceramic discs can be used for ultrasonic welding transducers, ultrasonic cutting transducers. ultrasonic cleaning transducers and so on.
Before shipment, we always test each ceramic disc one by one to make sure it can pass the quality control, and every ceramic disc has its testing report as shown:
Detailed Photos:
