Product Details:
|
| Product Name: | 2000W Ultrasonic Continuous Welding Set For 3 Ply Face Mask Body Welding Non-woven Fabric Welding | Frequency: | 20KHz |
|---|---|---|---|
| Power: | 2000W | Voltage: | 220V+-10% |
| Working Mode: | Continuous Working | Capacitance: | ≤13nF |
| Horn Dimension: | Length 110mm ×Width 20mm | Keywords: | Ultrasonic Welding |
| High Light: | 110mm×20mm Ultrasonic Horn set,Face Mask Ultrasonic Horn set,2000W Ultrasonic Continuous Welding Set |
||
2000W Ultrasonic Continuous Welding Set for 3 plies Face Mask Body Welding Non-woven Fabric Welding
This 2000W Ultrasonic Continuous Welding Set has a good rating, which is widely used in label cutting, food cutting, small plastic parts spot melting, plastic riveting, non-woven cloth welding, slicing, etc.
K&M TECH is offering a brilliant all-round solution from amongst pneumatic welding machines. It guarantees extremely good production reliability and quality and pays for itself within a short period of time. The 2000W Ultrasonic Continuous Welding Set is easy to install and operate. You can refer to the following parameters for further details.
Ultrasonic Generator
| Dimension: | Length 340mm×Width 210mm×Height 94mm |
| Net weight of main body: | 4 KG |
| Frequency: | 20KHZ |
| Output power: | 2000W |
| Voltage: | 220V+-10% |
| Material: | Iron |
| Sine harmonic wave parameter: | ≥97% |
| Input power factor: | ≥80% |
| Working Mode: | continuous working |
| Working frequency: | 15KHz/20KHz/28KHz/30KHZ/35KHz/40KHz |
| Working power supply: | AC220V 50Hz/60Hz |
| Scope of mould frequency: | ±400HZ(Sample as 15KHZ ultrasonic, ability to use for automatic frequency chase when mould frequency from 14.40 kHz to 15.20 kHz) |
| Automatic frequency chase precision: | ±5HZ |
| Power steady ratio: | ≤ 5% |
| When remote terminal dynamic responding: | ≤10ms |
| Over-current protect current: | 15A |
| Time of over-current protection: | 100ms |
Ultrasonic Transducer:
| Resonant Frequency: | 20KHZ |
| Impedance : | R:3~10Ω, Refers to the resistance measured by a similar instrument such as a resistance characteristic analyzer |
| Capacitance : | CT:≤13nF, Free capacitance of 20KHz ultrasonic transducer |
| Maximum Power: | P:2000W, Machine manufacturers may have different regulations for the nominal power of machines for different purposes. In other words, the same transducer may have different nominal power for different machines. Therefore, when choosing an ultrasonic transducer, you can only refer to its maximum power |
| Working Mode: | continuous working |
| Humidity Of Working Environment: | relative humidity ≤85% (non-condensing) |
| Material: | aluminum alloy for the convertor, stainless steel for the booster. |
| Net weight of main body: | 2.6KG |
Ultrasonic Horn:
| Dimension: | Length 110mm ×Width 20mm |
| Frequency: | 20KHZ |
| Net weight of main body: | 3.1KG |
| Material: | Steel |
Flange:
| Frequency: | 20KHZ |
| Inner Diameter: | 33mm |
| External Diameter: | 106mm |
| Thickness: | 30mm |
| Material: | Steel |
| Net weight of main body: | 1.1KG |
Features:
| * Real time frequency auto tracking display |
| * Welding modes: Time, Energy, Grounding |
| * Welding amplitude: 10%~100% adjustable (1% accuracy) |
| * Amplitude compensation |
| * Welding horn impedence analysis+protection |
| * Overload protection |
| * Voltage protection |
| * Transducer voltage protection |
| * Quality management (time and energy) |
| * Welding record (operation statistics) |
| * Powerful and stable welding result. |
Application:
| Automotive: | Auto and motorcycle plastic parts,battery, glove box, Plastic fuel tank, Intake manifold, Plastic muffler, Expansion Tank, front corner lamp, rear tail light, instrument, reflectors, automotive manual welding jacket, the car door welded baffle welding, automobile, car mats welding, automotive bumper repair welding, cotton insulation doors, seat wipers, engine cover, radiator cap spot, etc |
| Consumer Products: | daily necessities, stationery, filter, folder and shell, pen stand, cosmetics box shell, the end of the toothpaste tube seal, mirror, insulated cup, lighter, seasoning bottles sealed the container, etc |
| Electronics: | recording, audio tape boxes and core wheel, disk enclosure, the board of mobile phone batteries and rectifier transformers, switches and sockets, remote control, electronic swatter, pseudo-imitation caps, etc |
| Home appliances: | Balance ring, electronic clock, electric trumpeter hair dryer, steam iron water tank, electric kettle air-Hsiang, computer, etc |
| Toy: | plastic toys, water guns, aquatic life video game, children dolls, plastic gifts, etc |
| Film & Fabric: | Filters, Shower Curtains, Biodegradable Bag, Non-Woven Face Mark,..etc. |
| Packaging: | Plastic pallet, Corrugated tray, hollow crate welding, zip lock welded, etc |
| Medical: | Surgical Instruments,Testing Equipment,filters,I-V units,insulated trays..etc. |

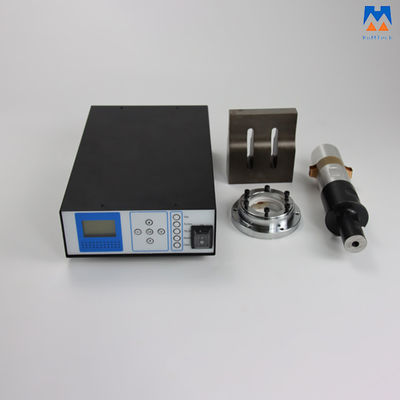

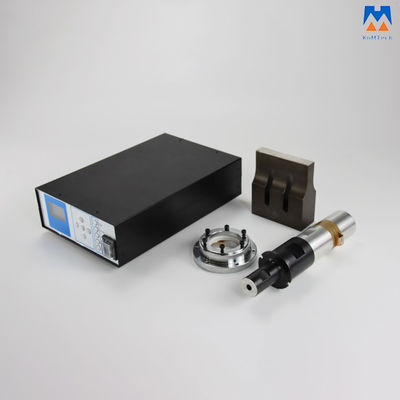

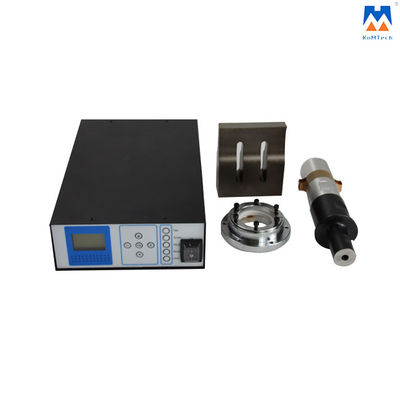

Detailed Photos:
