Product Details:
|
| Product Name: | Digital Ultrasonic Set For N95 Face Mask Welding(PLC Type) | Frequency: | 15KHz |
|---|---|---|---|
| Power: | 2600W | Voltage: | AC 220V, 50/60Hz |
| Specification(L*W*H): | 400mm*195mm*98mm | Weight: | 14kg |
| Electric Current: | AC | Cooling Way: | Air Cooling |
| High Light: | 2600W Ultrasonic Generator Transducer,15KHz Ultrasonic Generator Transducer,20nf Ultrasonic Welding Set |
||
Digital Ultrasonic Set for N95 Face Mask Welding(PLC Type)
The ultrasonic welding generator in this ultrasonic welding set is a smart digital and with built-in PLC control type generator,which has four functions:Paramer setting,Protection Function,Factory setting,Constant amplitude verification.You can adjust the corresponding setting according to your products and application.
Technical parameters:
Generator
| Dimension | Length 400mm×Width 195mm×Height 98mm |
| Net weight Of Main Body | 7 Kg |
| Frequency Range | 14.40-15.20kHz |
| Output Power | 2600w/3000w/4000w |
| Voltage | 220V+-10% |
| Welding Mode | Continuous Welding |
| Function | Real-time frequency automatic tracking function |
| Amplitude compensation | |
| Protection | Welding electrode impedance analysis +protection |
| Voltage protection | |
| Transducer voltage protection | |
| Welding Time | adjustable |
| Working Frequency (options) | 15KHZ |
| Welding Amplitude | adjustable 10%-100% (1% accuracy) |
Transducer
| Resonant Frequency | 15KHZ |
| Impedance | R:3~10Ω, Refers to the resistance measured by a similar instrument such as a resistance characteristic analyzer |
| Capacitance | 13-~14nf |
| Maximum Power | P:2600W, Machine manufacturers may have different regulations for the nominal power of machines for different purposes. In other words, the same transducer may have different nominal power for different machines. Therefore, when choosing an ultrasonic transducer, you can only refer to its maximum power |
| Working Mode | continuous working |
| Humidity Of Working Environment | relative humidity ≤85% (non-condensing) |
| Material | aluminum alloy for the convertor, stainless steel for the booster |
| Joint bolt | M20*1.5 |
| Ceramic disc Diameter | 60mm |
| Quantity of Ceramic discs | 4 pcs |
Horn
| Dimension | Length 120mm ×Width 25mm |
| Frequency | 15KHZ |
| Net weight of the main body | 14.8KG |
| Material | steel/Aluminium Alloy/Titanium Alloy |
Flange
| Frequency | 15KHZ |
| Inner Diameter | 65mm |
| External Diameter | 115mm |
| Thickness | 40mm |
| Material | Steel |
| Net weight of the main body | 1.4KG |
Features:
* generator with PLC control system,touch screen
* Real-time frequency automatic tracking display;
* Welding mode: time, energy, grounding
* Amplitude step function
* Welding amplitude 10-100 adjustable (1% accuracy)
* Amplitude compensation;
* Mold impedance analysis + protection
* Overload protection;
* Voltage protection (input)
* Transducer voltage protection;
* 485 communication
Warranty:
*12 months since delivery for ultrasonic welding generator
* Three months since delivery for the ultrasonic transducer and welding horn
* Lifelong service with charge after the warranty period.

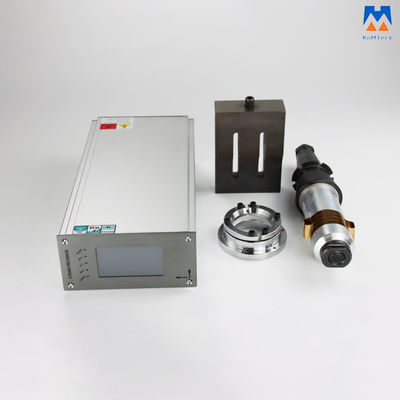

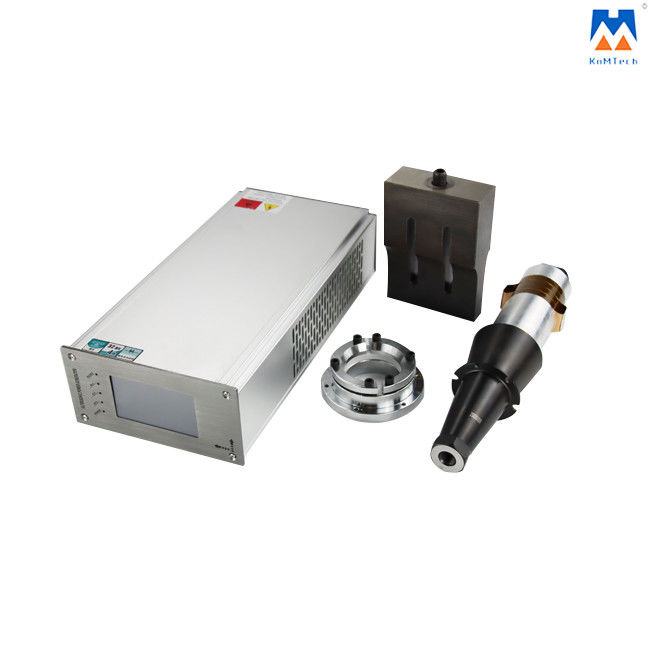

Detailed Photos:
