Product Details:
|
| Product Name: | 15KHz Ultrasonic Intermittent Welding Set Non-Woven Fabric Welding Plastic Welding | Frequency: | 15KHz |
|---|---|---|---|
| Power: | 2600W | Voltage: | 220V+-10% |
| Working Mode: | Intermittent Working | Capacitance: | ≤13nF |
| Horn Dimension: | Length 110mm ×Width 20mm | After-sales Service Provided: | Video Technical Support |
| High Light: | 4KG Ultrasound Generator Welding Set,Intermittent Ultrasonic Welding Set,2600W Ultrasonic Welding Set |
||
15KHz Ultrasonic Intermittent Welding Set Non-Woven Fabric Welding Plastic Welding
This 15KHz ultrasonic welding set is for intermittent welding, which has a good rating, and is widely used in label cutting, food cutting, small plastic parts spot melting, plastic riveting, non-woven cloth welding, slicing, etc.
K&M TECH is offering a brilliant all-around solution from amongst pneumatic welding machines. It guarantees extremely good production reliability and quality and pays for itself within a short period of time. The 15KHz Ultrasonic Intermittent Welding Set is easy to install and operate. You can refer to the following parameters for further details.
Ultrasonic Generator
| Dimension: | Length 340mm×Width 210mm×Height 94mm |
| Net weight of main body: | 4 KG |
| Frequency: | 15KHz |
| Output power: | 2600W |
| Voltage: | 220V+-10% |
| Material: | Iron |
| Sine harmonic wave parameter: | ≥97% |
| Input power factor: | ≥80% |
| Working Mode: | intermittent working |
| Working frequency: | 15KHz/20KHz/28KHz/30KHZ/35KHz/40KHz |
| Working power supply: | AC220V 50Hz/60Hz |
| Scope of mould frequency: | ±400HZ(Sample as 15KHZ ultrasonic, ability to use for automatic frequency chase when mould frequency from 14.40 kHz to 15.20 kHz) |
| Automatic frequency chase precision: | ±5HZ |
| Power steady ratio: | ≤ 5% |
| When remote terminal dynamic responding: | ≤10ms |
| Over-current protect current: | 15A |
| Time of over-current protection: | 100ms |
Ultrasonic Transducer:
| Resonant Frequency: | 15KHz |
| Impedance : | R:3~10Ω, Refers to the resistance measured by a similar instrument such as a resistance characteristic analyzer |
| Capacitance : | CT:≤13nF, Free capacitance of 20KHz ultrasonic transducer |
| Maximum Power: | P:2000W, Machine manufacturers may have different regulations for the nominal power of machines for different purposes. In other words, the same transducer may have different nominal power for different machines. Therefore, when choosing an ultrasonic transducer, you can only refer to its maximum power |
| Working Mode: | intermittent working |
| Humidity Of Working Environment: | relative humidity ≤85% (non-condensing) |
| Material: | aluminum alloy for the convertor, stainless steel for the booster. |
| Net weight of main body: | 2.6KG |
Ultrasonic Horn:
| Dimension: | Length 200mm ×Width 25mm |
| Frequency: | 15KHz |
| Net weight of main body: | 3.1KG |
| Material: | Steel |
Flange:
| Frequency: | 15KHz |
| Inner Diameter: | 33mm |
| External Diameter: | 106mm |
| Thickness: | 30mm |
| Material: | Steel |
| Net weight of main body: | 1.1KG |
Features:
Applications:
| Automotive: | Auto and motorcycle plastic parts, battery, glove box, Plastic fuel tank, Intake manifold, etc |
| Electronics: | recording, audiotape boxes and core wheel, disk enclosure, the board of mobile phone batteries and rectifier transformers, switches and sockets, remote control, electronic swatter, pseudo-imitation caps, etc |
| Home appliances: | Balance ring, electronic clock, electric trumpeter hairdryer, steam iron water tank, electric kettle air-Hsiang, computer, etc |
| Toy: | plastic toys, water guns, aquatic life video game, children dolls, plastic gifts, etc |
| Medical: | Surgical Instruments,Testing Equipment,filters,I-V units,insulated trays..etc. |

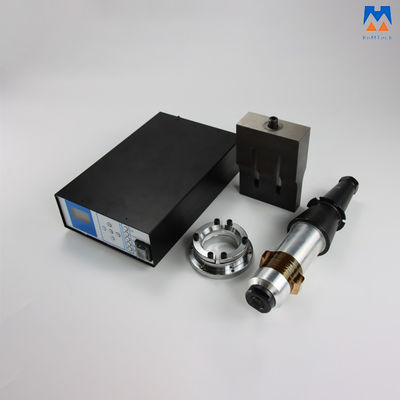

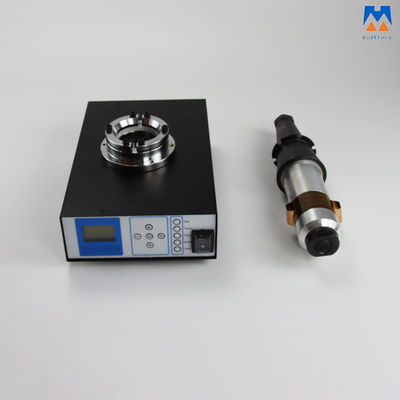

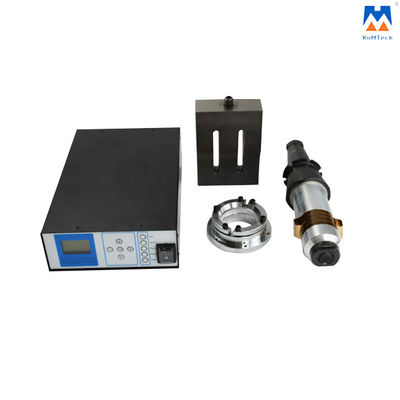

Detailed Photos:
