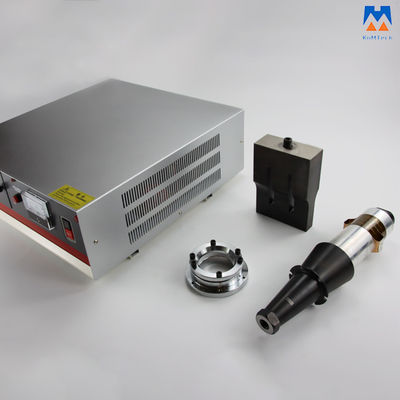

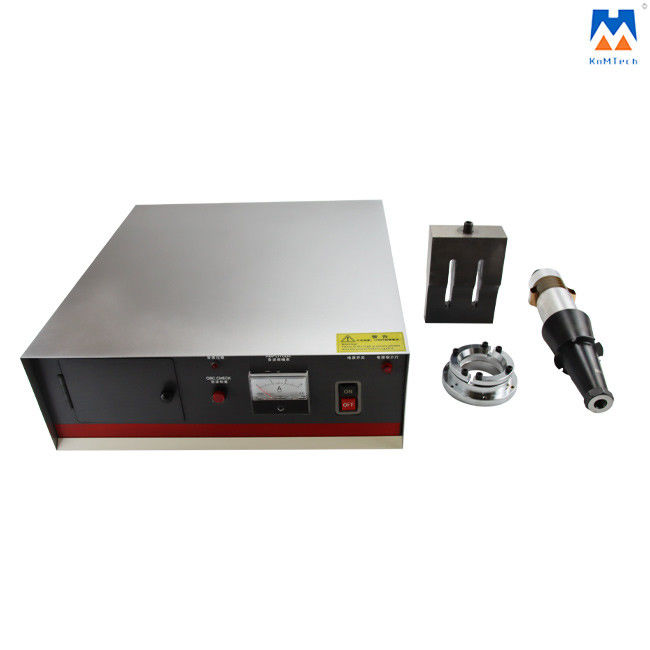

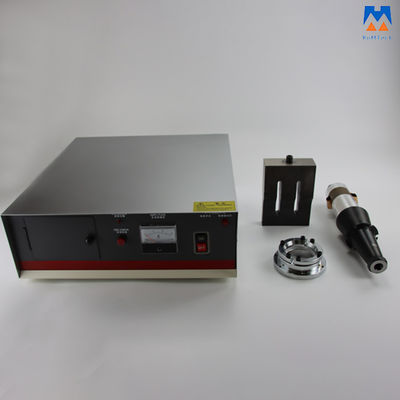

2.6KW Ultrasonic Welding Machine with Generator Transducer and Horn

2.6KW Ultrasonic Welding Machine with Generator Transducer and Horn
2.6KW Ultrasonic Welding Machine with Generator Transducer and Horn
2.6KW Ultrasonic Welding Machine with Generator Transducer and Horn 2.6KW Ultrasonic Welding Machine with Generator Transducer and Horn 2.6KW Ultrasonic Welding Machine with Generator Transducer and Horn 2.6KW Ultrasonic Welding Machine with Generator Transducer and Horn 2.6KW Ultrasonic Welding Machine with Generator Transducer and Horn

Large Image :  2.6KW Ultrasonic Welding Machine with Generator Transducer and Horn

Product Details:
Place of Origin: China
Brand Name: KnMTech
Model Number: KM-ME-S1526
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: paper/wood carton
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Paypal
Supply Ability: 500sets per month

2.6KW Ultrasonic Welding Machine with Generator Transducer and Horn

Description
Product Name: 15KHz Intermittent Ultrasonic Welding Set For Non-Woven Fabric Ultrasonic Welding Machine Voltage: AC220V
Output Power: 2600w/3000w/4000w Working Frequency: 15KHz
Weight: 35.3kg Welding Time: Adjustable
Welding Mode: Pause Welding/continuous Welding Keywords: Ultrasonic Welding
After-sales Service Provided: Video Technical Support
High Light:

2.6KW Ultrasonic Welding Set

,

AC220V ultrasonic welding system

,

15KHz Intermittent Ultrasonic Welding Set

15KHz Intermittent Ultrasonic Welding Set For Non-Woven Fabric Ultrasonic Welding Machine


Ultrasonic plastic welding technology is used to convert high-frequency electrical energy into mechanical vibration energy through an ultrasonic transducer, and then the mechanical vibration energy is changed by the strip device to transmit the amplitude to the welding head.



When the welding head is close to the surface of the processed product, the ultrasonic wave is automatically generated, and the micro-amplitude high-frequency vibration is performed on the surface of the processed product, and the surface friction of the processed product is converted into heat, and the processed product is melted and then welded. because the spot welding is performed. The operation is relatively perfect for welding, and the welding of different effects is obtained by replacing the welding head.

This 15KHz Intermittent Ultrasonic Welding Set has a good rating, which is widely used in label cutting, food cutting, small plastic parts spot melting, plastic riveting, non-woven cloth welding, slicing, etc.

Technical parameters:

Generator



Dimension Length 530mm×Width 460mm×Height 170mm
Net weight Of Main Body 14 Kg
Frequency Range 14.40-15.20kHz
Output Power 2600W
Voltage 220V+-10%
Welding Mode Intermittent Welding
Welding Time 0.00s-9.99s
Protection Welding electrode impedance analysis +protection
Voltage protection
Transducer voltage protection
Working Frequency (options) 15KHZ
Welding Amplitude adjustable 10%-100% (1% accuracy)
Air source purified air with a particle diameter of less than 5μm, 7kgf/cm2


Transducer



Resonant Frequency 15KHZ
Impedance R:3~10Ω, Refers to the resistance measured by a similar instrument such as a resistance characteristic analyzer
Capacitance 11-~12nf
Maximum Power P:2600W, Machine manufacturers may have different regulations for the nominal power of machines for different purposes.
In other words, the same transducer may have different nominal power for different machines.
Therefore, when choosing an ultrasonic transducer, you can only refer to its maximum power
Working Mode Intermittent working
Humidity Of Working Environment relative humidity ≤85% (non-condensing)
Material aluminum alloy for the convertor, stainless steel for the booster
Joint bolt M20*1.5
Ceramic disc Diameter 60mm
Quantity of Ceramic discs 4 pcs
Net weight of the main body 5.3KG




Horn



Dimension Length 120mm × Width 25mm
Frequency 15KHZ
Net weight of the main body 14.8KG
Material steel


Flange



Frequency 15KHZ
Inner Diameter 65mm
External Diameter 115mm
Thickness 40mm
Material Steel
Net weight of the main body 1.4KG


Features:

1. High-quality ultrasonic transducer with strong power and good stability.
2. The product has high power and strong output.



Application:


Automotive Auto and motorcycle plastic parts, battery, glove box, Plastic fuel tank, Intake manifold, Plastic muffler, Expansion Tank, front corner lamp, etc.
Electronics recording, audiotape boxes and core wheel, disk enclosure, etc
Home appliances Balance ring, electronic clock, electric trumpeter hairdryer, steam iron water tank, etc
Toy plastic toys, water guns, aquatic life video game, etc
Packaging Plastic pallet, Corrugated tray, etc
Medical Surgical Instruments,Testing Equipment,filters,I-V units,insulated trays.etc.

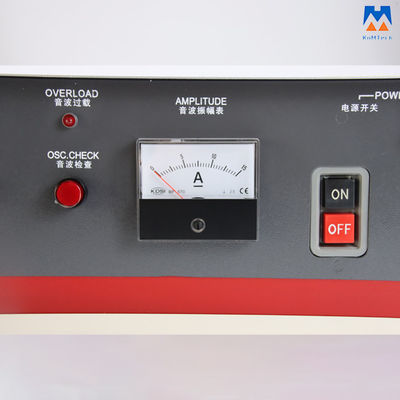

Detailed Photos:



2.6KW Ultrasonic Welding Machine with Generator Transducer and Horn 0


 2.6KW Ultrasonic Welding Machine with Generator Transducer and Horn 1
