Product Details:
|
| Product Name: | 20KHz Intermittent Ultrasonic Welding Set For Plastic Welding | Power Supply:: | AC220V 50Hz |
|---|---|---|---|
| Output Power: | 1800W | Working Frequency: | 20KHz |
| Welding Time: | Adjustable | Welding Amplitude: | Adjustable 10%-100% (1% Accuracy) |
| Usage: | Plastic Ultrasonic Welding | After-sales Service Provided: | Video Technical Support |
| High Light: | 20kHz ultrasound welding set,1% accuracy Ultrasonic Welding Set,KnMTech Ultrasonic welder |
||
20KHz intermittent ultrasonic welding set for plastic welding
The K&M Tech standard machine gives ultrasonic welding a new dimension: it combines high-performance ultrasonic components with high-quality construction and up-to-date control solutions. Compared with its predecessors the functionality of the K&M Tech has been improved and handling simplified.
This 20KHz intermittent ultrasonic welding set for plastic welding has a good rating, which is widely used in label cutting, food cutting, small plastic parts spot melting, plastic riveting, non-woven cloth welding, slicing, etc
Technical parameters:
Generator
| Dimension | Length 530mm×Width 460mm×Height 170mm |
| Net weight Of Main Body | 14 Kg |
| Frequency Range | 19.40-20.20kHz |
| Output Power | 1800W |
| Voltage | 220V+-10% |
| Welding Mode | Intermittent Welding |
| Welding Time | 0.00s-9.99s |
| Protection | Welding electrode impedance analysis +protection |
| Voltage protection | |
| Transducer voltage protection | |
| Working Frequency (options) | 20KHz |
| Welding Amplitude | adjustable 10%-100% (1% accuracy) |
| Air source | purified air with particle diameter of less than 5μm, 7kgf/cm2 |
Transducer
| Resonant Frequency | 20KHz |
| Impedance | R:3~10Ω,Refers to the resistance measured by a similar instrument such as a resistance characteristic analyzer |
| Capacitance | 11-~12nf |
| Maximum Power | P:1800W, Machine manufacturers may have different regulations for the nominal power of machines for different purposes. In other words, the same transducer may have different nominal power for different machines. Therefore, when choosing an ultrasonic transducer, you can only refer to its maximum power |
| Working Mode | Intermittent working |
| Humidity Of Working Environment | relative humidity ≤85% (non-condensing) |
| Material | aluminum alloy for the convertor, stainless steel for the booster |
| Joint bolt | M12 |
| Ceramic disc Diameter | 60mm |
| Quantity of Ceramic discs | 4 pcs |
| Net weight of main body | 5.3KG |
Horn
| Dimension | Length 110mm × Width 20mm |
| Frequency | 20KHz |
| Net weight of main body | 3KG |
| Material | steel |
Flange
| Frequency | 20KHz |
| Inner Diameter | 65mm |
| External Diameter | 115mm |
| Thickness | 40mm |
| Material | Steel |
| Net weight of main body | 1.4KG |
Features:
1. High quality imported ultrasonic transducer with strong power and good stability.
2. The design of the whole machine is exquisite, and the small size does not occupy space.
3. The product has high power and strong output.
4. Assembly of high quality imported parts of main parts.
5. The noise is slight and the working environment is environmentally friendly.
Application:
| Automotive | Automotive bumper repair welding, cotton insulation doors, seat wipers, engine cover, radiator cap spot, etc |
| Electronics | Switches and sockets, remote control, electronic swatter, pseudo-imitation caps, etc |
| Home appliances | Balance ring, electronic clock, computer, etc |
| Toy | plastic toys, plastic gifts, etc |
| Packaging | Corrugated tray, zip lock welded, etc |
| Medical | Testing Equipment,filters, insulated trays..etc. |

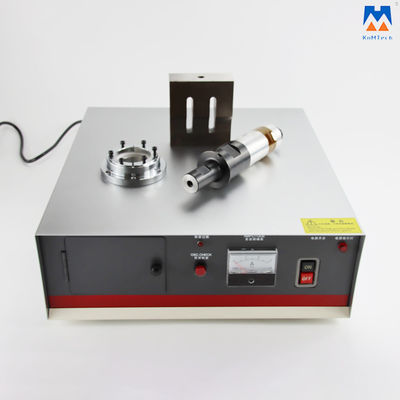

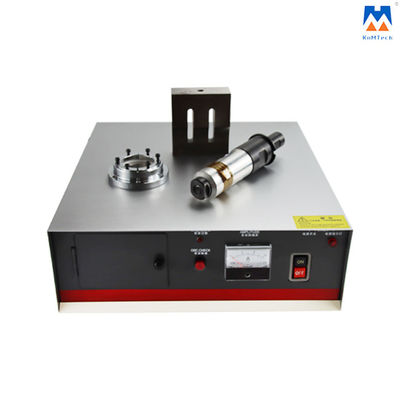

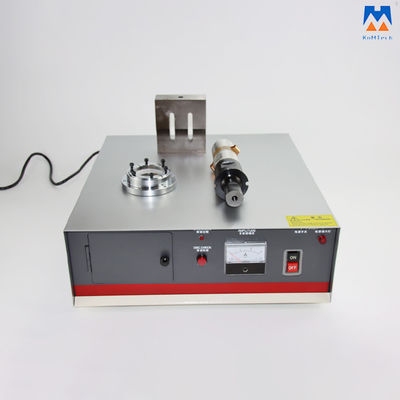

Detailed Photos:
