Product Details:
|
| Product Name: | 20KHz 2000W Ultrasonic Intermittent Welding Set | Frequency: | 20KHz |
|---|---|---|---|
| Power: | 2000W | Voltage: | 220V+-10% |
| Working Mode: | Intermittent Working | Capacitance: | ≤13nF |
| Horn Dimension: | Length 110mm ×Width 20mm | ||
| High Light: | 2000W Ultrasonic Intermittent Welding Set,20KHz Ultrasonic Intermittent Welding Set,Plastic Welding ultrasonic generator transducer |
||
20KHz 2000W Ultrasonic Intermittent Welding Set Ultrasonic Plastic Welding
20KHz 2000W Ultrasonic Intermittent Welding Set has a good rating, which is widely used in the label cutting, food cutting, small plastic parts spot melting, plastic riveting, non-woven cloth welding, slicing etc.
K&M TECH is offering a brilliant all-round solution from amongst pneumatic welding machines. It guarantees extremely good production reliability and quality and pays for itself within a short period of time. The 20KHz 2000W Ultrasonic Intermittent Welding Set is easy to install and operate. You can refer to the following parameters for further details.
Ultrasonic Generator
| Dimension: | Length 340mm×Width 210mm×Height 94mm |
| Net weight of main body: | 4 KG |
| Frequency: | 20KHZ |
| Output power: | 2000W |
| Voltage: | 220V+-10% |
| Material: | Iron |
| Sine harmonic wave parameter: | ≥97% |
| Input power factor: | ≥80% |
| Working Mode: | intermittent working |
| Working frequency: | 15KHz/20KHz/28KHz/30KHZ/35KHz/40KHz |
| Working power supply: | AC220V 50Hz/60Hz |
| Scope of mould frequency: | ±400HZ(Sample as 15KHZ ultrasonic, ability to use for automatic frequency chase when mould frequency from 14.40 kHz to 15.20 kHz) |
| Automatic frequency chase precision: | ±5HZ |
| Power steady ratio: | ≤ 5% |
| When remote terminal dynamic responding: | ≤10ms |
| Over-current protect current: | 15A |
| Time of over-current protection: | 100ms |
Ultrasonic Transducer:
| Resonant Frequency: | 20KHZ |
| Impedance : | R:3~10Ω, Refers to the resistance measured by a similar instrument such as a resistance characteristic analyzer |
| Capacitance : | CT:≤13nF, Free capacitance of 20KHz ultrasonic transducer |
| Maximum Power: | P:2000W, Machine manufacturers may have different regulations for the nominal power of machines for different purposes. In other words, the same transducer may have different nominal power for different machines. Therefore, when choosing an ultrasonic transducer, you can only refer to its maximum power |
| Working Mode: | intermittent working |
| Humidity Of Working Environment: | relative humidity ≤85% (non-condensing) |
| Material: | aluminum alloy for the convertor, stainless steel for the booster. |
| Net weight of main body: | 2.6KG |
Ultrasonic Horn:
| Dimension: | Length 110mm ×Width 20mm |
| Frequency: | 20KHZ |
| Net weight of main body: | 3.1KG |
| Material: | Steel |
Flange:
| Frequency: | 20KHZ |
| Inner Diameter: | 33mm |
| External Diameter: | 106mm |
| Thickness: | 30mm |
| Material: | Steel |
| Net weight of main body: | 1.1KG |
Features:
Applications:
The ultrasonic welding system can be used for toner cartridges, inkjet cartridges, automotive instrument panels, auto lights, automotive bumpers, electronic products, home appliances, medical products, toys, telecommunication apparatus, etc.

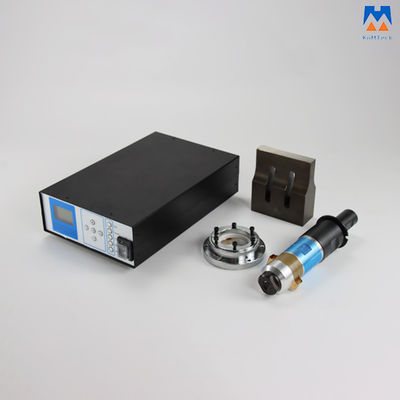

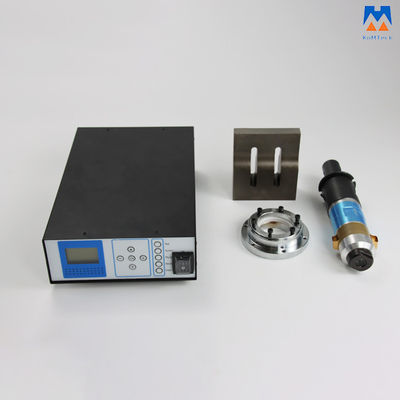

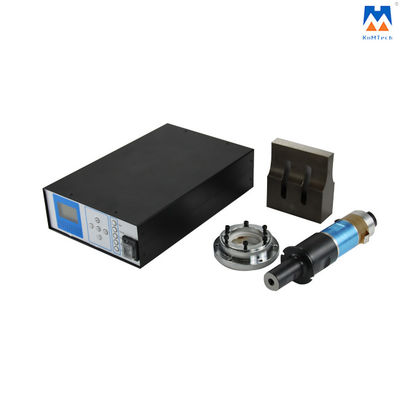

Detailed Photos:
