Product Details:
|
| Product Name: | 20kHz Km-Ss Ultrasound Welding Machine Accessories | Power: | 2600W |
|---|---|---|---|
| Weight: | 28.2kg | Voltage: | 220V/50HZ |
| Warranty: | 1 Year | Welding Time: | 0.01-9.99S/Time |
| Type: | Ultrasonic Welding | After-sales Service Provided: | Video Technical Support,Online Support |
| High Light: | 1.5KW Ultrasonic Welding Machines,450kg Ultrasonic Welding Machines,100pcs/min ultrasonic welding equipment |
||

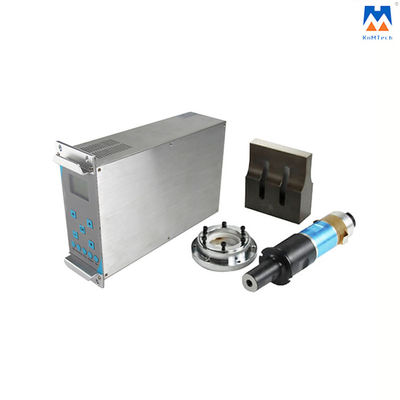

Ultrasonic Intermittent Generator Set for Mask Welding
This type of ultrasonic set is widely used in mask-making machines and fabric welding machines. The generator is the newly upgraded type with a more compact design and a more stable operating system. The transducer is our classical type with a high reputation. The horn is customized as per the customer's demands and made of SKD11 steel with a hardness-treated surface. The flange is made of stainless steel.
Technical parameters:
Generator:
| Dimension: | L90mm×W320mm×H230mm |
| Net Weight: | 4Kg |
| Output power: | 0-2600W |
| Output voltage: | 0-220V AC |
| Ambient temperature: | +5°C - +50°C |
| Harmonic Sinusoidal rate ≥97% | |
| Input power factor ≥80% | |
| Working frequency: | 20KHz |
| Power supply: | AC220V 50Hz |
| Working mode | Intermittent |
| Horn frequency scope: | ±400HZ(take 15KHZ as example, the horn frequency can be 14.40-15.20KHZ, auto-tuning) |
| Auto-tuning accuracy: | ±5HZ |
| Power fluctuation: | ≤ 5% |
| Remote terminal dynamic response time: | ≤10ms |
| Over-current protection: | 15A |

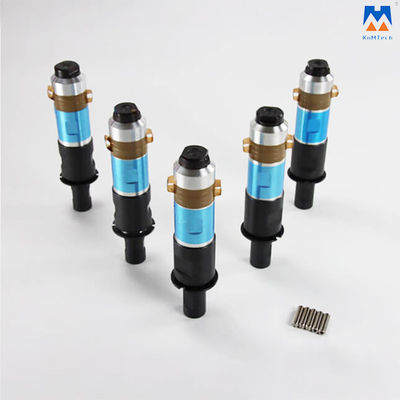

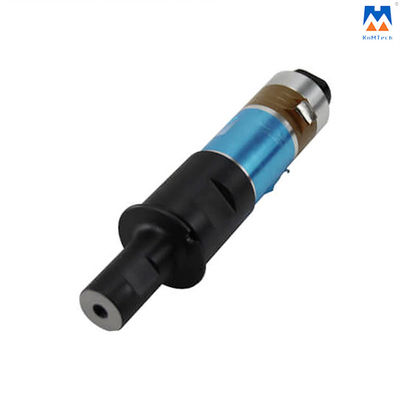

Transducer:
| Resonant Frequency | 20KHZ |
| Impedance | R:3~10Ω,Refers to the resistance measured by a similar instrument such as a resistance characteristic analyzer |
| Capacitance | CT:≤13nF,Free capacitance of 20KHz ultrasonic transducer |
| Working Mode | Intermittent working |
| Humidity Of Working Environment | relative humidity ≤85% (non-condensing) |
| Material | aluminum alloy for the converter, stainless steel for the booster. |
| Net weight of the main body | 3KG |
Horn:
| Dimension | Length 110mm ×Width 20mm(customizable) |
| Frequency | 20KHZ |
| Net weight of the main body | 3.1KG |
| Material | Steel(customizable) |

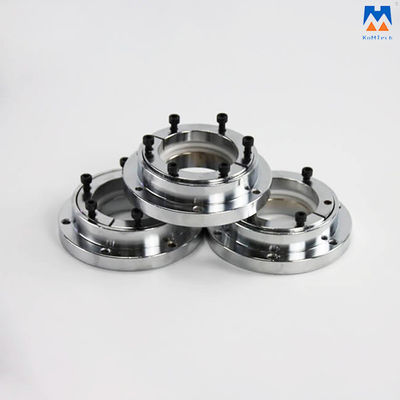

Flange:
| Frequency | 20KHZ |
| Inner Diameter | 33mm |
| External Diameter | 106mm |
| Thickness | 30mm |
| Material | Steel |
| Net weight of the main body | 1.1KG |
FAQ:
1.What's your MOQ?
Usually, we don't limit a MOQ for testing, just decide the QTY by yourself.
2. How about your delivery time?
Usually, we have some stock for trial or small orders, so we could deliver them within 7 days. While we need 15-60 days for large orders and customized production lines.
1-2 units we could send by EXPRESS(DHL,UPS,FEDEX,TNT,EMS),heavyweight more than 50kg, we suggest to use sea freight LCL or by air
3. What's the warranty of your ultrasonic welding accessories?
One year Warranty for machines and 3 months warranty for tooling if it is not damaged by wrong operation.
During the warranty period, our factory will be responsible for repairing it for free or send the new parts to the customer to replace the broken parts for free. After the warranty time, our factory will repair it or send the new parts with charge at the cost price.
4. How can I get your price and catalog?
Please E-mail us or call us to give your contact information(your name, email address, company name, and website)
5. Can we be your agent in our country or city?
Of course. We are looking for agents or distributors who are willing to cooperate with us for a long business term.
6. How about payment?
100%T/T in advance for small orders;30%T/T in advance as a deposit;70%T/T paid before shipment for big orders.
7. Do you provide samples? Is it free or extra?
Yes, we could offer the sample and it's not free.
8. Could you make the ultrasonic set according to our special requirements?
Of course, please tell your product details and detailed requirement.
9. How about the quality of the ultrasonic welding accessories?
We have exported to many customers from all over the world in the past years, the feedback is good. Quality is the life of our company.
Detailed Photos:
