Product Details:
|
| Product Name: | Ultrasonic Welding Accessories For Fabrics Non-woven Welding Machine | Frequency: | 20KHz |
|---|---|---|---|
| Power: | 2000W | Weight(one Set): | 10.8kg |
| Power Supply: | AC220V 50Hz | Electric Current: | AC |
| Style: | Vertical | Auto-tuning Accuracy: | ±5HZ |
| Power Fluctuation: | ≤ 5% | Remote Terminal Dynamic Response Time: | ≤10ms |
| High Light: | 20KHz Ultrasonic Welding Set,Nonwoven Ultrasonic Welding Set,Nonwoven Welding Machine Accessories |
||

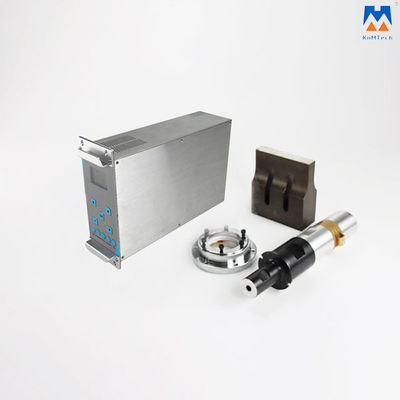

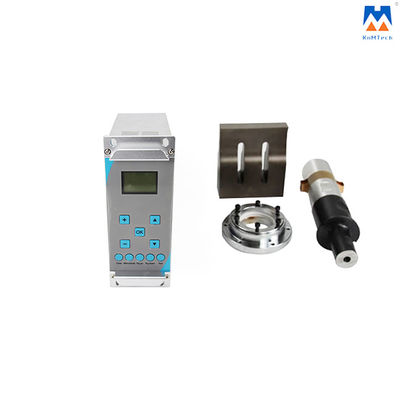

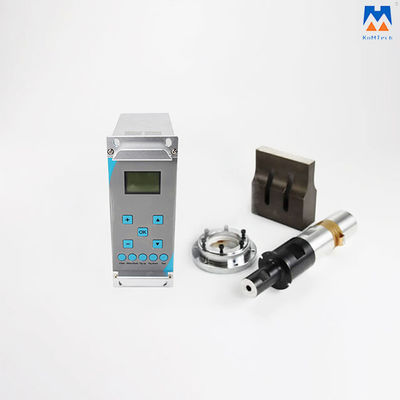

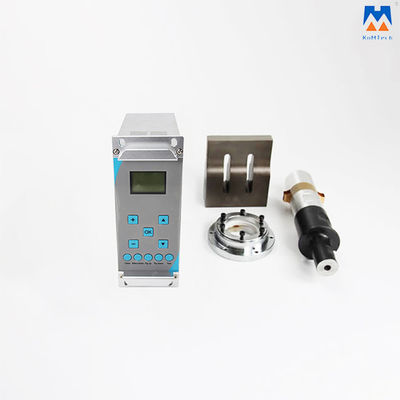

Ultrasonic Welding Accessories for Nonwoven Welding Machine
This type of ultrasonic set is widely used in mask-making machines and fabric welding machines. The generator is the newly upgraded type with a more compact design and a more stable operating system. The transducer is our classical type with a high reputation. The horn is customized as per the customer's demands and made of SKD11 steel with a hardness-treated surface. The flange is made of stainless steel.
Technical parameters:
| Dimension: | L90mm×W320mm×H230mm |
| Net Weight: | 4Kg |
| Output power: | 0-2000W |
| Output voltage: | 0-220V AC |
| Ambient temperature: | +5°C - +50°C |
| Harmonic Sinusoidal rate ≥97% | |
| Input power factor ≥80% | |
| Working frequency: | 20KHz |
| Power supply: | AC220V 50Hz |
| Working mode | Continuous |
| Horn frequency scope: | ±400HZ(take 15KHZ as an example, the horn frequency can be 14.40-15.20KHZ, auto-tuning) |
| Auto-tuning accuracy: | ±5HZ |
| Power fluctuation: | ≤ 5% |
| Remote terminal dynamic response time: | ≤10ms |

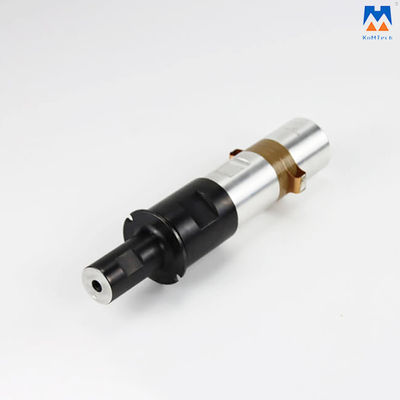

Transducer:
| Resonant Frequency | 20KHZ |
| Impedance | R:3~10Ω, Refers to the resistance measured by a similar instrument such as a resistance characteristic analyzer |
| Capacitance | CT:≤13nF, Free capacitance of 20KHz ultrasonic transducer |
| Working Mode | continuous working |
| Humidity Of Working Environment | relative humidity ≤85% (non-condensing) |
| Material | aluminum alloy for the converter, stainless steel for the booster. |
| Net weight of the main body | 2.6KG |
Horn:
| Dimension | Length 110mm ×Width 20mm(customizable) |
| Frequency | 20KHZ |
| Net weight of the main body | 3.1KG |
| Material | Steel(customizable) |

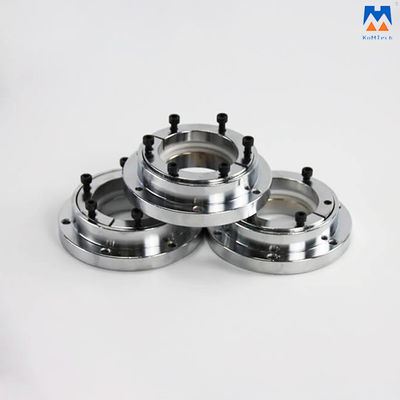

Flange:
| Frequency | 20KHZ |
| Inner Diameter | 33mm |
| External Diameter | 106mm |
| Thickness | 30mm |
| Material | Steel |
| Net weight of the main body | 1.1KG |
Features of the Generator:
1. Compact structure, simple and elegant appearance;
2. Easy to operate and flexible to move;
3. Wide frequency tracking range;
4. High precision of frequency tracing;
5. Large ultrasonic energy intermittent output with fierce power;
6. High control precision, safe and reliable
Application:
20KHz continuous ultrasonic welding set is widely applied for welding face masks, toys,table clothes,etc. that used in the daily necessities industries.
Detailed Photos:
