Product Details:
|
| Product Name: | Ultrasonic Generator Box | Frequency: | 40Khz |
|---|---|---|---|
| Output Power: | 1500W | Dimension(mm): | 300 X 360 X 150 |
| Weight: | 5kg | Uasge: | Ultrasonic Power Supply |
| High Light: | Digital Ultrasonic Generator Box,40kHz Ultrasonic Generator Box,1500w ultrasonic welding generator |
||

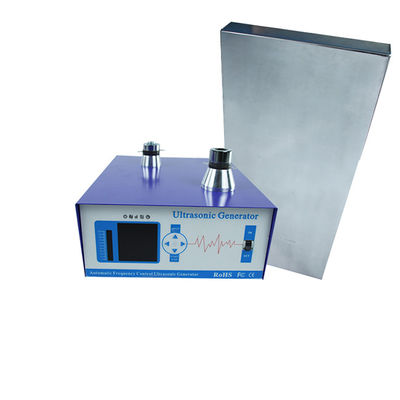

40kHz Digital Ultrasonic Generator Box For Ultrasonic Cleaning Machine
Ultrasonic welding generators, also known as ultrasonic power supplies, ultrasonic control boxes, ultrasonic generators, etc., are mainly used in ultrasonic welding machines, ultrasonic cleaning machines, and ultrasonic vibration plates. Today, with the rapid development of industrialization, ultrasonic cleaning has Completely replaced manual cleaning, suitable for electronics, hardware, circuits, ceramics, lighting, automotive industry, tableware disinfection, precision instruments, optics, and other industries. It has high efficiency, low cost, no dead ends, and practicality. Strong and other characteristics, are widely used by customers at home and abroad.
There are many elements that will affect generator current, at the high frequency working, choose the right frequency, and adjust the inductance core air gap, the generator's current working at the arrange.
Technical parameters:
| Dimension(L*W*H) | 300 x 360 x 150 |
| Time control | 0-59 minutes 59 seconds |
| Working volt | 220V 10% |
| Working current | 5.5A |
| Relative humidity | 40%--90% |
| Working frequency | 40KHz(28kHz,80 kHz,135KHz, etc)5% |
| Environment temperature | 0-40C° |
| Range of power control | 0-100% digital control and adjustment of 16 grades |
| Internal overtemperature protection | 65 C° |
| Attention | the appliance can not stay above the maximal current long time. |
Features:
1. Frequency display and adjusting
2. Current Display
3. Power adjusting
3. Remote control connector /PLC connecting
4. Output Power plug
5. High-frequency connector or CE connector (US, EU, or standard type)
Muti-Frequency Ultrasonic Generators Can be Provided :
| TYPE | POWER | FREQUENCY | SIZE |
| KM-28/40 | 300W-1200W | 28KHZ/40KHZ | 300x360x150 |
| KM-40/68 | 300W-1500W | 40KHZ/68KHZ | 300x360x150 |
| KM-38/80 | 300W-1200W | 38KHZ/80KHZ | 300x360x150 |
| KM-40/100 | 300W-1200W | 40KHZ/100KHZ | 300x360x150 |
| KM-40/130 | 300W-1200W | 40KHZ/130KHZ | 300x360x150 |
| KM-20/40/60 | 300W-1200W | 20KHz/40KHz/60KHz | 300x360x150 |
| KM-28/40/80 | 300W-1200W | 28KHz/40KHz/80KHz | 300x360x150 |
| KM-28/40/120 | 300W-1200W | 28KHz/40KHz/120KHz | 300x360x150 |
| KM-33/80/135 | 300W-1200W | 33KHz/80KHz/135KHz | 300x360x150 |
| KM-40/80/100 | 300W-1200W | 40KHz/80KHz/100KHz | 300x360x150 |
| KM-40/80/130 | 300W-1200W | 40KHz/80KHz/130KHz | 300x360x150 |
| KM-40/100/160 | 300W-1200W | 40KHz/100KHz/160KHz | 300x360x150 |
| KM-44/77/100 | 300W-1200W | 44K/Hz77KHz/100KHz | 300x360x150 |
| KM-40/77/100/170 | 300W-1200W | 40KHz/77KHz/100KHz/170KHz | 300x360x150 |
FAQ:
1. What's your MOQ?
Usually, we don't limit a MOQ for testing, just decide the QTY by yourself.
2. How about your delivery time?
Usually, we have some stock for trial or small orders, so just deliver them within 7 days, while, 15-25 days for large orders and customized production line.
1-2 units we could send by EXPRESS(DHL,UPS,FEDEX,TNT,EMS), heavyweight more than 50kg, we suggest to use sea freight LCL or by air
3. What's the warranty of your ultrasonic welding generators?
One year Warranty with none human damage.
In this period factory will be responsible for repairing it for free or the factory will send the new parts to the customer instead of the broken parts for free. After the warranty time, the factory will repair it or send the new parts at the cost price.
4. How can I get your price and catalog?
Please E-mail us or call us to give your contact information(your name, email address, company name, and website)
5. Can we agent your ultrasonic generators in our country or city?
Of course. We are looking for sole agents who are willing to cooperate with us for a long business term.
6. How about payment?
100%T/T in advance before shipment.
7. Do you provide samples? Is it free or extra?
Yes, we could offer the sample and it's not free.
8. Could you make it according to our special requirements?
Of course, please tell us your idea or your application.
9. How about the quality?
We have exported to many other customers from all over the world, the feedback is good, quality ranks first in our company.

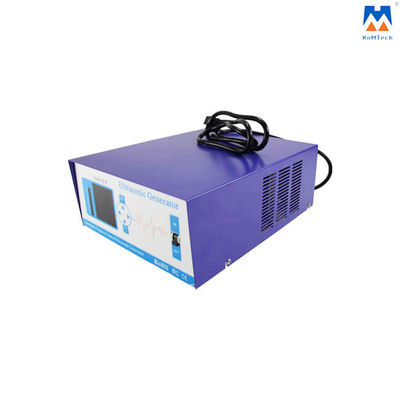

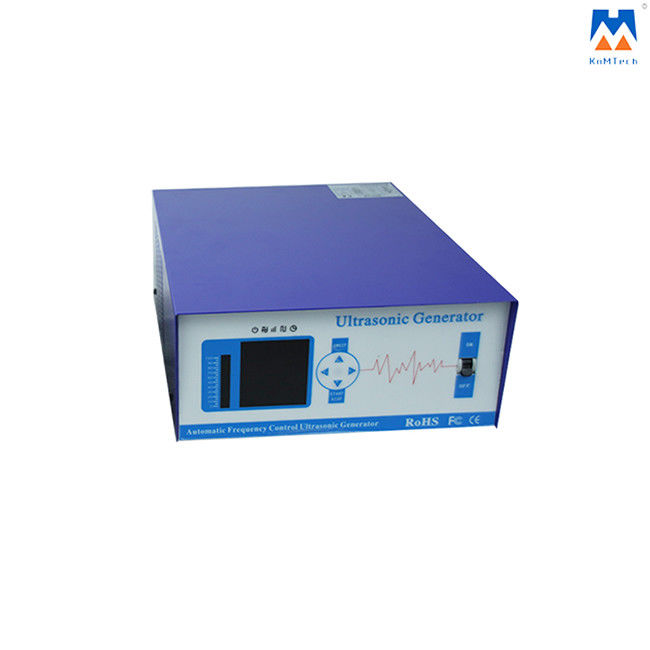

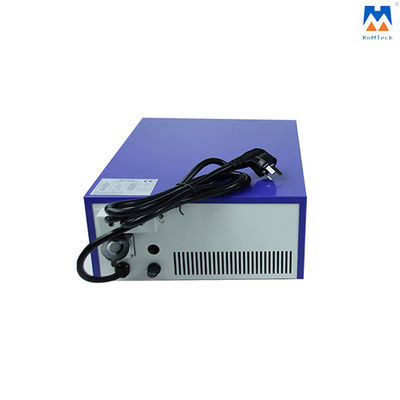

Detailed Photos:
