Product Details:
|
| Product Name: | Ultrasonic Generator For Cleaning | Frequency: | 20-160Khz |
|---|---|---|---|
| Dimension(mm): | L323*W214*H117 | Condition: | New |
| Weight: | 6.5kg | Uasge: | Ultrasonic Cleaning |
| High Light: | Digital Ultrasonic Cleaner Generator,Auto Frequency Tracking Ultrasonic Generator,160Khz Ultrasonic Cleaner Generator |
||

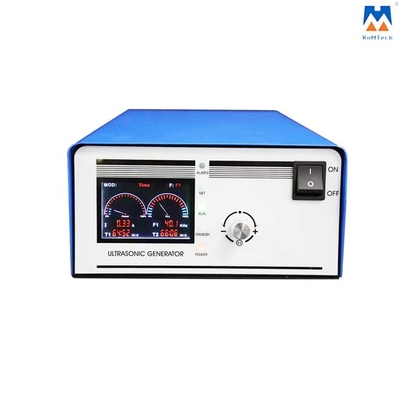

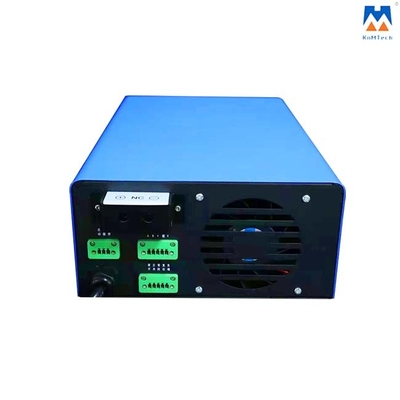

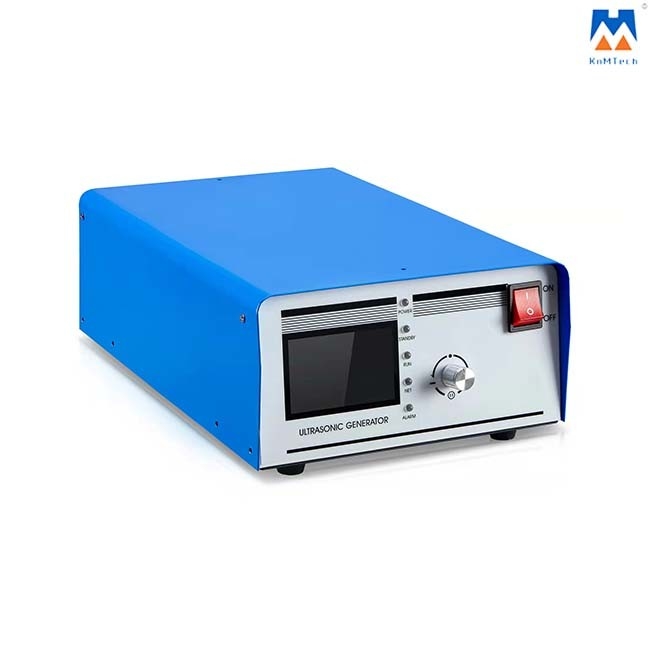

Digital Ultrasonic Cleaner Generator With Auto Frequency Tracking For Industry Cleaning
Digital Ultrasonic Cleaner Generator With Auto Frequency Chasing For Industry Cleaning
An ultrasonic generator is a kind of equipment that converts the city electricity to the transducer with a high-frequency alternating current to drive the transducer. It is an important part of the high-power ultrasonic system. This automatic frequency tracking ultrasonic cleaning machine power supply is with constant power output, power infinite precision, and adjustable, using a large-screen LCD display, so that the parameters are more intuitive, with corrosion resistance and long service life.
Technical parameters:
| Product Name | Ultrasonic Generator for Cleaning |
| Current | 0-10A |
| Power Range | 0-3000W |
| Frequency tracking accuracy | 1HZ |
| Frequency tracking Range | 5000HZ |
| Frequency Range | 20-160KHZ |
| Working mode | Constant power output |
| Weight | 6.5kg |
| Dimension(mm) | L323*W214*H117 |
Features:
1. Frequency display and auto frequency tracking;
2. Phase-shifting full-bridge technology, large output power, stable work;
3. Debugging free, power is infinitely precise and adjustable, easy to use;
4. With frequency division scanning function, the frequency can be switched, excellent cleaning effect, with a wider range of applications;
5. With current stability ring, constant output power, with over current protection, safe and reliable;
6. Professional cooling air duct design ensures the heat dissipation effect and anti-corrosion performance of the product, and improves the stability and service life of the product;
7. Unique appearance design, with color segment code display LCD segment code, display screen, and single knob button operation, beautiful radian without losing dynamic, simple operation, full sense of science and technology.
Application:
The ultrasonic cleaning generator can be used for industrial cleaning machines with a wide range of applications, such as:
1. Machinery industry: the removal of antirust grease; Measuring tools cleaning; Degreasing and rust removal of mechanical parts; Engine, carburetor, and auto parts cleaning; Filter, filter screen dredge cleaning, etc. Especially in the railway industry, it is very suitable for deoiling and decontamination of train carriage air conditioning, rust removal, deoiling, and rust prevention of locomotive parts.
2. Surface treatment industry: oil removal and rust removal before plating; Ion plating before cleaning; Phosphating treatment; Removal of carbon accumulation; Removal of oxide scale; Remove polishing paste; Metal workpiece surface activation treatment, etc.
3. Instrumentation industry: precision parts of high cleanliness before assembly cleaning.
4. Electronic industry: printed circuit board in addition to rosin, welding spot, mechanical and electronic parts cleaning.
5. Medical industry: medical equipment cleaning, disinfection, sterilization, experimental utensils cleaning, etc.
6. Semiconductor industry: semiconductor wafer high cleanliness cleaning.
7. Watch and jewelry industry: cleaning sludge, dust, oxide layer, polishing paste, etc.
8. Chemical and biological industry: cleaning and descaling of experimental utensils.
9. Optical industry: optical devices in addition to oil, sweat, dust, etc.
10. Textile printing and dyeing industry: cleaning textile spindles, spinnerets, drawing boards, etc.
11. Petrochemical industry: metal filter cleaning dredge, chemical containers, exchanger cleaning, etc.
12. Others: liquid defoaming in papermaking and some food fields
