Product Details:
|
| Product Name: | Ultrasonic Cleaning Transducer Cleaner | Power Range(W): | <=100W |
|---|---|---|---|
| Frequency: | 28Khz | Weight(g): | 500g |
| Resonance Impedance: | ≤20Ω,>=10Ω | Static Capacity (pF)±10%: | 4000pF |
| High Light: | Industrial Cleaning Ultrasonic Piezoelectric Transducer,28KHz Ultrasonic Piezoelectric Transducer,Industrial Cleaning 28KHz Ultrasonic Transducer |
||

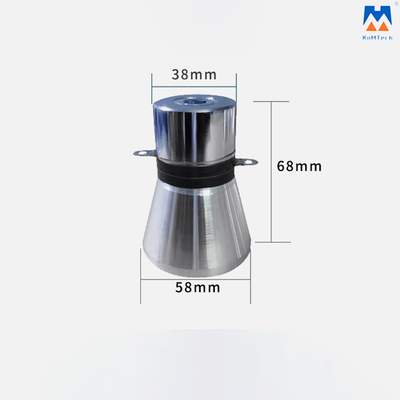

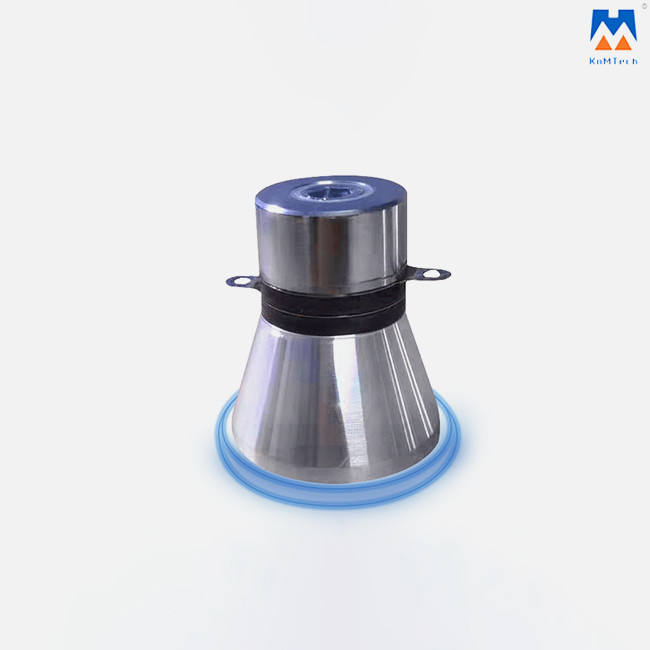

Ultrasonic Transducer Piezoelectric Industrial Cleaning Transducer 28KHz
28khz Ultrasonic Cleaner Piezoelectric Transducer
The ultrasonic transducer realizes the conversion of electrical energy and mechanical energy (acoustic vibration) through the piezoelectric effect of the piezoelectric ceramic. It is a device that is amplified by the front and rear radiation cover blocks matching the acoustic impedance. Low-frequency ultrasonic cleaning is generally used in the case of large parts surface or high adhesion to the workpiece surface, this cleaning is easy to cause damage and corrosion on the workpiece surface. Therefore, parts with higher requirements on the workpiece surface are not suitable for using lower frequencies. And the low frequency, the noise is correspondingly large. High-frequency ultrasonic has a strong penetration, can be used to clean the surface of the surface requirements of high finish or complex, blind holes more parts.
Technical parameters:
| Product Name | ultrasonic piezoelectric transducer cleaner |
| Frequency | 28KHz |
| Power | 100W |
| Capacitance(PF) | 4000 |
| Resonance resistance(Ω) | <=20 |
Features:
1. Vibrating surface sandblasting treatment;
2. Easier to fit, less heat generation, more stable performance;
3. Industrial quality, good heat resistance, stable performance;
4. High amplitude, long life;
Application:
The ultrasonic transducer can be used for ultrasonic cleaning machine that has been used in different areas as shown below, and the ultrasonic Cleaning machine use scope: mechanical hardware accessories, electroplating plant electroplating equipment, glasses, jewelry, watches, catering tableware, electronic components, circuit boards, chemical, automobile, ship, mobile phone lenses, optical lenses, medical equipment, mining and so on.
