Product Details:
|
Product Name: | Ultrasonic Transducer For Cleaning Tank | Power Range(W): | <=60W |
---|---|---|---|
Frequency: | 25Khz | Weight(g): | 500g |
Resonance Impedance: | ≤20Ω,>=10Ω | Static Capacity (pF)±10%: | 5400pF |
High Light: | 60W 25KHz Ultrasonic Transducer,25kHz Ultrasonic Transducer,High Power Ultrasonic Transducer |
25KHz Ultrasonic Cleaning Transducer For Engine Degreasing Cleaning Tank

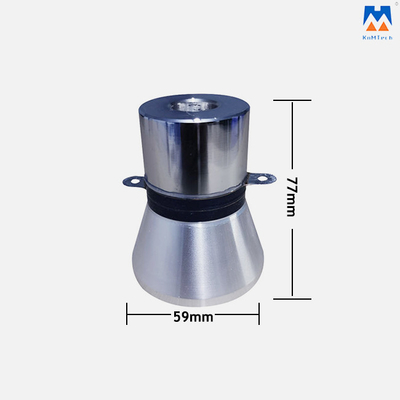

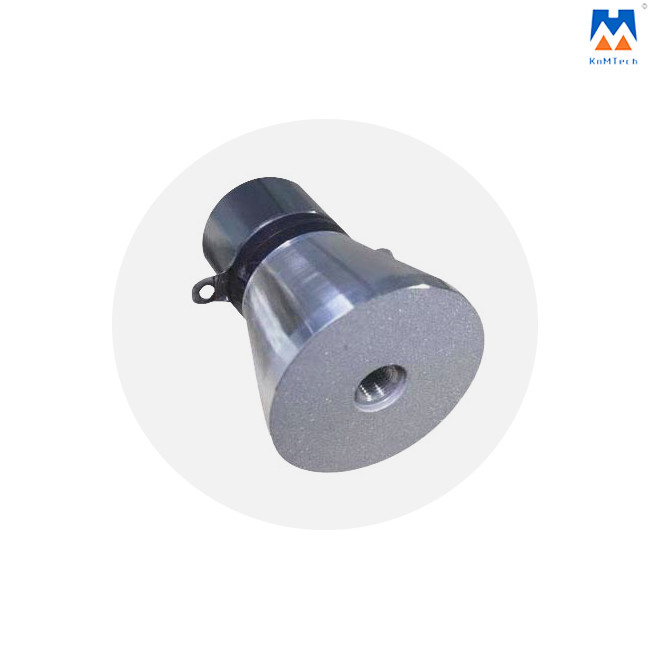

25KHz Ultrasonic Transducer for Cleaning Tank
In the ultrasonic cleaning machine, the ultrasonic transducer is the core component. We call the whole after the ultrasonic transducer is connected with the horn as a vibrator. The ultrasonic transducer determines the ultrasonic effect to a great extent, so it's very important for the ultrasonic cleaning system.
Technical parameters:
Product Name | Ultrasonic Cleaner Transducer |
Frequency | 25KHz |
Power | 60W |
Capacitance(PF) | 5400 |
Resonance resistance(Ω) | 10-20 |
Features:
1. Vibrating surface sandblasting treatment;
2. Easier to fit, less heat generation, more stable performance;
3. Industrial quality, good heat resistance, stable performance;
4. High amplitude, long life;
Application:
The ultrasonic transducer can be used for ultrasonic cleaning machine that has been used in different areas as shown below:
