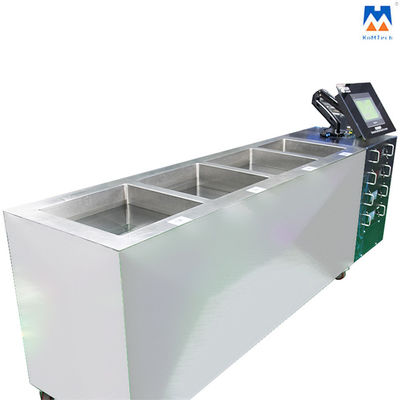

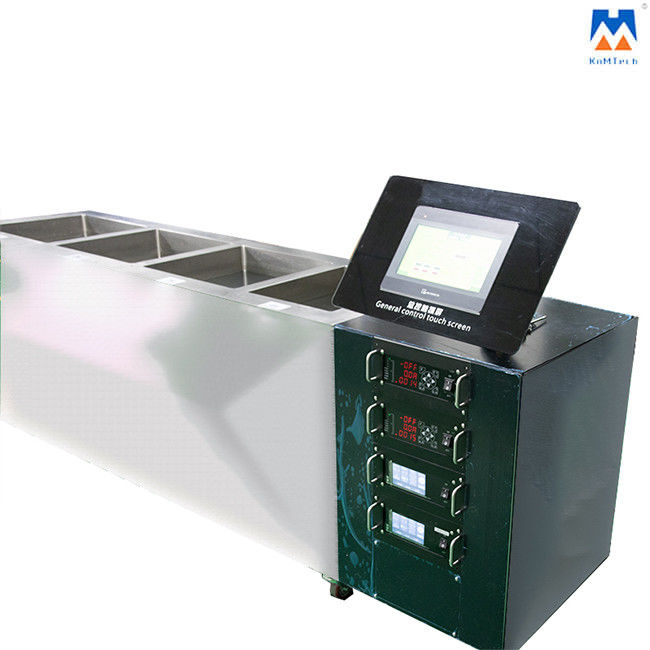

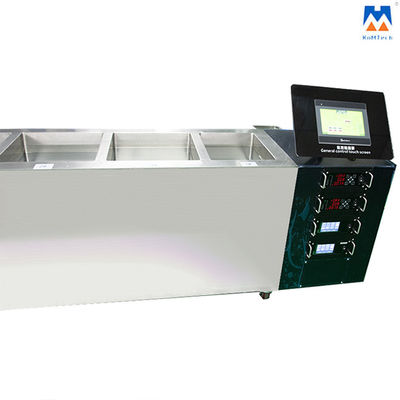

PLC Control 40kHz Ultrasonic Cleaning Machine With Heating Function

Ultrasonic Cleaning Machine with Heating Function 40kHz

Ultrasonic Cleaning Machine

The principle of ultrasonic cleaning machine is mainly through the transducer, the ultrasonic frequency power source of the sound energy is converted into mechanical vibration, radiate ultrasonic waves into the cleaning fluid in the tank by the ultrasonic cleaning tank wall, the microbubbles in the liquid inside the tank are able to keep vibrating under the action of sound waves. The vibration of the microbubbles destroys the adsorption of the dirt and the surface of the cleaning part, causing the fatigue damage of the dirt layer and being dissociated, and the vibration of the gas bubble washes the solid surface.

Technical Parameters:

Ultrasonic Cleaning Machine:

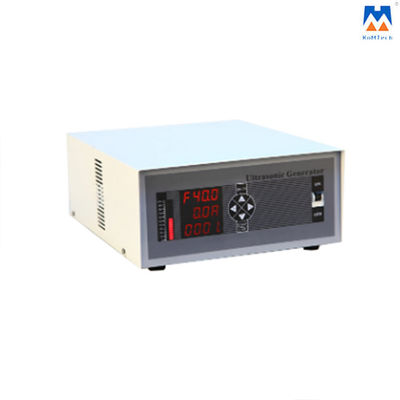

Ultrasonic Cleaning Machine-Generator:

Different models of this same series generator are available:

Features of Generator:

1. It is driven by high-power devices imported from Japan, and its output power is strong. With its unique control circuit, the ultrasonic density is greatly improved, the cleaning work is more uniform, and the cleanliness is higher;
2. Overheat protection, over current protection, and short circuit protection;
3. The exterior design is more concise and fashionable;
4. With the function of remote switch machine, it is convenient to let the automatic machine controlled through PLC control;
5. Timed shutdown function,0-60 minutes adjustment, easy to use
6. With sweep frequency working mode, it can imitate throwing effect, so that the cleaning effect is more prominent;
7. Full digital design, keying frequency regulation, so that the frequency precision is higher, Play to the efficiency of the transducer;
8. Automatic fault detection function;
9. With 485 communication, it can be directly remote-controlled by touch screen or computer PLC;
10. With factory working time limit function, let your customers control the equipment at will;
11. With a unique constant current function, no matter how the load changes, it can ensure the output constant
12. With temperature control function, so that the tank temperature can be centralized to an interface to control (optional);
13. With the function of real-time detection of machine temperature, it can monitor the working temperature of equipment in real-time;
14. Unique power regulation function, it is easy to intuitively adjust to the desired current power;
15. With the display of cumulative working time, it is convenient to observe the working time of the equipment;
16. Unique power indicator display, it is convenient for the current use of power ratio value;
17. Fault alarm function;
18. Cleaning mode can be set;
19. Working mode setting, it can be set to intermittent work;
20. Display mode setting, it can display power or desired frequency, current, etc;
21. The full-bridge circuit architecture design makes the conversion efficiency give a full play;

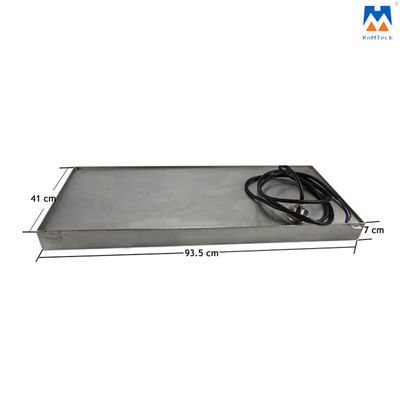

Features of vibration plate:

1. All stainless steel structure, according to different needs can be made into bottom vibration type side vibration type and top vibration type three to meet different cleaning requirements;
2. Product materials 304.2.0 mm, 316.2.0 mm, 304.2.5 mm, mm, 316.2.5 316.3.0, titanium plates of 2.5 mm can be chosen, the above material for actual thick material, does not provide other material thickness, except for special cases;
3. The vibration frequency of plate: 17KHz, 21kHz, 25kHz, 28kHz, 40kHz, 68kHz, 80kHz, 100kHz, 120kHz,temporarily no double-frequency models

Application:

The ultrasonic cleaning machines are widely used in many industries, they can be used for accessories, electronic products, machinery, hardware, accessories, golf balls, household use, necklaces, earrings, bracelets, razor heads, nibs, coins, pins, etc

FAQ:

1. What's the MOQ of the ultrasonic cleaning machine?
Usually, we don't limit a MOQ for testing, just decide the QTY by yourself.
2. How about your delivery time of the ultrasonic cleaning machine?
Usually, we have some stock for trial or small orders, so just deliver them within 5 days, while, 15 days for large order and customized production lines.
1-2 units we could send by EXPRESS(DHL, UPS, FedEx, TNT, EMS), heavyweight more than 50kg, we suggest to use sea freight LCL or by air
3. What's the warranty of your ultrasonic cleaning machine?
One year Warranty with none human damage.
In this period factory, will responsible for repair fix it for free or the factory will send the new parts to the customer instead of the broken parts for free. After warranty time, the factory will repair fix it or send the new parts at the cost price.
4. How can I get your price and catalog?
Please E-mail us or call us to give your contact information(your name, email address, company name, and website)
5. Can we agent your ultrasonic cleaning machine in our country or city?
Of course. We are looking for a sole agent in the country who has the willingness to cooperate with us for a long business term.
