Product Details:
|
| Product Name: | 25kHz Ultrasonic Transducer | Weight(g): | 500g |
|---|---|---|---|
| Frequency: | 25Khz | Resonance Impedance(Ω): | ≤20,>=10 |
| Static Capacity (pF)±10%: | 5400 | Output Power(W): | 60W |
| High Light: | 25KHz Ultrasonic Cleaning Transducer,Ultrasonic Cleaning Machine 25KHz Transducer,60W Ultrasonic Cleaning Transducer |
||

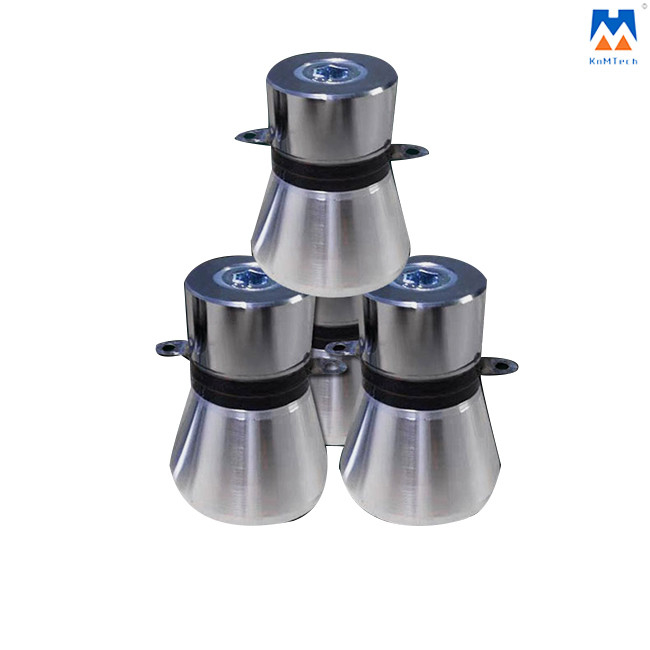

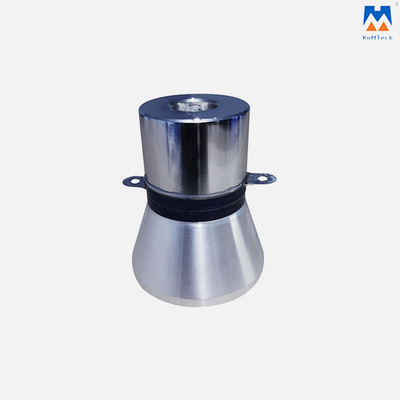

25KHz Ultrasonic Cleaning Machine Parts Ultrasonic Transducer
Using the piezoelectric effect to realize the conversion of electric energy and sound energy is called the piezoelectric transducer, which is composed of a radiation head electrode sheet, metal cover, prestressed screw (screw), piezoelectric wafer, and insulating tube. It is widely used in industrial high-power cleaning types of equipment.
Technical parameters:
| Product Name | 25kHz Ultrasonic Transducer |
| Frequency | 25KHz |
| Power | 60W |
| Capacitance(PF) | 5400 |
| Resonance resistance(Ω) | 10-20 |
Features:
1. Vibrating surface sandblasting treatment;
2. Easier to fit, less heat generation, more stable performance;
3. Industrial quality, good heat resistance, stable performance;
4. High amplitude, long life;
Application:
The ultrasonic transducer can be used for ultrasonic cleaning machine that has been used in different areas as shown below:
