Product Details:
|
| Product Name: | Ultrasonic Cleaner Transducer | Power Range(W): | <=60W |
|---|---|---|---|
| Frequency: | 40Khz | Weight(g): | 0.5kg |
| Resonance Impedance: | ≤20Ω | Static Capacity (pF)±10%: | 3800pF |
| High Light: | 40KHz Ultrasonic Cleaning Transducer,Industrial Cleaning 40KHz Ultrasonic Transducer,60W 40KHz Ultrasonic Transducer |
||

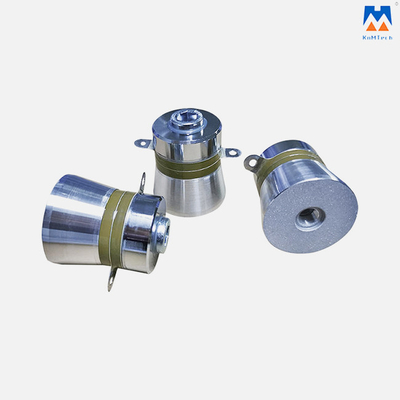

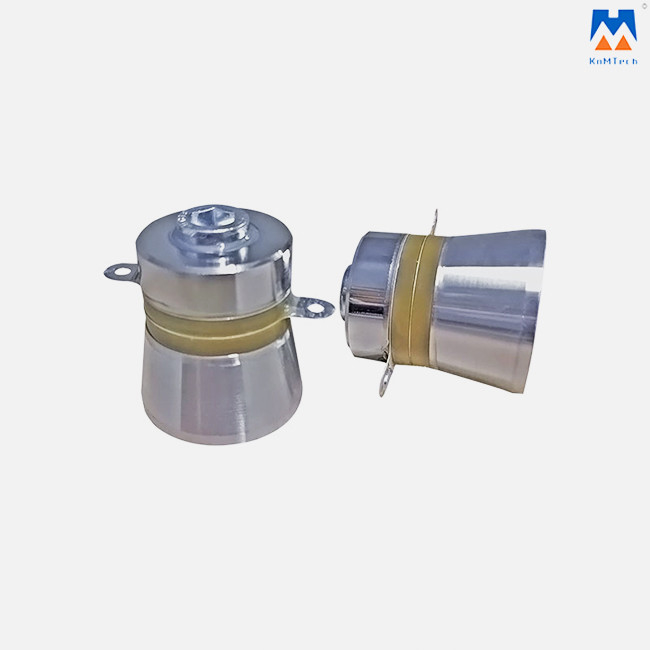

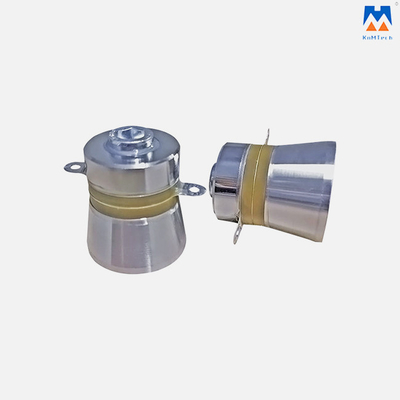

40khz Industrial Ultrasonic Cleaner Transducer
The 40KHz ultrasonic transducer is used for ultrasonic cleaning machines, which is easy to install and with long service life.
The following operations are prohibited for industrial or experimental ultrasonic cleaning:
1, do not install the ultrasonic oscillator, directly placed in the air test.
2. It is forbidden to start ultrasonic water sinks without water.
3. It is forbidden to collide and move when ultrasonic equipment is working.
4. It is forbidden to contact corrosive liquid directly with an ultrasonic vibrator.
5. Other common prohibited conditions. Such as the use of flammable and explosive lotion, electricity safety.
Problems of ultrasonic transducer failure:
1, transducer vibrator ignition, ceramic materials broken, can be combined with the naked eye and megohmmeter inspection, general. As a measure of emergency treatment, individual damaged oscillators can be disconnected without affecting other oscillators' normal use.
2, Vibrator degumming: our transducer is the use of cementation, screw fastening double guarantee process, in general, this situation will not occur, if there is, remove reinstall or can only be broken line. Avoid vibration off. The most effective way is to pay attention not to impact the vibration surface in ordinary use.
3, Vibration surface perforation: the transducer with full load service life is too long may appear vibration surface perforation, this is due to the vibration surface of the stainless steel plate for a long time high-frequency vibration fatigue, it is recommended to replace the stainless steel plate.
4, During the spring and autumn season the machine startup damage. The solution is to place the machine in a dry place, or sometimes with a hairdryer to drive tide.
Technical parameters:
| Product Name | Ultrasonic Cleaner Transducer |
| Frequency | 40KHz |
| Power | 60W |
| Capacitance(PF) | 3800 |
| Resonance resistance() | <=20 |
| Weight(kg) | 0.3kg |
| Dimension(mm) |
45*51 |
Features:
1. Vibrating surface sandblasting treatment;
2. Easier to fit, less heat generation, more stable performance;
3. Industrial quality, good heat resistance, stable performance;
4. High amplitude, long life;
Application:
The ultrasonic transducer can be used for cleaning machines that have been used in different areas as shown below, and the use scope: mechanical hardware accessories, electroplating plant electroplating equipment, glasses, jewelry, watches, catering tableware, electronic components, circuit boards, chemical, automobile, ship, mobile phone lenses, optical lenses, medical equipment, mining and so on.
