Product Details:
|
Product Name: | Ultrasonic Generator For Cleaner | Frequency: | 20-160Khz |
---|---|---|---|
Dimension(mm): | L323*W214*H117 | Weight: | 6.5kg |
Frequency Chasing Range: | 5000HZ | Power Range: | 0-3000W |
High Light: | 160Khz Digital Ultrasonic Generator,Cleaning Digital Ultrasonic Generator,Constant Output Digital Ultrasonic Generator |

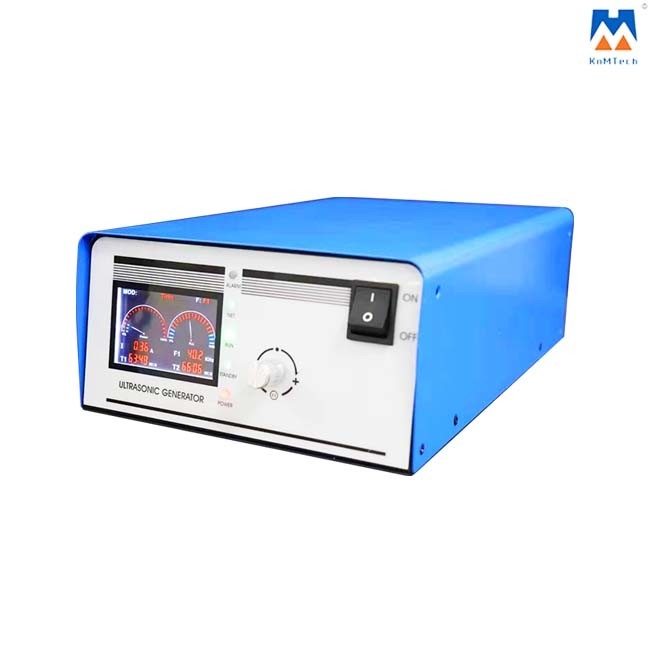

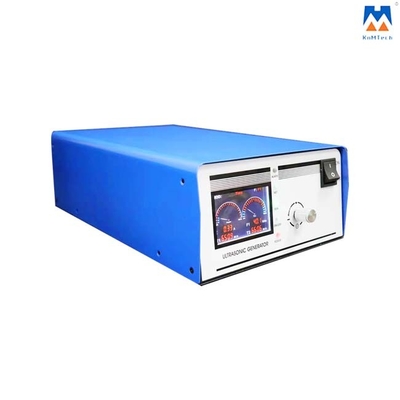

Digital Ultrasonic Generator With Constant Output Power For Cleaning Industry
The ultrasonic generator is an important part of the high-power ultrasonic system. The automatic frequency tracking ultrasonic cleaning machine generator is with constant power output, power infinite precision, and adjustable, and can match the ultrasonic transducer Intelligently. Using a large-screen LCD display, so that the parameters are more intuitive, with corrosion resistance, durable, and more digital.
Technical parameters:
Product Name | Ultrasonic Generator Box |
Current | 0-10A |
Power Range | 0-3000W |
Frequency tracking accuracy | 1HZ |
Frequency tracking Range | 5000HZ |
Frequency Range | 20-160KHZ |
Working mode | Constant power output |
Weight | 6.5kg |
Dimension(mm) | L323*W214*H117 |
Features:
1. Frequency display and auto frequency tracking;
2. Phase-shifting full-bridge technology, large output power, stable work;
3. Debugging free, power is infinitely precise and adjustable, easy to use;
4. With frequency division scanning function, the frequency can be switched, excellent cleaning effect, with a wider range of applications;
5. With current stability ring, constant output power, with over current protection, safe and reliable;
6. Professional cooling air duct design ensures the heat dissipation effect and anti-corrosion performance of the product, and improves the stability and service life of the product;
7. Unique appearance design, with color segment code display LCD segment code, display screen, and single knob button operation, beautiful radian without losing dynamic, simple operation, full sense of science and technology.
Application:
1. Microelectronic monocrystalline silicon wafer, integrated circuit manufacturing process;
2. Clean electronic and electrical components - resistors, capacitors, electronic equipment, magnetic equipment, low voltage electrical products;
3. Metal stamping - after stamping, remove oil, metal products rust, dust, and dirt;
4. Machine parts - Machined metal parts used to remove oil, chips, rust, dust, and dirt;
5. Household appliances - Manufacturing household appliances, such as pipes, air conditioners, refrigerator accessories, water heaters, cookers, electric cookers, induction cookers, electric fans, juicers, electric irons, and other metal parts
6. Electroplating, vacuum electroplating - stripping, oxidation coating, degreasing, polishing wax, polishing paste, and other cleanings before electroplating;
7. Watches, glasses, jewelry - after grinding and polishing in the manufacturing process, the metal shell, watchband, moving parts, spectacle frame, jewelry can be accurately cleaned.
