Product Details:
|
| Product Name: | Ultrasonic Generator For Cleaning | Frequency: | 20-160Khz |
|---|---|---|---|
| Dimension(mm): | L323*W214*H117 | Weight: | 7kg |
| Power Range: | 0-3000W | Condition: | New |
| Current: | 0-10A | Uasge: | Ultrasonic Power Supply |
| High Light: | ultrasonic cleaner generator,25kHz Ultrasonic Generator,25KHz Ultrasonic Cleaner Spare Parts |
||

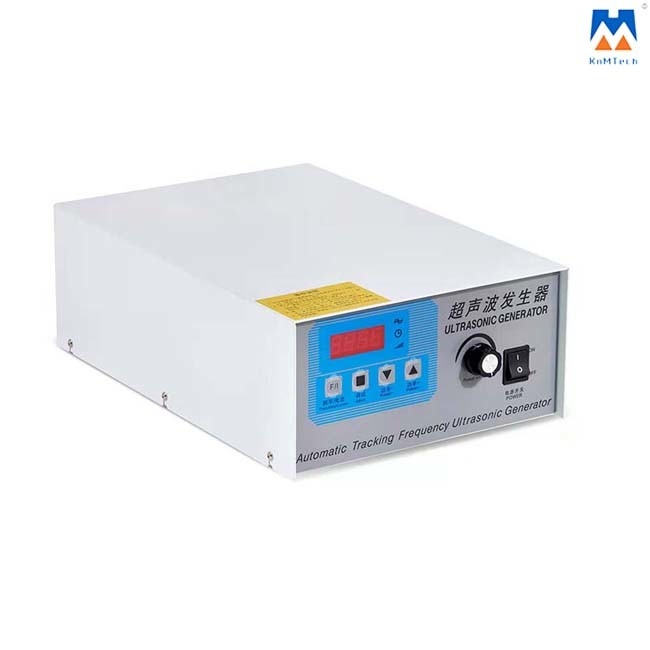

Digital Ultrasonic Cleaner Spare Parts Generator Box For Industry Cleaning
An ultrasonic generator is a kind of equipment that converts the city electricity to the transducer with a high-frequency alternating current to drive the transducer. It is an important part of the high-power ultrasonic system. This is an automatic frequency sweeping ultrasonic generator for ultrasonic cleaners, power with infinite precision and adjustable, and supports standard MODBUS protocol 485 communication; One host can control the work and data exchange of multiple products at the same time; The maximum operating frequency can be up to 160KHz.
Technical parameters:
| Input Voltage | 220V AC,50/60HZ 110V optional |
| Input Power | 300-3000W available |
| Input Current | 0-10A |
| Frequency | 20-40K(Conventional models) 40-120K(High Frequency) |
| Working Temperature | 0-45°C |
| Dimension(mm) | 370*280*150 |
| Weight | 7kg |
Features:
1 Debugging free, power infinite precision adjustable, easy to use;
2 Phase-shifting full-bridge technology, large output power, stable work;
3 Frequency can be switched, a wider range of applications;
4 Over current protection, safe and reliable;
5 Built-in frequency sweep function, excellent cleaning effect;
6 Built-in frequency segmentation function.
Application:
The ultrasonic generator can be used for industrial cleaning machines with a wide range of applications, such as:
1. Machinery industry: the removal of antirust grease; Measuring tools cleaning; Degreasing and rust removal of mechanical parts; Engine, carburetor, and auto parts; Filter, filter screen dredge, etc. Especially in the railway industry, it is very suitable for deoiling and decontamination of train carriage air conditioning, rust removal, deoiling, and rust prevention of locomotive parts.
2. Surface treatment industry: oil removal and rust removal before plating; Ion plating; Phosphating treatment; Removal of carbon accumulation; Removal of oxide scale; Remove polishing paste; Metal workpiece surface activation treatment, etc.
3. Instrumentation industry: precision parts of high cleanliness.
4. Electronic industry: printed circuit board in addition to rosin, welding spot, mechanical and electronic parts.
5. Medical industry: medical equipment, disinfection, sterilization, experimental utensils, etc.
6. Semiconductor Industry: semiconductor wafer high cleanliness.
7. Watch and jewelry industry: sludge, dust, oxide layer, polishing paste, etc.
8. Chemical and biological industry: descaling of experimental utensils.
9. Optical industry: optical devices in addition to oil, sweat, dust, etc.
10. Textile printing and dyeing industry: textile spindles, spinnerets, drawing boards, etc.
11. Petrochemical industry: metal filter dredge, chemical containers, exchangers, etc.
12. Others: liquid defoaming in papermaking and some food fields.
